Industrial Compact Embedded Computer mini box PC watch doger timer
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD-MNPC-xxxx-M1204 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, PayPal(173515844@qq.com) |
| Supply Ability | 10000PCS/Month |
Product Details
| CPU | Intel J6412,N97 & 4 Th ~ 12 Th Gen U-Series Core TM I3/i5/i7 Processors | Memory | The Memory Type Is Determined By The CPU Mode |
|---|---|---|---|
| Ethernet | 2 × GbE RJ45 Intel I210-AT （Optional 4× LAN) | Storage | 1 × M.2 2280 SSD ( SATA/NVMe )1 × MSATA |
| Watchdog Timer | 255 Levels | OS Supported | Win 10, Win 11 |
| Construction | Die-Casting Aluminum Chassis | ||
| Highlight | compact embedded industrial PC,mini box PC watchdog timer,industrial embedded computer watchdog |
||
Product Description
Industrial Compact Embedded Computer mini box PC watch doger timer
Features
◼Supports Intel® J6412,N97 & 4 th ~ 12 th Gen U-Series Core TM i3/i5/i7 Processors
◼Flexible CPU options
◼VGA+HDMI Dual Displays
◼M.2 2280 SSD + mSATA
◼9~36V Wide Range DC Input
SPECIFICATION
| System | CPU | lntel® J6412, N97 & 4 th~12 th Gen U-Series Core TM i3/i5/i7 |
| Memory | The memory type is determined by the CPU model | |
| Storage | 1 × M.2 2280 SSD ( SATA/NVMe ) 1 × mSATA | |
| LAN | 2 x GbE RJ45 Intel i225V/i226V | |
| OS Support | Win 10,Win 11,Linux | |
| Input / Output | USB Ports | 4 × USB3.0, 2 × USB2.0 ( Internal PIN Header) |
| COM Port | DB-9 COM1/2 RS-232/485/422 | |
| Power input | 1×DC 12V-19V input | |
| Power Switch | 1×Power Switch | |
| Headphone Jack | 1×Headphone jack | |
| Microphone Jack | 1×Microphone jack | |
| Expansion Slot | 1 × M.2 2232 WiFi | |
| chassis material | Aluminum + ABS | |
| Operating Temperature | -20~60℃ | |
| Storage Temperature | -30~70℃ | |
| Storage Humidity | 10%~90% @30℃, Non Condensing | |

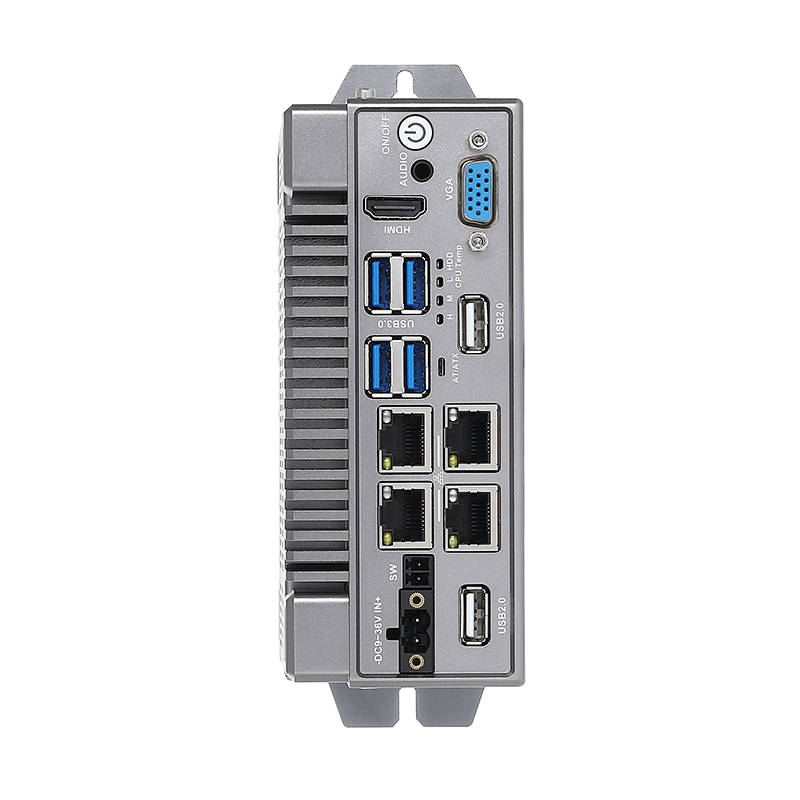

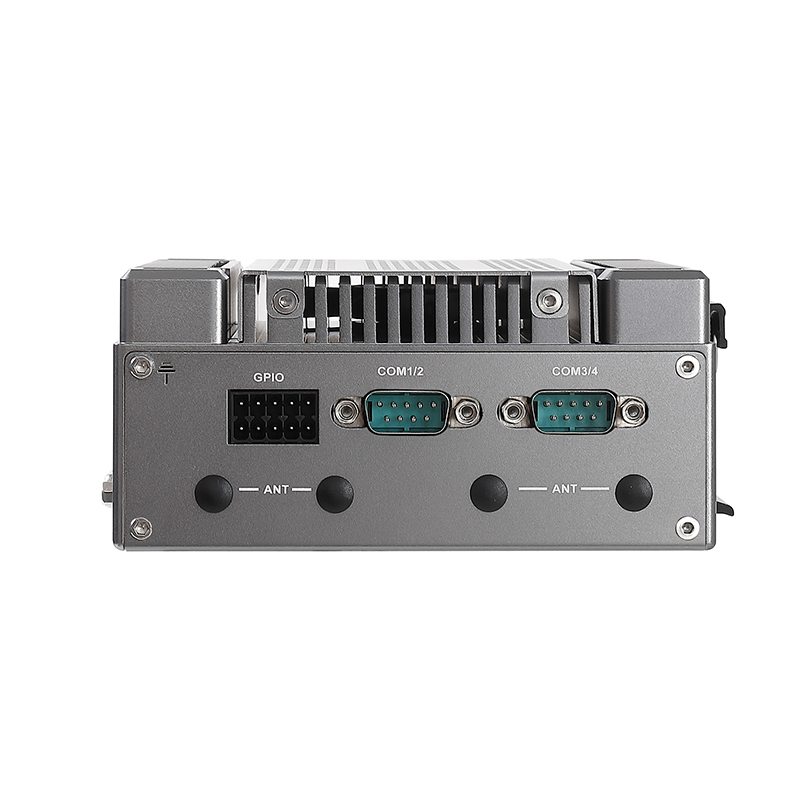

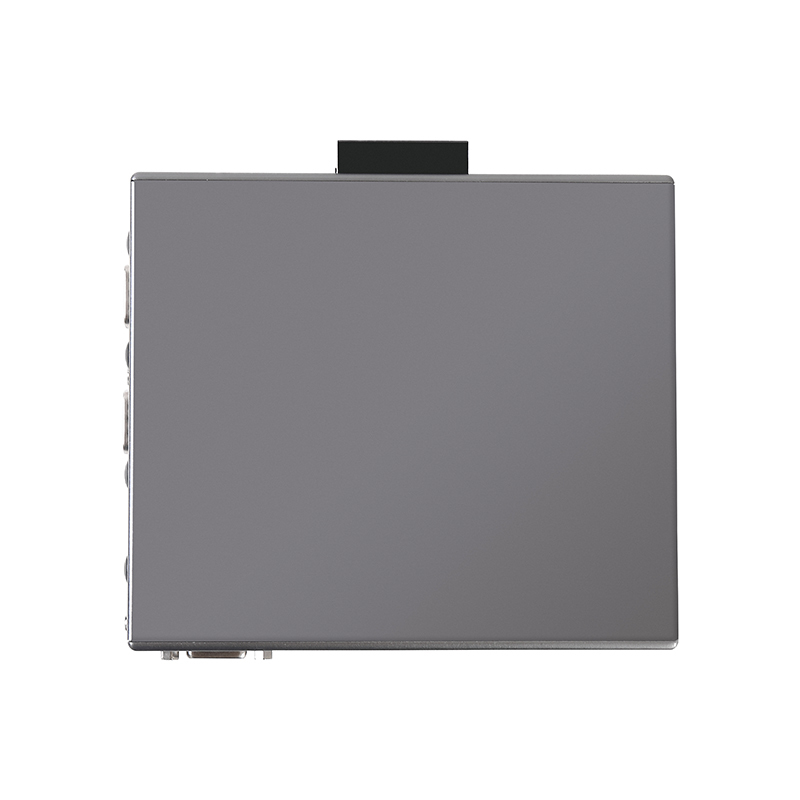

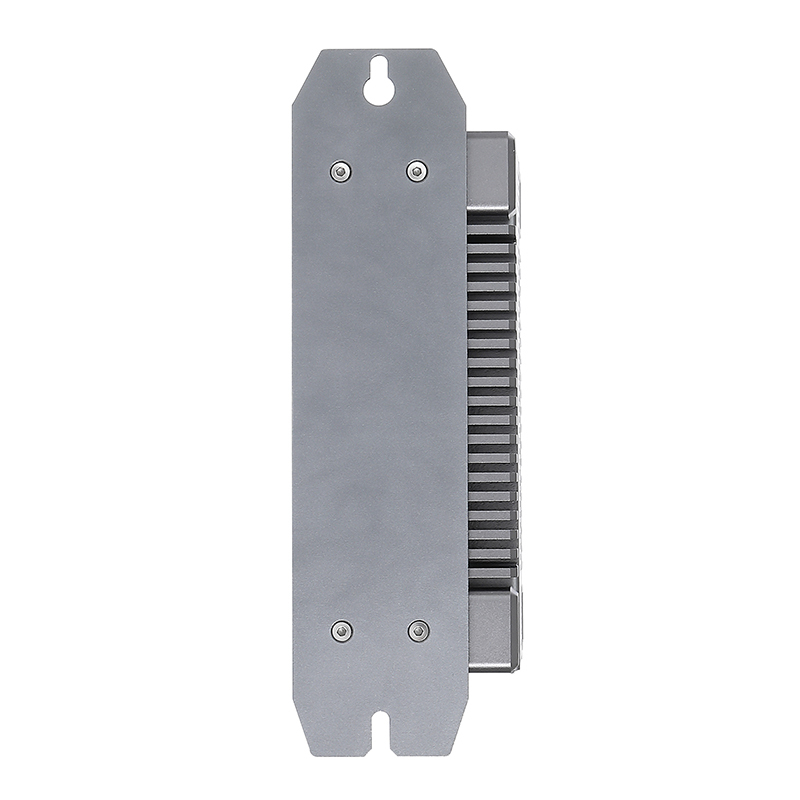

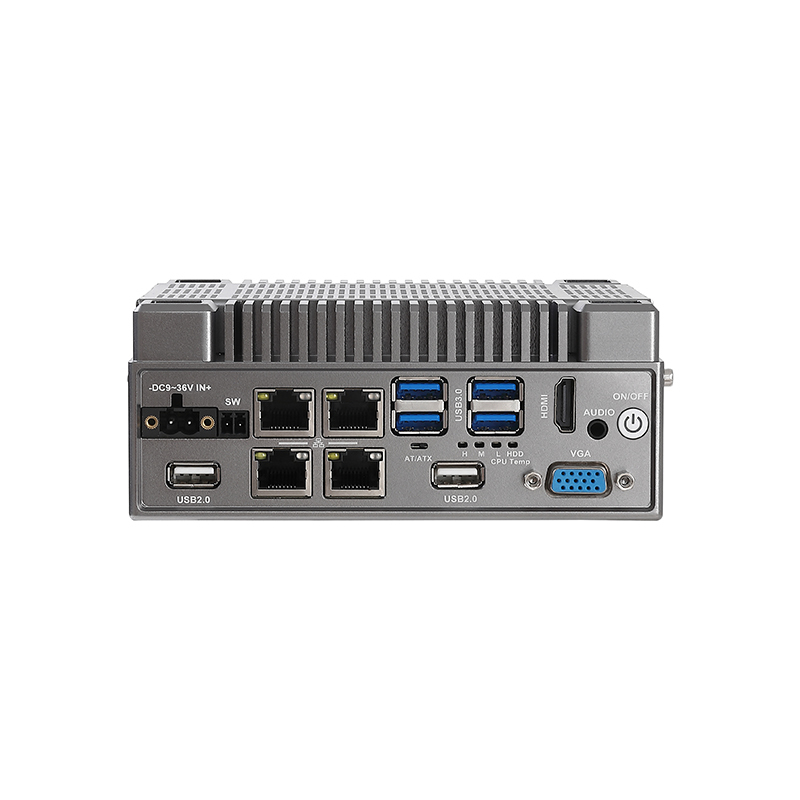

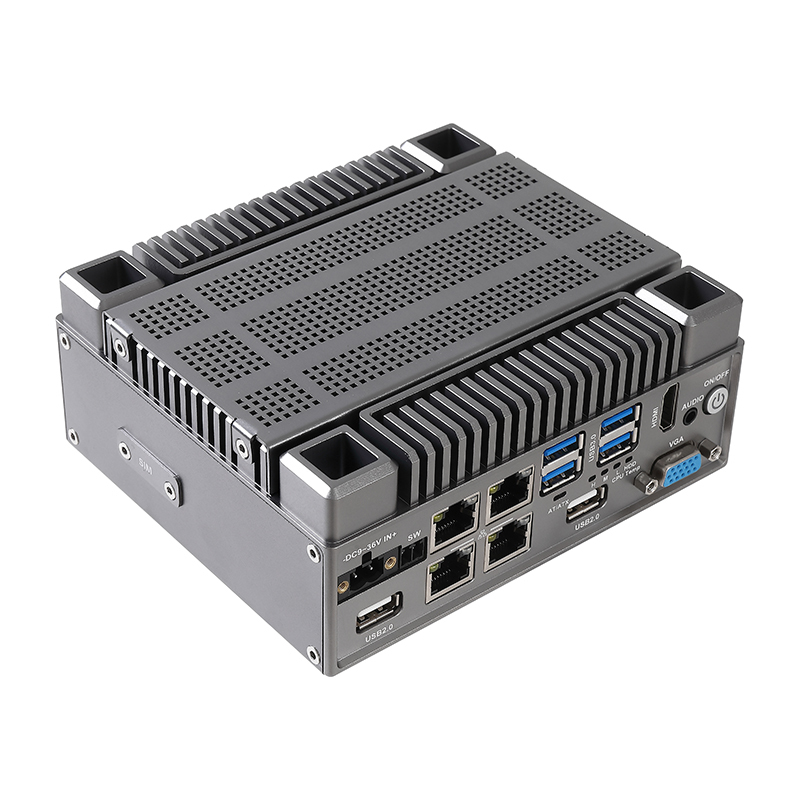

Picture:
