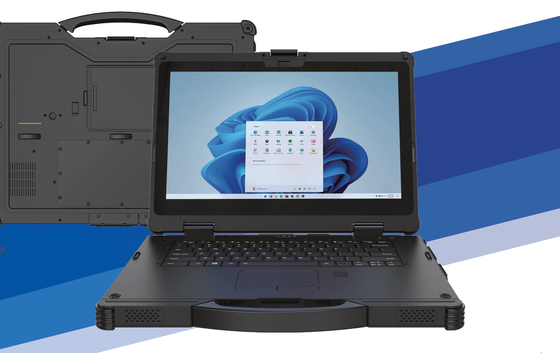

14 Inch Outdoor HD LCD Rugged Enterprise-Grade Rugged Notebook Wins 11 Pro, 11 4700mAh Battery PCAP All In One
Product Details
| Resolution | 1920*1200 | Screen Size | 14'' |
|---|---|---|---|
| CPU | 12th Gen Intel Core I5/i7 Processo | Products Status | Stock |
| OS | Wins 11 Pro,optional Wins 11 Home/IOT | Application | Outdoor |
| Color | Black | Warranty | 1 Years |
| Highlight | 14 inch rugged notebook,HD LCD rugged tablet PC,4700mAh battery rugged notebook |
||
Product Description
Specification Parameter
Basic parameters
| Dimension | 363.2 mm(L) × 287.4 mm(W) × 42.1 mm(H) |
| Weight | device unit 2970g |
| Device Color | black |
| LCD | 14 inch TFT 16:9, 1920×1200 |
| Touch Panel | 5 point capacitive touch screen |
| Camera | Front 5.0MP |
| I/O |
· Micro SD card x1 · SIM card x1 · USB 3.2 Gen 2 (Type-A) x1 · Thunderbolt 4 (Type-C) x1 · 3.5mm audio jack x1 · HDMI 2.0a mini x1 · 10/100/1000 Ethernet (RJ45) x1 · Optional 12-pin Pogo pin x1 (charge & USB) · USB 3.2 Gen 1 (Type-A) x1 · USB 2.0 (Type-A) x1 · 10/100/1000 Ethernet (RJ45) x1 · Serial port (RS232: D-sub, 9-pin) x1 · 5.5 mm DC in jack x1 |
| Power | AC100V ~ 240V, 50Hz/60Hz, 71.82W (19V/3.78A) |
Performance parameter
| CPU |
· Intel i5-1235U (12MB cache, up to 4.4GHz, 10 cores, 12 threads, TDP 15W) · Optional Intel i7-1255U (12MB cache, up to 4.7GHz, 10 cores, 12 threads, TDP 15W) |
| OS |
· Wins 11 Pro · Optional Wins 11 Home/IOT |
| RAM |
· 16GB DDR5 SO-DIMM · Optional 32GB DDR5 |
| Storage |
· 256GB PCIe SSD · Optional 512GB/1TB SSD |
Battery
| Capacity |
· AC adapter: 100-240V, 50Hz-60Hz, 71.82W (19V/3.78A) · Li-ion battery, 11.4V, 4700mAh, 6.5h · Li-ion battery, 11.1V, 1300mAh · Separate RTC 3V/210mAh |
| Type | Build-in Li-polymer battery |
Network connections
| WIFI | · Intel® Wi-Fi 6 /Wi-Fi 6E (802.11 ax) |
| Bluetooth | BT5.1 |
| 2G /3G/4G/5G(Optional) |
· Optional 4G LTE LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/5/8 GSM: / · Optional 5G · GPS module |
