13.3" Cutting-Edge Open Frame PCAP Touch Monitor Android Windows Panel PC

  • 13.3" Cutting-Edge Open Frame PCAP Touch Monitor Android Windows Panel PC
  • 13.3" Cutting-Edge Open Frame PCAP Touch Monitor Android Windows Panel PC
  • 13.3" Cutting-Edge Open Frame PCAP Touch Monitor Android Windows Panel PC
  • 13.3" Cutting-Edge Open Frame PCAP Touch Monitor Android Windows Panel PC
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD13OFT5Y1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 3-5 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 1920*1080 Outline Dimensions Width: 336.4mm Height: 214mm Depth: 30.8mm
Weight 2.3Kg / 4Kg (Approx.) LCD Type 13.3＂Active Matrix TFT-LCD
Video Input VGA, HDMI, Audio OSD Controls Allow On-Screen Adjustments Of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External Brick Input (line) Voltage: 100-240 VAC, 50-60 Hz Output Voltage/Current: 12V At 3A Max. Power Consumption 15W
Regular Warranty 1 Year For TFT Panel And 2 Years For Others Active Area(mm) 293.42(H)x 164.97(V)
High Light

Windows PCAP Touch Monitor

,

Cutting-Edge PCAP Touch Monitor

,

Android PCAP Touch Monitor
Leave a Message
Product Description

13.3" Cutting-Edge Open Frame PCAP Touch Monitor Android Windows panel PC

ITD new PCAP multi-touch screen monitor new series is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.


SPECIFICATIONS


Safety Instructions

  1. Read these safety instructions carefully.
  2. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.
  3. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  4. Keep this equipment away from humidity.
  5. Put this equipment on a reliable surface during installation. Dropping it or letting it fall from high distance may cause damage.
  6. The openings on the enclosure are for air convection. Protect the equipment from overheating.
  7. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.
  8. Position the power cord so that people cannot step on it. Do not place anything over the power cord.
  9. All cautions and warnings on the equipment should be noted.
  10. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient over voltage.
  11. Never pour any liquid into an opening. This may cause fire or electrical shock.
  12. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
  13. If one of the following situations arises, get the equipment checked by service personnel:
    1. The power cord or plug is damaged.
    2. Liquid has penetrated into the equipment.
    3. The equipment has been exposed to moisture.
    4. The equipment does not work well, or you cannot get it to work according to the user’s manual.
    5. The equipment has been dropped and damaged.
    6. The equipment has obvious signs of breakage.

14. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW -20℃ OR ABOVE 70℃. THIS MAY DAMAGE THE EQUIPMENT.






BASIC PARAMETERS

2. 1 General

ModelITD13OFT5K1
IPIP65(for front panel only)
Outline DimensionsWidth: 336.4mm Height: 214mm Depth: 30.8mm
Weight(N.W/G.W)2.3Kg / 4Kg (Approx.)
Packing Dimension484(W) ×260(H)×145(D)mm
Speakers8Ω3W
LCD Type13.3＂Active matrix TFT-LCD
Video InputVGA, HDMI, Audio
Recommend Resolution1920×1080@60Hz,75Hz
OSD controlsAllow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power SupplyType: External Brick
Input (line) Voltage: 100-240 VAC, 50-60 Hz
Output Voltage/Current: 12V at 3A Max.
Power Consumption15W
Mount Interface

1)VESA 75×75 and 100×100mm

2)Mounting Brackets optional

Regular Warranty1 Year for TFT Panel and 2 Years for Others
Agency ApprovalFCC,CE,RoHS Certified

2. 2 LCD Specification

Active Area(mm)293.42(H)x 164.97(V)
Resolution1920×1080
Dot Pitch(mm)0.2235×0.2235
Nominal Input Voltage VDD+3.3V(Typ)
Viewing angle (L/R/T/B)89°/89°/89°/89°
Contrast700:1
Luminance(cd/m2)300
Response Time(Rising/Falling)16ms
Support Color262K
Screen Scanning60Hz
Backlight MTBF(hr)50000h

2.3 Touch Screen Specification

TypeProjected Capacitive Touch Screen
Resolution4096×4096
Light Transmission85%±5%
Touch Life Cycle50 millions times
Touch Response time5ms
Touch System InterfaceUSB A type
Operating System Support

Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Android

2.4 External AC Power Adapter

Output12V DC/3A
Input100-240 VAC, 50-60 Hz
MTBF50000 hr at 25°C

2.5 Environment

Operating Temp.-10～60°C
Storage Temp.-20～70°C
Operating RH:20%～80%
Storage RH:10%～90%









Product image:

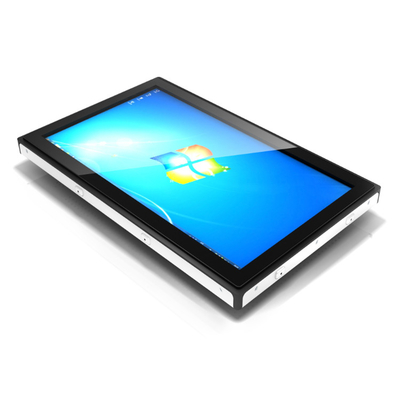

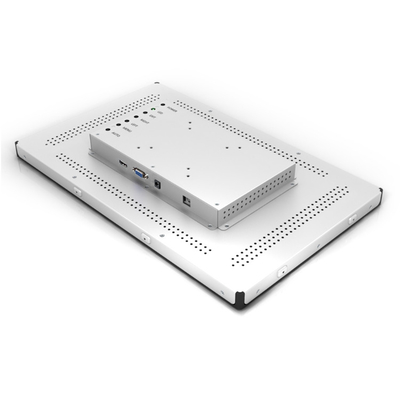

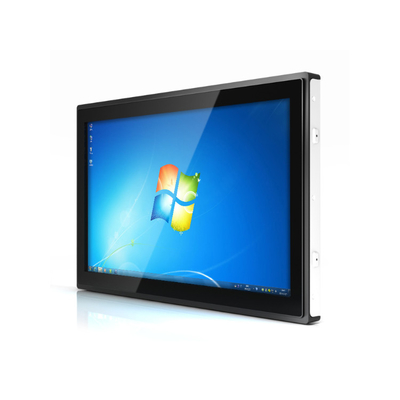

13.3" Cutting-Edge Open Frame PCAP Touch Monitor Android Windows Panel PC 0



13.3" Cutting-Edge Open Frame PCAP Touch Monitor Android Windows Panel PC 1



13.3" Cutting-Edge Open Frame PCAP Touch Monitor Android Windows Panel PC 2



13.3" Cutting-Edge Open Frame PCAP Touch Monitor Android Windows Panel PC 3

13.3" Cutting-Edge Open Frame PCAP Touch Monitor Android Windows Panel PC 4


13.3" Cutting-Edge Open Frame PCAP Touch Monitor Android Windows Panel PC 5
