10.1inch Vehicle use PCAP Freescale Linux Touch Panel PC CAN BUS 4G WIFI GPS DC110V optional

Place of Origin China
Brand Name ITD
Certification CE, FCC, RoHS
Model Number ITD101PPCT1VE1
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month
Product Details
Housing Material Steel Chassis, Aluminum Front Bezel Color Black Or Silver
Housing Type VESA Mounting, Panel Mount, Embedded Mount MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Operating Humidity 10%-90% (Non Condensing)
24/7/365 Use Supported CPU Freescale Cortex I.MX6 Quad Core A9
RAM 2G Storage 8G
Touch Screen Resistive, PCAP Power DC9-36V, DC60-150V, AC90-265V Optional
High Light

touch panel computer

,

touch monitor pc

Leave a Message
Product Description

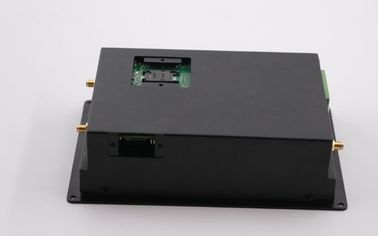

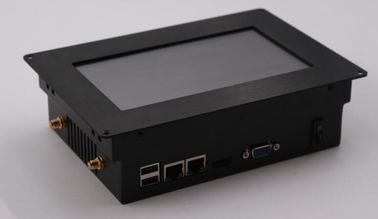

10.1inch Vehicle use PCAP Freescale Linux Touch Panel PC CAN BUS 4G WIFI GPS DC110V optional



ITD 10.1” the in-vehicle touch panel computer equipped with a Freescale ARM Cortex-A9 i.MX 6DualLite processor, Android 5.1 OS, 2 GB memory, a 10.1” industrial grade TFT panel and resistive touch screen. Built-in LTE capabilities transform the terminal into a wireless network hub that supports Wi-Fi, Bluetooth, and GPS communication to enable location tracking and route optimization. The in-vehicle touch computer is highly resistant to impact and vibration without moving parts, come with screw-in M12 plugs (depending on the application) and are suitable for the expanded temperature range especially designed for driverless transport systems (DTS), agricultural and construction machines, and special-purpose vehicles.







System CPU Freescale Cortex I.MX6 Quad Core A9
Memory DRAM 2GB
Storage Sandisk EMMC 4G
OS Android, Linux
Ethernet 2 x 10/100/1000Mbps
Input / Output Bus Expansion 1 x Mini PCIe (Supports 3G/4G)
USB Ports 2 x USB
HDMI Port 1 X HDMI
VGA Port 1 x VGA
M12 Power 1 x M12
TF Slot 1 x TF Slot
Panel Cell Type/Glass Surface TFT LCD
Aspect Ratio/Size 10.1”
Active Area/Pixel Pitch 221.0(W) x 140.50(H)/0.1695mm
Native Resolution/Colors 1280 x 800 /16.7M
Brightness/Contrast 300nits/500:1
Viewing Angle(Typical) 80/80/80/80
Light Source LED Backlight with 50000Hours’Lifetime
Power Input Voltage External power supply with universal / Auto-Sensing, DC 8-36V
Operation/Power Saving 15W
Environment Considerations Operating Temperature -20~70℃
Storage Temperature -30~80℃
Relative Humidity 10%~90% (non condensing)
Anti-Vibration 5Hz-500Hz / 1Grms/3 Axis
Anti-Shock 15G, 15ms duration
Touch Panel Resistive Touch Panel
Order Information 10.1” Vehicle panel PC with Resistive touch/ITD101PPCT1VE1
10.1” Vehicle panel PC with PCAP touch/ ITD101PPCT5VE1
10.1” Vehicle panel PC with Tempered glass/ ITD101PPCG1VE1



FEATURES

▪ Freescale ARM Cortex-A9 i.MX 6DualLite processor with Android 5.1 OS

▪ LTE/HSPA+, Wi-Fi, Bluetooth, and GPS connectivity

▪ Energy-efficient and fan-less HMI Systems

▪ Robust design with aluminum bezel NEMA 4/ IP65 front panel

▪ CAN bus interface with raw CAN, J1939, and OBD-II/ISO 15765 support

▪ Flexible, easy configuration and integration

▪ CE, FCC, RoHS Compliance



OPTIONALS



•WIFI, Bluetooth, GPS

•SIM Card, Can Bus x 2, SATA

•RS232, RS485, RS422 Ports

•Touch optional: Resistive, PCAP

•High brightness, sunlight readable

•DC60-150V, AC90-264V
