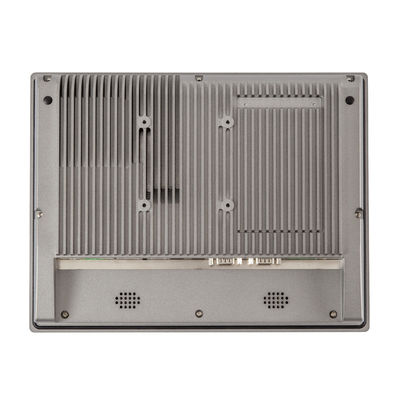

VESA 12.1 Inch 500nits Industrial Hmi Panel 55W Touch Screen

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD12PPCTxB-xxxx
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 1024x768 Brightness 500 ,1000nits Optional
Processor Intel J1900, Intel I3/i5/i7 Touch Panel Capacitive/resistive
Mounting Method Panel Mounted,VESA OS Windows 7/8/10, Linux
Operating Temperature -20~60℃ Storage Temperature -20~70℃
Material Aluminum Housing, HeatSink Warranty 2 Years
High Light

12.1 Inch Industrial Hmi Panel

,

500nits Industrial Hmi Panel

,

55W Pc Panel Touch Screen

Leave a Message
Product Description

pc panel touch screen industrial hmi panel 12.1 inch 500nits



Features

  • Onboard Intel Celeron J1900/4th/6th/7th/8th Gen.Core i3/i5/i7 CPU
  • Onboard DDR3 4GB Memory / Optional SODIMM SKU
  • LCD+HDMI Output, Support Dual view/Simultaneous display
  • Fanless Operation
  • IP65 Front Bezel
  • Wide DC Support 9 ~ 36V
  • GPIO Port
  • All Aluminum Housing with Heatsink
Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 12.1”/4:3
Active Area/ Pixel Pitch 246.0(W) x 184.5(H)mm/0.3075 × 0.3075mm
Native Resolution/ Colors 800 x 600 (1024 x 768 optional)/ 262K/16.2M
Brightness/ Contrast 500 nits, 1000cd/㎡(1500cd/㎡ optional)/700:1
Response Time/ Viewing Angle(Typical) 30ms/80/80/60/80
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage

8GB: 16GB/32GB/64GB Optional



1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
I/O

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional);

1 × TF Card Support 8~128GB

3xUSB2.0, 1xUSB3.0, 1xUSB 2.0 dongle; 2xDB-0 COM1&COM 2, RS232/422/485, 2x3-Wire COM3&COM 4 RS232/485 with terminal block, 1xAudio Line-out, 2x8 1W Audio AMP out 1x Remote Switch with terminal block , 1x AT/ATX Switch, 1xHDMI, 1x14bit GPIO

3xUSB2.0, 1xUSB3.0, 1xUSB 2.0 dongle; 2xDB-0 COM1&COM 2, RS232/422/485, 2x3-Wire COM3&COM 4 RS232/485 with terminal block, 1xAudio Line-out, 2x8 1W Audio AMP out 1x Remote Switch with terminal block , 1x AT/ATX Switch, 1xHDMI, 1x14bit GPIO

LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL

Power Input Voltage DC 9-36V input
Operation/Power Saving 25~55W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%
