SCADA 250nits 17.3" Panel Mounted Panel PC 1920x1080 SCADA

Place of Origin China
Brand Name ITD
Certification CE, FCC, RoHS
Model Number ITD173PMT5X**
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month
Product Details
Native Resolution 1920x1080 Brightness 250 ,1000 Nits Optional
Processor Android,X86 For Optional Touch Panel Capacitive/resistive
Mounting Method Panel Mounted,VESA OS Android 7.0,Windows 7/8/10, Linux
Operating Temperature -10~60℃ Storage Temperature -20~70℃
High Light

250nits Panel Mounted Panel PC

,

17.3" Panel Mounted Panel PC

,

SCADA Android Industrial Panel PC

Leave a Message
Product Description

17.3" multi-touch screen panel mounted panel PC industrial panel PC all in one





FEATURES of multi touch screen panel PC

• Easy-to-clean, true flat front surface without bezel

• Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

• Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)

• Eliminates dust and debris build-up at the edge and corners of the display

• Provides improved power efficiency and reduced consumption

• Responds to a light touch to activate response

• Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

• Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

• CE, FCC, RoHS Compliance



DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 17.3”/16:9
Active Area/ Pixel Pitch 381.89(H) x 214.81(V)mm/0.1989 × 0.1989mm
Native Resolution/ Colors 1920 x 1080/262K
Brightness/ Contrast 1000cd/㎡/800:1
Response Time/ Viewing Angle(Typical) 30ms/85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage

8GB: 16GB/32GB/64GB Optional



1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
I/O 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

Line-Out /MIC IN

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

Line-Out /MIC IN

LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 25~50W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 17.3” Flat Bezel Panel PC 1000nits with PCAP Touch RK32880/ITD173PPCT5HBXE2
17.3” Flat Bezel Panel PC 1000nits with Resistive Touch RK3288/ITD173PPCT1HBXE2
17.3” Flat Bezel Panel PC 1000nits with Tempered Glass RK3288/ITD173PPCG1HBXE2
17.3” Flat Bezel Panel PC 1000nits with PCAP Touch J1900/ITD173PPCT5HBXJ2
17.3” Flat Bezel Panel PC 1000nits with Resistive Touch J1900/ITD173PPCT1HBXJ2
17.3” Flat Bezel Panel PC 1000nits with Tempered Glass J1900/ITD173PPCG1HBXJ2
17.3” Flat Bezel Panel PC 1000nits with PCAP Touch i3/ITD173PPCT5HBXI3
17.3” Flat Bezel Panel PC 1000nits with Resistive Touch i3/ITD173PPCT1HBXI3
17.3” Flat Bezel Panel PC 1000nits with Tempered Glass i3/ITD173PPCG1HBXI3
17.3” Flat Bezel Panel PC 1000nits with PCAP Touch i5/ITD173PPCT5HBXI5
17.3” Flat Bezel Panel PC 1000nits with Resistive Touch i5/ITD173PPCT1HBXI5
17.3” Flat Bezel Panel PC 1000nits with Tempered Glass i5/ITD173PPCG1HBXI5

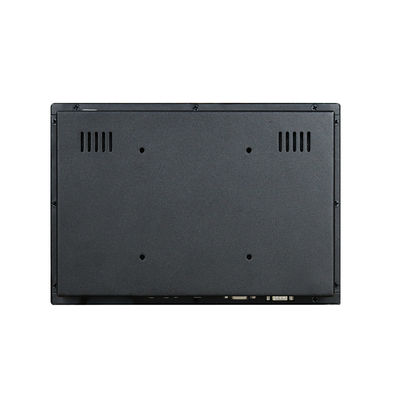

Product Image of panel mounted panel PC industrial panel PC





high brightness panel PC





SCADA 250nits 17.3" Panel Mounted Panel PC 1920x1080 SCADA 1





sunlight readable panel mount PC


SCADA 250nits 17.3" Panel Mounted Panel PC 1920x1080 SCADA 3
