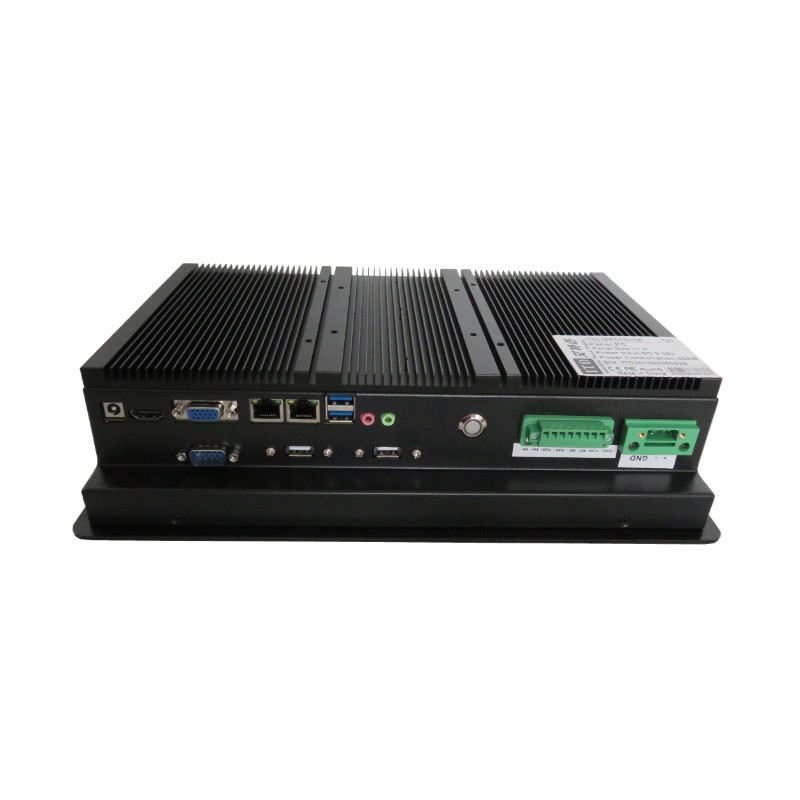

Fanless MarineTouch Panel PC Industrial 11.6 Inch 0-100% Brightness Control

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD11PPCT5XI5A
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 5000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Steel Chassis, Aluminum Front Bezel Color Black Or Silver
Housing Type Panel/Embedded Mount, VESA Mounting MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Operating Humidity 10%-90% (Non Condensing)
24/7/365 Use Supported Brightness 350nits
CPU Intel I5-7200U Resolution 1366*768
High Light

touch panel computer

,

touch monitor pc

Leave a Message
Product Description

11.6 inch fanless marine panel PC industrial touch screen 0-100% brightness control


The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7 with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel allows easy access to ten-touch capabilities built into Windows 7/8/10 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for automation, marine, machinery manufacturing, and custom machine to machine interface applications.



FEATURES

▪ Easy-to-clean, true flat front surface without bezel

▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

▪ Ten independent touch points (with Windows 7/8, Android, Linux operating systems)

▪ Eliminates dust and debris build-up at the edge and corners of the display

▪ Front Panel Connector on the bottom as phoenix connector

▪ Responds to a light touch to activate response

▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

▪ CE, FCC, RoHS Compliance



OPTIONALS

•SDD 32GB, 64GB,128GB or more

•High brightness, sunlight readable

•Resistive touch screen, tempered glass

•3G/4G Module built-in

•Web camera, speakers, RFID built-in



SPECIFICATION

System CPU Intel® Core i3/i5/i7 Processor
BIOS AMI
Chipset Intel® SoC Integrated
Memory 2 x DDR4 SO-DIMM slots up to 16GB 2133MHz
Storage 64G SSD up to 512GB
Graphic Chipset Intel® HD Graphics
Input / Output Serial Ports 1 x COM (RS422 optional)
USB Ports 4 X USB
VGA Port 1 x VGA
HDMI Port 1 x HDMI Port
Audio Card Realtek ALG662 Line-Out/MIC IN
LAN 2 x 10/100/1000Mbps Ethernet
WIFI Built-in, 802.11a/b/g/h (optional)
Panel Cell Type/Glass Surface TFT LCD
Aspect Ratio/Size 11.6”
Active Area/Pixel Pitch 256.125(H) x 144(V)/ 0.1875mm
Native Resolution/Colors 1366x768/262K
Brightness/Contrast 400nits/800:1
Response Time 25ms
Viewing Angle(Typical) 85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime
Touch Screen Type Projected Capacitive Touch Screen
Response Time ≤5ms
Power Input Voltage DC 8-36V
Operation/Power Saving 30W
Environment Considerations Operating Temperature -10~60℃
Relative Humidity 30%~90% (non condensing)
Anti-Vibration 5Hz-500Hz / 1Grms/3 Axis
Anti-Shock 15G, 15ms duration
Anti-Shock 15G, 15ms duration
Order Information 11.6” Panel PC with PCAP touch Intel i3/ ITD11PPCT5XI3A
11.6” Panel PC with PCAP touch Intel i3/ ITD11PPCG1XI3A
11.6” Panel PC with PCAP touch Intel i5/ ITD11PPCT5XI5A
11.6” Panel PC with PCAP touch Intel i5/ ITD11PPCG1XI5A
11.6” Panel PC with PCAP touch Intel i7/ ITD11PPCT5XI7A
11.6” Panel PC with PCAP touch Intel i7/ ITD11PPCG1XI7A
