1.8GHz 10.1” Android Tablet PC , Industrial Grade Touch Monitor PC Aluminum Flat Bezel AIO

Place of Origin China
Brand Name ITD
Certification CE/ROHS/FCC
Model Number ITD101PPCT5KXE31
Minimum Order Quantity 1 units
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 7-12 work days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month
Product Details
Aspect Ratio 16:9 Video Decoder 4K VP8 And 4K 10bits H265/H264
Media Format Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc HDMI 1XHDMI
USB 2XUSB Max 4XUSB Resolution 1366X768
High Light

touch panel computer

,

touch monitor pc

Leave a Message
Product Description

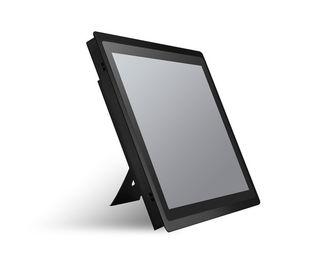

10.1”Android tablet PC industrial grade aluminum flat bezel AIO



PARAMETERS

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 10.1”/16:9
Active Area/ Pixel Pitch 222.52(W) x 125.11(H)mm /0.1629 × 0.1629mm
Native Resolution/ Colors 1366x 768/ 16.7M
Brightness/ Contrast 300cd/㎡/800:1
Response Time 25ms
Viewing Angle(Typical) 85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Quad Core RK3288,Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 5.1/6.0; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

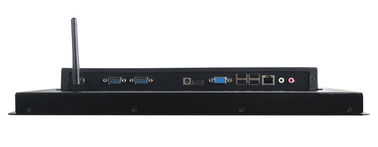

Input / Output

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG; 4 × COM;

1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 10.1”Zero-Bezel Android Panel PC with PCAP Touch/ITD101PPCT5KXE31
10.1”Zero-Bezel Android Panel PC with Resistive Touch/ITD101PPCT1KXE31
10.1”Zero-Bezel Android Panel PC with Tempered Glass/ITD101PPCG1XE31
