Full HD IP66 Stainless Steel Panel PC 10.1" - 24" Resistive / PCAP Touch High Brightness
1pcs
MOQ
TBA
Price
Full HD IP66 Stainless Steel Panel PC 10.1" - 24" Resistive / PCAP Touch High Brightness
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ITD
Certification: CE, FCC, RoHS
Model Number: ITD19PPCG1IP**
High Light:

rugged industrial computers

,

rugged industrial pc

Payment & Shipping Terms
Packaging Details: 1pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time: 15-20 Business Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000PCS/Month
Specifications
View Angels: 85/85/80/80
IP Rating: IP65/IP66
Touch Options: Resistive, PCAP
Resolution: 1280 X 1024
System: Intel J1900/i3/i5/i7/Android
Serial Ports: 1x COM (Optional)
USB Ports: 1 X USB 2.0(Waterproof Connector And Cable)
Power Port: 1 X 12V DC Jack(Waterproof Connector And Cable)
LAN: 1 X 10/100/1000Mbps Ethernet(Waterproof Connector And Cable)
Product Description

High Brightness Full IP66 Stainless Steel Panel PC 10.1" to 24"


The ITD Full IP65/IP66 high brightness panel PCs series is an ARM based Quad Core Processor RK3288 1.6 GHz based that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, biotechnology process manufacturing and outdoor application. This waterproof PCs series has a wide range of sizes option, with complete stainless steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.



ModelITD101PPCG1HBIPSE2ITD10PPCG1HBIPSE2ITD12PPCG1HBIPSJE2ITD15PPCG1HBIPSE2
Size10.1” (16:10)10.4” (4:3)12.1”(4:3)15” (4:3)
Active Area216.96(W) x 135.6(H)211.2(W) x 158.4(H)246.0(H) x 184.5(V)211.2(W) x 158.4(H)
Contrast Ratio700:1500:1500:1700:1
Resolution1280x800800x600 or 1024x768800x600 or 1024x7681024 x 768
Brightness1000nits1000nits1000nits1000nits
Viewing Angles70/70/60/7070/70/60/7070/70/60/6080/80/60/80
BacklightLEDLEDLEDLED
ModelITD17PPCG1HBIPSE2ITD19PPCG1HBIPSE2ITD21PPCG1HBIPSE2ITD24PPCG1HBIPSE2
Size17” (4:3)19” (4:3)21.5” (16:9)24” (16:9)
Active Area337.92(H) x 270.33(V)376.32(H) x 301.06(V)476.64(H)x248.25(V)521.28(H)x293.22(V)
Contrast Ratio1000:11000:11000:13000:1
Resolution1280 x 10241280 x 10241920 x 10801920 x 1080
Brightness1000nits1000nits1000nits1000nits
Viewing Angles85/85/80/8085/85/80/8085/85/80/8089/89/89/89
BacklightLEDLEDLEDLED

SPECIFICATION

SystemCPUARM Quad Core RK3288,Main CPU frequency:1.6GHz;
MemoryDDR2, 2Gb
Flash8Gb
StorageUSB 2.0 Host
OS SupportAndroid 4.4/5.1
I/OSerial Ports1 x COM (Optional)
USB Ports1 x USB 2.0(Waterproof Connector and Cable)
Power Port1 x 12V DC Jack(Waterproof Connector and Cable)
HDMI Output1 x HDMI (Optional)
LAN1 x 10/100Mbps Ethernet(Waterproof Connector and Cable)
WIFIBuilt-in, 802.11a/b/g/h (optional)
Mounting75 x 75/100 x 100mm VESA Mount (Panel Mount optional)
Operating Temperature-10~60℃ (-20~70℃ Optional)
Storage Temperature-20~70℃
Order Information1000nits Stainless Steel Full IP65/IP66 Android Panel PC with Tempered Glass: ITD**PPCG1HBIPSE2
1000nits Stainless Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD**PPCT1HBIPSE2
1000nits Stainless Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD**PPCT5HBIPSE2
1000nits Stainless Steel Full IP67 Android Panel PC with Tempered Glass: ITD**PPCG1HBIPSE7
1000nits Stainless Steel Full IP67 Android Panel PC with Resistive Touch: ITD**PPCT1HBIPSE7
1000nits Stainless Steel Full IP67 Android Panel PC with PCAP Touch: ITD**PPCT5HBIPSE7
1000nits Aluminum Alloy Full IP65/IP66 Android Panel PC with Tempered Glass: ITD**PPCG1HBIPAE2
1000nits Aluminum Alloy Full IP65/IP66 Android Panel PC with Resistive Touch: ITD**PPCT1HBIPAE2
1000nits Aluminum Alloy Full IP65/IP66 Android Panel PC with PCAP Touch: ITD**PPCT5HBIPAE2
1000nits Steel Full IP65/IP66 Android Panel PC with Tempered Glass: ITD**PPCG1HBIPXE2
1000nits Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD**PPCT1HBIPXE2
1000nits Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD**PPCT5HBIPXE2
1500nits Stainless Steel Full IP65/IP66 Android Panel PC with Resistive Touch: ITD**PPCT1HBIPSE1
1500nits Stainless Steel Full IP65/IP66 Android Panel PC with PCAP Touch: ITD**PPCT5HBIPSE1





Specifications:

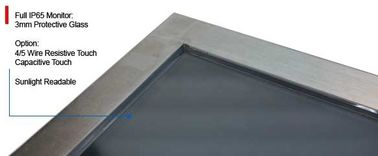

Full HD IP66 Stainless Steel Panel PC 10.1" - 24" Resistive / PCAP Touch High Brightness 0



Full HD IP66 Stainless Steel Panel PC 10.1" - 24" Resistive / PCAP Touch High Brightness 1

Product Display:

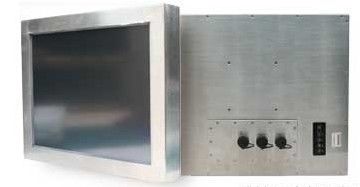

Full HD IP66 Stainless Steel Panel PC 10.1" - 24" Resistive / PCAP Touch High Brightness 2



Full HD IP66 Stainless Steel Panel PC 10.1" - 24" Resistive / PCAP Touch High Brightness 3



APPLICATION


Full HD IP66 Stainless Steel Panel PC 10.1" - 24" Resistive / PCAP Touch High Brightness 4
