ip65 panel pc 21.5 inch stainless steel 304 for food industry

Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD21PPCT5IPSJ1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 15-20 working days
Payment Terms T/T, Western Union,Paypal
Supply Ability 5000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU Intel J1900, Intel I3/i5/i7 Material Stainless Steel Housing
Screen Diagonal 21.5" 250nits, 1000nits 1500nits Optional Physical Resolution 1920*1080
View Angels 89/89/89/89 Backlife LED Backlight With 50000 Hours’lifetime
RFID/NFC Reader Optional IP Rate Full IP65 IP66 IP67
Touch Screen PCAP Touch Or Resistive Touch Lifespan 50000hours
Leave a Message
Product Description

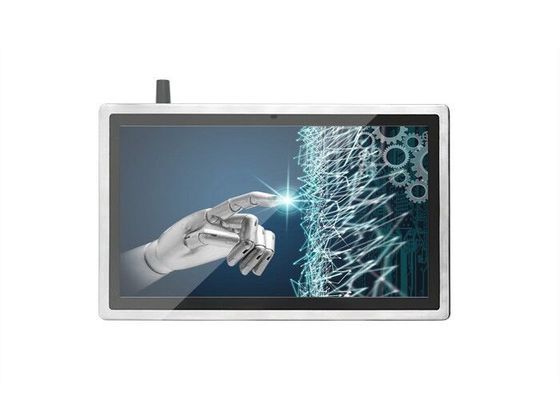

ip65 panel pc 21.5 inch stainless steel 304 for food industry


The ITD Full IP65/IP66 panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chhis waterproof PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.



ip65 panel pc 21.5 inch stainless steel 304 for food industry 0ip65 panel pc 21.5 inch stainless steel 304 for food industry 1

FEATURES
•Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
•Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
•Rugged aluminum alloy/stainless steel enclosure design with high EMC and IP65/IP66 NEMA4/4X protection
•Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
•Flexible, reliable, and ruggedized for open platform HMI/SCADA
•Provides improved power efficiency and reduced consumption
•CE, FCC, RoHS Compliance


OPTIONALS

• DC 24V, DC9-36V, AC100-240V• Optical bonding, IP67
• Resistive, IR, PCAP touch screen, AR/AG tempered glass• WIFI, 3G, 4G, Bluetooth
• Web camera, speakers, RFID, NFC, Fingerprint, QR reader, GPS etc.• Stainless Steel, Aluminum Alloy

DISPLAY

PanelCell Type/Glass SurfaceTFT
Size/ Aspect Ratio21.5”/16:9
Active Area/ Pixel Pitch476.64(H) x268.11(V)mm/0.24825× 0.24825mm
Native Resolution/ Colors1920 x 1080/16.7M
Brightness/ Contrast250cd/㎡/1000:1
Response Time/ Viewing Angle(Typical)5ms/89/89/89/89
Light SourceLED Backlight with 50000Hours’Lifetime

SYSTEM

ItemAndroid SolutionX86 Solution 1X86 Solution 2
CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage8GB: 16GB/32GB/64GB Optional1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
Default Waterproof I/O

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

GENERAL


PowerInput VoltageDC 12V 2.0
Operation/Power Saving25~45W
Environment ConsiderationsOperating Temperature-10~60℃
Storage Temperature-20~70℃
MountingVESA Mount, Panel/Embedded Mount optional
Order Information21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD21PPCG1IP*E1
21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD21PPCT1IP*E1
21.5” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD21PPCT5IP*E1
21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD21PPCG1IP*J1
21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD21PPCT1IP*J1
21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD21PPCT5IP*J1
21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD21PPCG1IP*I3
21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD21PPCT1IP*I3
21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD21PPCT5IP*I3
21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD21PPCG1IP*I5
21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD21PPCT1IP*I5
21.5” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD21PPCT5IP*I5
