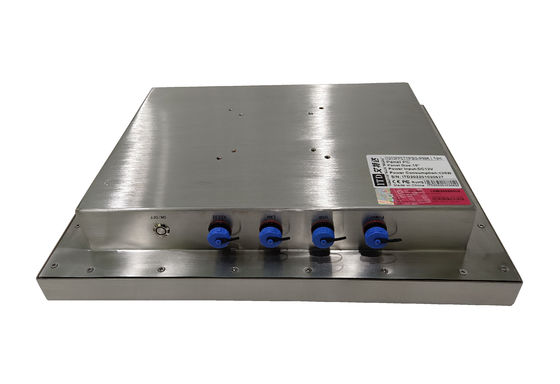

15 Inch IP69K Rugged Touch Panel PC Intel I5-7200U Stainless Steel Housing
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE/ROHS/FCC |
| Model Number | ITD15PPCT1IPSI5-69K |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | Foam,gift box,master carton,wooden case,pallet |
| Delivery Time | 1 month |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000 unit per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel I5-7200U | Material | Stainless Steel Housing 304 Or 316L |
|---|---|---|---|
| Screen Diagonal | 15" | Physical Resolution | 1024×768 |
| Waterproof I/O | 2×USB, 1×RS232, 1×RJ45, 1×DC 12V | Operating Temp | -10 To 60℃ |
| OS | Windows 10 IoT OS | TPM 2.0 | TPM 2.0 Supported |
| MTBF | 50000hous | ||
| High Light | SS Housing Rugged Touch Panel PC,IP69K Rugged Touch Panel PC,Intel I5-7200U 15 Inch Touch Panel PC |
||
Product Description
15" IP69K stainless steel touch panel PC Intel i5-7200U Windows 10 IoT OS
Washdown fully sealed panel PCs featuring a full IP67/69K rated SUS316 stainless steel enclosure designed for hygienic Clean-in-Place (CIP) sanitary processing and washdown applications. The monitors come with a resistive or capacitive type touch screen (up 27 inches) that provides a user-friendly interface and compact rugged housing for applications with space limitations. The embedded PCs are powered by the Intel i57200U Quad-Core processor and integrate a network-ready computer board with sealed USB and RS-232 interface ports.
| Panel | Cell Type/Glass Surface | TFT LCD |
| Aspect Ratio/Size | 15” 4:3 | |
| Active Area | 304.128(H) x 228.096(V)mm | |
| Pixel Pitch | 0.297(H) x 0.297(V)mm | |
| Native Resolution | 1024 x 768 | |
| Contrast | 800:1 | |
| Colors | 16.2M | |
| Contrast Ratio | 300nits | |
| Response Time | 30ms | |
| Viewing Angle (Typical) | 80/80/80/80 | |
| Light Source | LED Backlight with 50000Hours’ Lifetime | |
| System | CPU | Intel® Core i5-7200U/7300U |
| BIOS | AMI | |
| Chipset | Intel® Baytrail SOC CPU Integrated | |
| Memory | 2 x SO-DIMM, DDR3 1333MHz Memory, 4GB, Max.16GB | |
| Graphic Chipset | CPU integrated graphics HD and support 1080p | |
| Storage | 1 x SATA, 1 x mSATA | |
| I/O | Serial Ports | 1x COM (Optional) |
| USB Ports | 2 x USB 2.0(Waterproof Connector and Cable) | |
| Power Port | 1 x 12V DC Jack (Waterproof Connector and Cable) | |
| LAN | 1 x 10/100/1000Mbps Ethernet (Waterproof Connector and Cable) | |
| WIFI | Built-in, 802.11a/b/g/h (optional) | |
| Touch Screen | Type | Projected Capacitive Touch Screen with 10 independent touch points |
| Response Time | ≤5ms | |
| Transparency | ≥85% | |
| Lifetime | ≥50,000,000 times/click | |
| OS Support | Windows CE/XP/7/8/10, Linux, Mac, Android | |
| General | Power Input | DC 12V |
| Power Switch | Optional | |
| Mounting | 100 x 100mm VESA Mount | |
| Operation/Power Saving | 35W | |
| Operating Temperature | -10~60℃ -20~70℃ optional | |
| Storage Temperature | -20~70℃ | |
| OS Support | Windows 7/ Windows XP/ Windows 8/Window 10/ Linux | |
| Order Information | ||
