PCAP Touch Panel PC 15 Inch Computer Intel I3/I5/I7 With RFID Reader / Face Recognition

Place of Origin China
Brand Name ITD
Certification CE/ROHS/FCC
Model Number ITD15PPCT5XI*-RFID
Minimum Order Quantity 1 units
Packaging Details Foam,gift box,master carton,wooden case,pallet
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month
Product Details
IP Rating IP65 Front Panel Touch Technology Projected Capacitive Touch With 10 Touch Points
Aspect Ratio 4:3 Brightness 250cd/m2
Contrast 800:1 Viewing Angles 80/8060/80
MTBF 50000H CPU Intel Core I3/i5/i7
Housing Brushed Aluminum Front Bezel And Steel Chassis
High Light

touch panel computer


touch monitor pc

Leave a Message
Product Description

15inch PCAP touch panel PC computer Intel i3/i5/i7 with RFID reader,fingerprinter,face recognition, QR code optional


The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7 with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.


Panel Cell Type/Glass Surface TFT
Size 15”
Aspect Ratio 4:3
Active Area 304.12(H)x 228.09(V)mm
Pixel Pitch 0.297× 0.297mm
Native Resolution 1024 x 768
Colors 16.2M
Brightness 250cd/㎡
Contrast 700:1
Response Time 30ms
Viewing Angle(Typical) 80/80/60/80
Light Source LED Backlight with 50000Hours’Lifetime


System CPU Intel® Core i3/i5/i7 Processor
Chipset TBA
Memory 2 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.16GB
Graphic Chipset CPU integrated graphics HD and support 1080p
Storage 32GB SSD or 320GB HDD
LAN 1 x 10/100/1000Mbps Ethernet
Input / Output Serial Ports 1 x COM
USB Ports 4 X USB
VGA Port 1 x VGA
HDMI Port 1x HDMI Port
Audio Card

with Realtek ALC662

Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN

Power Input Voltage DC 12V
Operation/Power Saving 65W
Environment Considerations Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 15”Flat Bezel Panel PC with PCAP Touch i3/i5/i7 /ITD15PPCT5XI*
15”Flat Bezel Panel PC with Resistive Touch i3/i5/i7 /ITD15PPCT1XI*
15” Flat Bezel Panel PC with Tempered Glass i3/i5/i7 /ITD15PPCG1XI*



▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Responds to a light touch to activate response
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

▪ CE, FCC, RoHS Compliance


•DC 24V, DC9-36V, AC100-240V

•High brightness, sunlight readable

•Resistive touch screen, tempered glass

•Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, etc

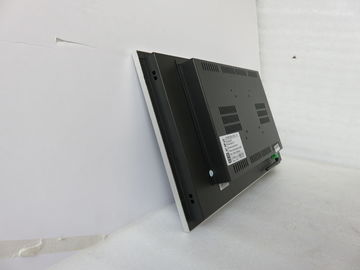

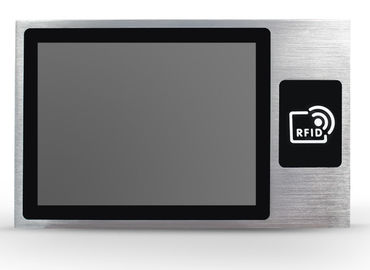

Product Display:
 PCAP Touch Panel PC 15 Inch Computer Intel I3/I5/I7 With RFID Reader / Face Recognition 0PCAP Touch Panel PC 15 Inch Computer Intel I3/I5/I7 With RFID Reader / Face Recognition 1

PCAP Touch Panel PC 15 Inch Computer Intel I3/I5/I7 With RFID Reader / Face Recognition 2
