350nits Android 7.1 Industrial Panel Pc 15.6 Inch PCAP Touch Screen

Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD156PPCT5KE1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,wooden case,pallet
Delivery Time 15-20 working days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
CPU RK3288, RK3399 Material Aluminum Frame And Aluminum Back Casing
Screen Diagonal 15.6" Physical Resolution 1920 X 1080
View Angels 85/85/85/85 Backlife LED Backlight With 50000 Hours’lifetime
RAM 2G Max. 4G IP Rate IP65 On Front
Touch Screen Resistive Touch Screen Or PCAP Touch Storage 8G, Max. 32G
OS Android 7.1/8 Brightness 350nits
High Light

15.6 Inch PCAP Touch Screen


Android 7.1 Industrial Panel Pc


350nits Android Industrial Panel Pc

Leave a Message
Product Description

android industrial panel pc 15.6 inch PCAP touch screen for medical


Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 15.6”/16:9
Active Area/ Pixel Pitch 344.16mm(W)×193.59mm(H) /0.17925(H)×0.17925(V)mm
Native Resolution/ Colors 1920 x 1080/262K
Brightness/ Contrast 300cd/㎡/700:1
Response Time 25ms
Viewing Angle(Typical) 89/89/89/89
Light Source LED Backlight with 50000Hours’Lifetime



CPU: ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 6.0/7.1; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM


Photo Format: Supports JPG/BMP/GIF/TIFF/PNG

Input / Output

1 × HDMI; 2 × USB Max. 6× USB

1 × TF Card Support 8~128GB;

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

1 × DC 12V 2.0; 3G/4G Optional

Com Port optional

Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 15.6”Zero-Bezel Android Panel PC with Tempered Glass/ITD156PPCG1KE2

Product Display

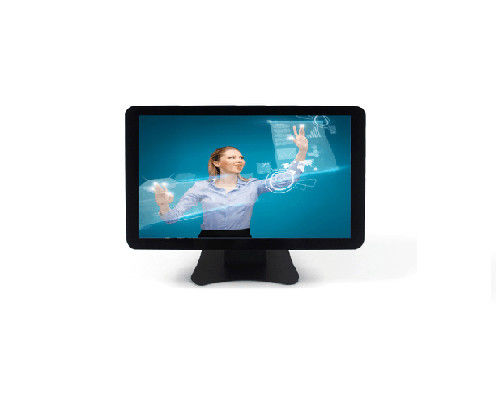

350nits Android 7.1 Industrial Panel Pc 15.6 Inch PCAP Touch Screen 0350nits Android 7.1 Industrial Panel Pc 15.6 Inch PCAP Touch Screen 1350nits Android 7.1 Industrial Panel Pc 15.6 Inch PCAP Touch Screen 2
