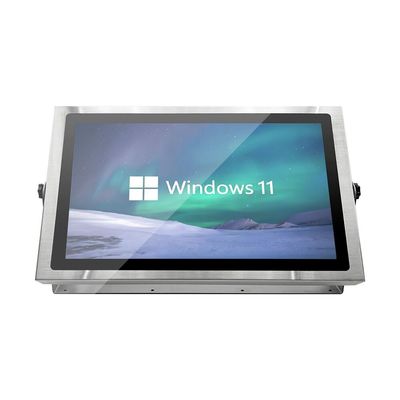

10.1'' Industrial Full IP69K PCAP Touch Android / X86 Based Flat Panel PC High Brightness Full IP69K Stainless Steel

  • 10.1'' Industrial Full IP69K PCAP Touch Android / X86 Based Flat Panel PC High Brightness Full IP69K Stainless Steel
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS Compliance
Model Number ITD21PPCTxIPS**-69K
Document 10.1inch Full IP69K Panel P...PC.pdf
Minimum Order Quantity 1PCS
Price TBP
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

INTERDUCTION


The ITD Full IP69K panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical processing, pharmaceuticals, biotechnology process manufacturing and other industrial applications. This waterproof IP69K PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP69k sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration, high-pressure water jets and steam cleaning while meeting required EMI/RFI resistance compliance.


FEATURES

•Robust stainless steel(304) enclosure, sealed M12 metal I/Os from particles, water, and corrosive agents

•IP69K fully sealed with anti-corrosive rubber to providing 360 degree protection

•Rugged stainless steel enclosure design with high EMC, fanless design and flat surface with easy-to-clean

•ARM based board built-in or Windows-based PC integrated

•Flexible, reliable, and ruggedized for open platform HMI/SCADA

•Provides improved power efficiency and reduced consumption

•CE, FCC, RoHS Compliance


OPTIONALS


• DC 24V, DC9-36V, AC100-240V input

• High Brightness, Auto-Dimming

• Resistive Touch, AR/AG/AF Tempered Glass, Optical Bonding

• WIFI, 4G/5G, Bluetooth, GPS, Speakers

• VESA Mount, Yoke Mount

• Stainless Steel 316L

Panel Cell Type/Glass Surface  TFT
Size/ Aspect Ratio  10.1” 16:10
Active Area/ Pixel Pitch  216.96(W) × 135.6(H)/0.1695 × 0.1695mm
Native Resolution/ Colors  1280 × 800 /16.7M
Brightness/ Contrast  350cd/㎡(500~1000cd/㎡optional)/800:1
Response Time/ Viewing Angle(Typical)  25ms/85/85/85/85
Light Source  LED Backlight with 50000Hours’Lifetime
Item  ARM Solution  X86 Solution 1  X86 Solution 2
CPU  ARM Quad Core Cortex-A17, 1.8GHz
(RK3399/RK3568/RK3588 optional) 		 Intel® Celeron J1900//J4125/J6412 2.0GHz   Intel® Core i3/i5/i7
Chipset Rockchip Intel Bay Trail SoC Intel SoC Chipset
Memory  2GB; 4GB Optional  Dual Channel, DDR3 1333/1600MHz Memory,
Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412)		 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
DDR4 SODIMM ×2 (8th~11th gen.)
Storage  8GB: 16GB/32GB/64GB Optional  1×MSATA, 1×SATA
1×M.2 (not available for J1900) Default to 64GB SSD		 1×MSATA, 1×SATA
1×M.2 Default to 64GB SSD
Graphics Supports max. 4K resolution  Intel HD/UHD Graphics (By CPU)  Intel HD/UHD Graphics (By CPU)
Default
Waterproof M12
I/O 		 2 × USB, 1 × RJ45, 1 × DC
More Waterproof I/Os optional
(1 × TF Card Slot Support 8~128GB)		 2 × USB, 1 × COM, 1 × RJ45, 1 × DC
More Waterproof I/Os optional 		 2 × USB, 1 × COM, 1 × RJ45, 1 × DC
More Waterproof I/Os optional
LAN 1×10/100/1000Mbps Ethernet 1× 10/100/1000Mbps Ethernet( Dual LAN optional)  1×10/100/1000Mbps Ethernet( Dual LAN optional)


10.1'' Industrial Full IP69K PCAP Touch Android / X86 Based Flat Panel PC High Brightness Full IP69K Stainless Steel 0

10.1'' Industrial Full IP69K PCAP Touch Android / X86 Based Flat Panel PC High Brightness Full IP69K Stainless Steel 110.1'' Industrial Full IP69K PCAP Touch Android / X86 Based Flat Panel PC High Brightness Full IP69K Stainless Steel 2
