350nits Flat Panel LCD Monitor Industrial Touch Screen 10 Inch For Robotics
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis And Aluminum Front Bezel | Brightness | 350nits, 1000nits Optional |
|---|---|---|---|
| I/O | VGA, HDMI Input, USB Port, DC12V Input | MTBF | 50000Hours |
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Touch Screen | Capacitive Touch Screen Or Resistive Touch |
| 24/7/365 Use | Supported | Resolution | 1280*800 |
| Size | 10 Inch | ||
| High Light | VGA HDMI flat panel lcd monitor,350nits flat panel lcd monitor,Robotics industrial touch screen 10 Inch |
||
Product Description

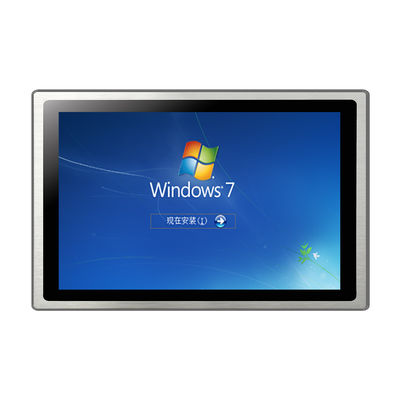

flat panel lcd monitor industrial touch screen 10 inch for robotics
| Article | 10.1” flat panel lcd monitor industrial touch screen |
| IP | IP65(for front panel only) |
| Cut-Out Dimensions | 276.5×191.7mm |
| Aluminum Front Bezel Thickness | 3mm (6mm, 10mm optional) |
| Weight(N.W/G.W) | 2.5Kg / 2.8Kg (Approx.) |
| LCD Type | 10.1＂Active matrix TFT-LCD |

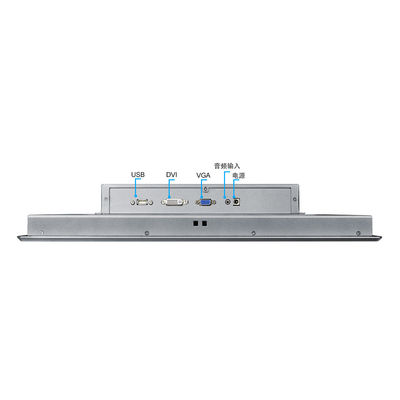

| Video Input | VGA and DVI-I, HDMI, Audio |
| Recommend Resolution | 1280×800@60Hz,75Hz |
| OSD controls | Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Input | DC 12V Power Plug; DC 9-36V input optional |
| Power Consumption | 10W |
| Mount Interface |
1)VESA 75×75/100×100mm 2)Panel Mounting via Clamps |
| Regular Warranty | 1 Year for TFT panels; 2 Years for others. |
| Agency Approval | FCC,CE,RoHS Certified |
| Active Area(mm) | 216.96(H) ×135.6(V) |
| Resolution | 1280×800 |
| Pixel Pitch(mm) | 0.1695×0.1695 (H×V) |
| Nominal Input Voltage VDD | +3.3V(Typ.) |
| Viewing angle (L/R/T/B) | 85°/85°/85°/85° |
| Contrast | 800:1 |
| Luminance(cd/m2) | 350 |
| Response Time(Rising/Falling) | 25ms |
| Support Color | 16.7M |
| Screen Scanning | 60Hz |
| Backlight MTBF(hr) | 50000h |
2.3 Touch Screen Specification
2.3.1 Projected Capacitive Touch Screen
| Type | Projected Capacitive Touch Screen |
| Surface Hardness | 7H |
| Light Transmission | 85%±5% |
| Touch Life Cycle | 50 million times |
| Touch Response time | 5ms |
| Touch System Interface | USB A type (USB B type optional) |
| Operating System Support |
Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above Drivers for Windows CE/XP, Mac, Android |
2.3.1 5 Wires Resistive Touch Screen
| Type | 5 Wires Resistive Touch Screen |
| Surface Hardness | 3H |
| Surface Treatment | Anti-Glare |
| Light Transmission | ≥78% |
| Finger Touch Life | 35 million times |
| Touch Response time | ≤15ms |
| Touch System Interface | USB B type (A type optional) |
| Operating System Support | Drivers for Windows CE/XP/7/8/10,Linux, Mac, Android |
2.4 External AC Power Adapter
| Output | 12V DC/3A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
2.5 Environment
| Operating Temp. | -10～60°C (-20～70°C optional) |
| Storage Temp. | -20～70°C |
| Operating RH: | 10%～90% |
| Storage RH: | 10%～90% |
| Anti-Vibration | 5Hz-500Hz / 1Grms/3 Axis (optional) |
| Anti-Shock | 15G, 15ms Duration (optional) |
