VESA Mounting LCD Touch Monitor 1024*768 For Industrial Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis | Color | Black Or Silver |
|---|---|---|---|
| Housing Type | Chassis Mount, VESA Mounting | MTBF | 50000Hours |
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Operating Humidity | 10%-90% (Non Condensing) |
| 24/7/365 Use | Supported | Resolution | 1024*768 |
| High Light | VESA Mounting LCD Touch Monitor,OEM 17inch LCD Touch Monitor,1024*768 VESA Mounting Monitor |
||
Product Description

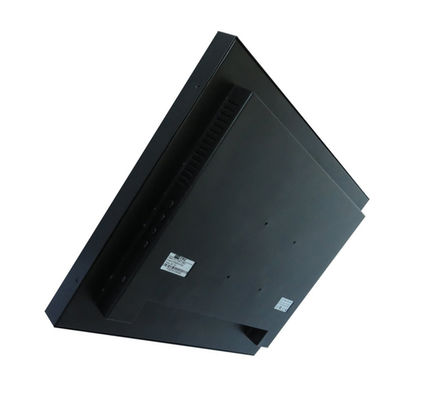

VESA Mounting LCD Touch Monitor 1024*768 For Industrial Use
17 inch industrial chassis lcd touch monitor with touchscreen optional for industrial use
ITD industrial chassis monitor LCD displays are fully-integrated, commercially off-the-shelf units that combine high-performance technology, in industrial-grade LCD flat panels, with sleek and flush mount IP54 chassis front surface industrial design. ITD industrial monitor LCD displays provide reliability, durability, and expected longer product life.
BENEFITES
- Robust display technologies provide integration and design flexibility
- Exceptional quality and highly engineered industrial monitors
- Delivers drift-free operation for a lifetime of 50 million finger touches
- All steel construction designed for harsh and industrial environments
- Chassis and VESA mount display, easy-to-install
- Accuracy in high-use applications
- Supports Windows Embedded, Windows7/8/10, and Linux operating systems
|
Chassis LCD Monitor
|
|
| Model Name | ITD17CMN1M1 |
| IP Rating | N/A |
|
LCD Panel
|
|
| Screen Diagonal (Inch) | 17” |
| Display Active Screen Size (cm) | 337.92(H)×270.34(V) |
| Aspect Ratio | 4:3 |
| Physical Resolution | 1280×1024 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 250 |
| Contrast Ratio | 1000:1 |
| View Angels | 85/85/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours’Lifetime |
|
Touch Panel
|
|
| Touch Options | Resistive, IR, PCAP, SAW |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
|
Input / Output
|
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
|
Operation
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 32.5W |
|
Order Information
|
|
| 17”Chassis LCD Monitor with Resistive Touch | ITD17CMT101 |
| 17”Chassis LCD Monitor with IR Touch | ITD17CMT201 |
| 17”Chassis LCD Monitor with SAW Touch | ITD17CMT301 |
| 17”Chassis LCD Monitor with PCAP Touch | ITD17CMT501 |
| 17”Chassis LCD Monitor with Tempered Glass | ITD17CMG101 |
APPLICATION
