19" AIO industrial computer true flat surface pcap touch PC

Place of Origin China
Brand Name ITD
Certification CE/ROHS/FCC
Model Number ITD19PPCT5KI5
Minimum Order Quantity 1 units
Packaging Details Foam,gift box,master carton,wooden case,pallet
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 unit per month
Product Details
Model Name ITD19PPCG1K** CPU Intel J1900,i3,i5,i7,ARM Android
Screen Diagona 19" Display Active Screen 376.32 (H) ×301.06(V) Mm
Physical Resolution 1280×1024 Brightness (cd/m²) 250nits
View Angels 85/85/80/80 Touch Technology Projected Capacitive Touch With 10 Touch Points
Operating Temperature Range -10~60°C (-20~70°C Optional) Touch Life 50,000,000 Times/Click
High Light

touch display pc

,

touch monitor pc

Leave a Message
Product Description

19" AIO industrial computer true flat surface pcap touch PC



Specifications:




Zero-Bezel PCAP Touch Panel PC



Model Name ITD19PPCG1K**
IP Rating IP65 Front Panel

PC Systems Options



ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® HD Graphics, Support 1080p Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel



Screen Diagonal (Inch/cm) 19”
Display Active Screen Size (mm) 376.32 (H) ×301.06(V)
Aspect Ratio 4:3
Physical Resolution 1280×1024
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 250nits
Contrast Ratio 1000:1
View Angels 85/85/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime

Touch Panel



Touch Technology Projected Capacitive Touch
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi
Touch Life 50,000,000 Times/Click
Surface Hardness 7H
OS Support Windows, Linux, Android, Mac, Raspberry Pi

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power



Power Indicator Green LED
Power Input DC 12V
Power Consumption 30W

Order Information



19” Zero-Bezel Touch Panel PC with PCAP Touch, J1900 ITD19PPCT5KJ1

19” Zero-Bezel Touch Panel PC with Tempered Glass, J1900

19” Zero-Bezel Touch Panel PC with PCAP Touch, i3

ITD19PPCG1KJ1

ITD19PPCT5KI3

19” Zero-Bezel Touch Panel PC with Tempered Glass, i3

19” Zero-Bezel Touch Panel PC with PCAP Touch, i5

19” Zero-Bezel Touch Panel PC with Tempered Glass, i5

19” Zero-Bezel Touch Panel PC with PCAP Touch, i7

ITD19PPCG1KI3

ITD19PPCT5KI5

ITD19PPCG1KI5

ITD19PPCT5KI7

19” Zero-Bezel Touch Panel PC with Tempered Glass, i7 ITD19PPCG1KI7





FEATURES:



-Supports Intel Celeron CPU up to 2.0 GHz

-Low power consumption and economical solution

-Compact size and high performance

-High speed Giga LAN

-On-board IDE interface

-High precision touchscreen

-Industry level of durability against dust and powerful jetting IP65 / NEMA 4

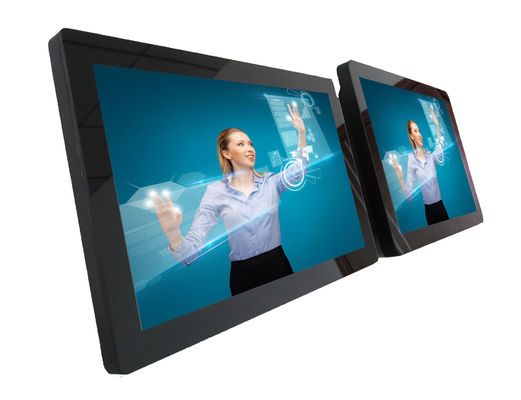

Product Display:





19" AIO industrial computer true flat surface pcap touch PC 019" AIO industrial computer true flat surface pcap touch PC 1





Applications:



19" AIO industrial computer true flat surface pcap touch PC 2
