Intel I3 I5 I7 Rugged Embedded Industrial PC With 6 USB 2 COM 2 LAN Ports

Place of Origin China
Brand Name ITD
Certification CE, FCC, RoHS
Model Number ITD-MNPC-X31-I3/I5/I7
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month
Product Details
Color Black MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Operating Humidity 10%-90% (Non Condensing)
24/7/365 Use Supported Drive Support Windows CE/XP/7/8/10, Linux,
CPU Intel Core I3/i5/i7 Graphics Intel HD, Supports 1080p
Memory 2GB, Up To Max. 8GB Storage 1*mSATA And 1*SATA
Communication WIFI, 3G, 4G Optional
High Light

fanless embedded pc

,

industrial embedded computer

Leave a Message
Product Description

Intel i3 i5 i7 Industrial Rugged Embedded Computer Fanless PC with 6 USB 2 COM 2 LAN Ports




ITD Industrial Embedded Box PC is ultra-compact industrial computer for repetitive machines and infrastructures. It utilizes an Intel® Celeron® Processor N2830, on-board non-volatile DDR3L-1333 memory and a standard SD card slot. This delivers a great combination of performance, features and functionality at an affordable price, which offer real-time performance, compact footprint and lightweight aluminum die-cast housing and are easy to service, maintenance-free, space-saving and fan-less.



Specifications:



System CPU

Intel® Core® i3/i5/i7 Processor (i3-5005U/i5-5200U/i7-5500U;

i3-6100U/i5-6200U/i7-6500U;

i3-7100U/i5-7200U/i7-7500U)

Memory 2GB, up to Max. 8GB
Chipset Intel® HD Graphics
Graphics Card Intel® HD Graphics
HDD/SSD 320GB SATA up Max. 1TB; 32GB SSD up to Max. 512GB
LAN

1 x 10/100/1000Mbps Ethernet (WIFI Optional)

(2 x 10/100/1000Mbps Optional)

OS Support Windows CE/XP/7/8/10, Linux,
Input / Output Serial Ports 2 x COM
USB Ports 2 x USB2.0, 4 X USB3.0
HDMI Port 1 x HDMI
VGA Port 1 x VGA
Audio MIC-IN, LINE-OUT
Power Port 1 x DC 12V Input (1 x ON/OFF Power Switch)
Commination(Optional) WIFI, 3/4G
Operating Temperature -10~60℃
Storage Temperature -20~70℃
Dimension 180mm x 128mm x 55mm







BENEFITES



▪ IoT gateway ready for future requirements

▪ Energy-efficient and fan-less IPC Systems

▪ Intel Core® i3/i5/i7 with 5th, 6th, 7th generations optional

▪ DDR3L-1333 up to 8 GB main memory

▪ Maintenance-free with no rotating disk (HDD)

▪ USB, Gbit Ethernet and RS232 ports

▪ Robust aluminum die-casting housing

▪ Power-optimized PC with 32- or 64-bit OS

▪ High system availability and data security

▪ High data transfer rates and redundancy

• CE, FCC, RoHS Compliance

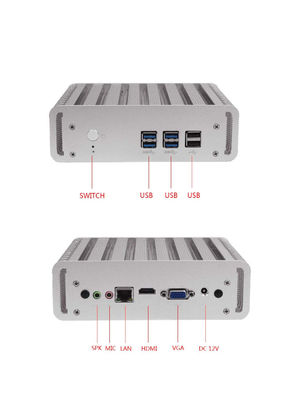

Product Display:



Intel I3 I5 I7 Rugged Embedded Industrial PC With 6 USB 2 COM 2 LAN Ports 0Intel I3 I5 I7 Rugged Embedded Industrial PC With 6 USB 2 COM 2 LAN Ports 1







APPLICATION



Intel I3 I5 I7 Rugged Embedded Industrial PC With 6 USB 2 COM 2 LAN Ports 2
