High Definition 17 Inch Open Frame Touch Screen Monitor Vertical Type
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis | Color | Black Or Silver |
|---|---|---|---|
| Housing Type | Open Frame Mount, VESA Mounting | MTBF | 50000Hours |
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Operating Humidity | 10%-90% (Non Condensing) |
| 24/7/365 Use | Supported | Resolution | 1280*1024 |
| High Light | Vertical Open Frame Touch Screen Monitor,17 Inch Open Frame Touch Screen Monitor,HDMI Input LCD Touchscreen Monitor |
||
Product Description

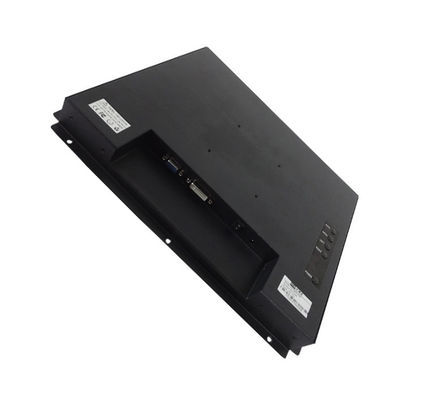

High Definition 17 Inch Open Frame Touch Screen Monitor Vertical Type
17 inch industrial open frame LCD touchscreen monitor displays with VGA,HDMI input
The 17” open frame touch screen monitor size is perfect for many applications that require a screen that is large enough to view and yet still able to hold a clear and crisp picture. For kiosk or medical applications that require 1280 x 1024 resolution, a tough durable chassis and the option for surface acoustic wave, IR, PCAP touchscreen monitors, our 19-inch touch screen monitor solutions are a viable alternative for your application needs.
BENEFITES
- Exceptional quality and highly engineered industrial monitors
- Optional touchscreens like resistive, IR, SAW, PCAP
- All steel construction designed for harsh and industrial environments
- Easy-to-install cabinet and open frame rear-mount display
- Multiple mounting options (75/100mm VESA mount and side brackets)
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project
|
Open Frame LCD Monitor
|
|
| Model Name | ITD17OFN1M1 |
| IP Rating | N/A |
|
LCD Panel
|
|
| Screen Diagonal (Inch/cm) | 17” |
| Display Active Screen Size (mm) | 337.920(H) ×270.336(V) |
| Aspect Ratio | 4:3 |
| Physical Resolution | 1280×1024 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 250nits |
| Contrast Ratio | 1000:1 |
| View Angels | 85/85/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime |
|
Touch Panel
|
|
| Touch Options | Resistive, IR, SAW, PCAP |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
|
Input / Output
|
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
|
Operation
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 15W |
|
Order Information
|
|
| 17”Open Frame LCD Monitor with Resistive Touch | ITD17OFT1M1 |
