xProduct Details
| Screen Size | 7.5'' | Resolution | 800 X 480 |
|---|---|---|---|
| Pixel Pitch | 0.069(H) X 0.207(V)mm | Panel Type | TFT |
| Active Area | 152.40(H)*91.44(V) | Colors | 16.7M |
| Brightness | 500nits | Contrast | 500:1 |
| Response Time | 12ms | Viewing Angle(Typical) | 50/60/65/65 |
| Light Source | LED Backlight With 50000Hours’Lifetime | Aspect Ratio | 16:9 |
| High Light | ITD Industrial LCD Open Frame Monitor,OSD Control LCD Open Frame Monitor,500nits Open Frame Touchscreen Monitor |
||
Product Description
ITD Industrial LCD Open Frame Monitor Screen Display Solutions

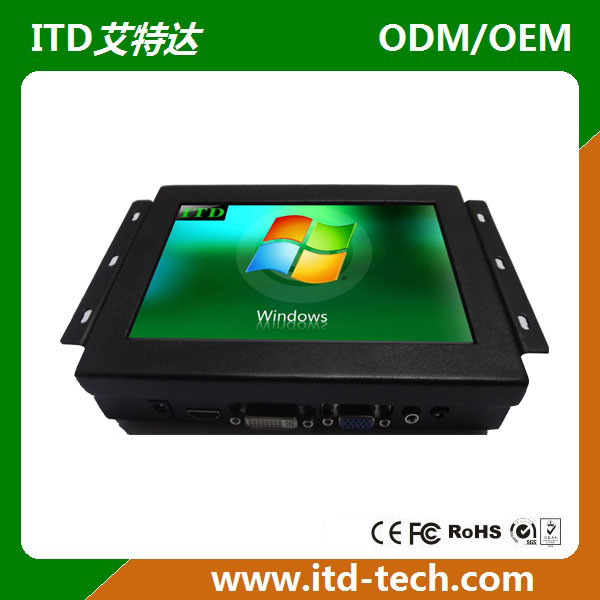

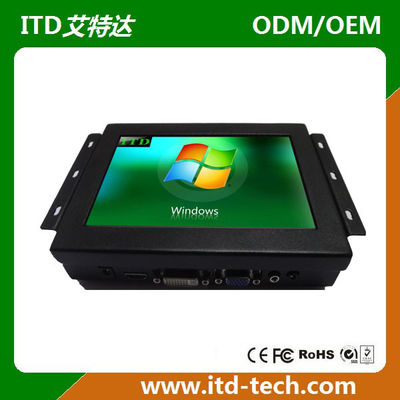

ITD 7” ITD07OFT1C2 open frame touch monitor with a front cover to protect touch sensor provides industrial or commercial users with crystal clear picture quality. The all-metal enclosures are rugged in design and fit perfectly into any enclosure. It is space-saving for your compact environment cabinet.
FEATURES
•High contrast color TFT LCD display supports resolution up to 640 x 480
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•Rugged all-metal fully enclosed chassis
•CE, FCC, RoHS Compliance
OPTIONALS
•AR/AG Tempered glass
•Sunlight Readable,
•Touch sensor technologies: resistive,Scap, Pcap
•Mounting brackets on the right/left
SPECIFICATION
| Panel | Cell Type/Glass Surface | TFT |
| Aspect Ratio/Size | 16 : 9/7"" | |
| Active Area/Pixel Pitch | 152.40(H)*91.44(V)/0.1905 | |
| Native Resolution/Colors | 800 x 480 /16.7M | |
| Brightness/Contrast | 500nits/500:1 | |
| Response Time | 12ms | |
| Viewing Angle(Typical) | 50/60/65/65 | |
| Light Source | LED | |
| Input signals | VGA, HDMI | |
| Convenient Features | Backlight adjustment, Plug & Play, OSD Multi-Languages | |
| Power | External AC-to-12VDC power adapter with universal/Auto-Sensing | |
| Power Consumption | Operation/Power Saving | Below 10W |
| Touch Panel | Resistive Touch Screen | |
| Touch interface | USB or RS232 | |
| Key Control | Power on/off with LED, Menu, Select, Adjustment(Right/Left) | |
| Order Information | 7”open frame monitor no touch/ITD07OFN1C2 | |
| 7”open frame monitor with PCT/ITD07OFT5C2 | ||
| 7”open frame monitor with SCT/ITD07OFT4C2 | ||
| 7”open frame monitor with tempered glass/ITD07OFG1C2 | ||
