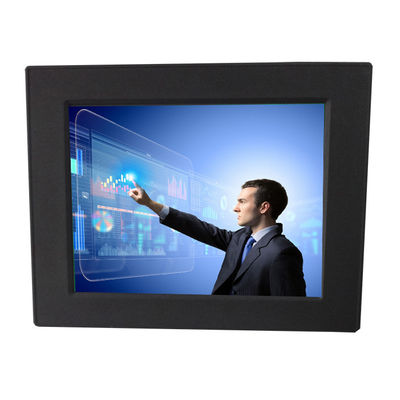

High Precision Industrial Panel Mount Monitor 8.4 Inch 800*600 Resolution

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD08PMT101
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Steel Chassis, Aluminum Front Bezel Housing Type Panel/Embedded Mount, VESA Mounting
Name Rugged Lcd Monitor Resolution 800*600
Brightness 250nits View Angles 80/80/70/70
High Light

panel mount touch screen monitor

,

industrial touch monitor

Leave a Message
Product Description

8.4 inch industrial panel mount touchscreen LCD monitor with IP65 front, embedded mount, vandal proof for industry



ITD Flat Bezel Multi-Touch Panel Mount LCD Monitors feature Projected Capacitive (PCAP) Touchscreen with 10 multi touch points, vandal proof, water proof and dust proof. Our Multi-Touch Panel Mount LCDs come in different sizes and easily integrates into your enclosure, cabinet, console, wall, kiosks or other applications.



BENEFITES

- Sealed Front Panel Design to NEMA 4/IP65

- Multi-Touch (PCT / PCAP) Touchscreen

- Rugged aluminum front bezel and aluminum alloy back chassis

- VGA/HDMI/DVI video connectors

- Easy to Service & Maintain in the field

- LED Backlight with 50000h



Panel Mount LCD Monitor



Model Name ITD08PMN101
IP Rating N/A

LCD Panel



Screen Diagonal (Inch) 8.4”
Display Active Screen Size (cm) 170.4(H)×128.7(V)
Aspect Ratio 4:3
Physical Resolution 800×600
Maximum Resolution Supported 1920×1080
Colors 262K
Brightness (cd/m²) 250
Contrast Ratio 600:1
View Angels 80/80/70/70
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel



Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Input / Output



Video Input 1 × VGA
1 × DVI-I
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB
Power Connector 1 × DC2.0

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power



Power Indicator Green LED
Power Input DC 12V
Power Consumption 8.68W

Order Information



8.4”Panel Mount LCD Monitor with Resistive Touch ITD08PMT101
8.4”Panel Mount LCD Monitor with IR Touch ITD08PMT201
8.4”Panel Mount LCD Monitor with SAW Touch ITD08PMT301
8.4”Panel Mount LCD Monitor with PCAP Touch ITD08PMT501
8.4”Panel Mount LCD Monitor with Tempered Glass ITD08PMG101
