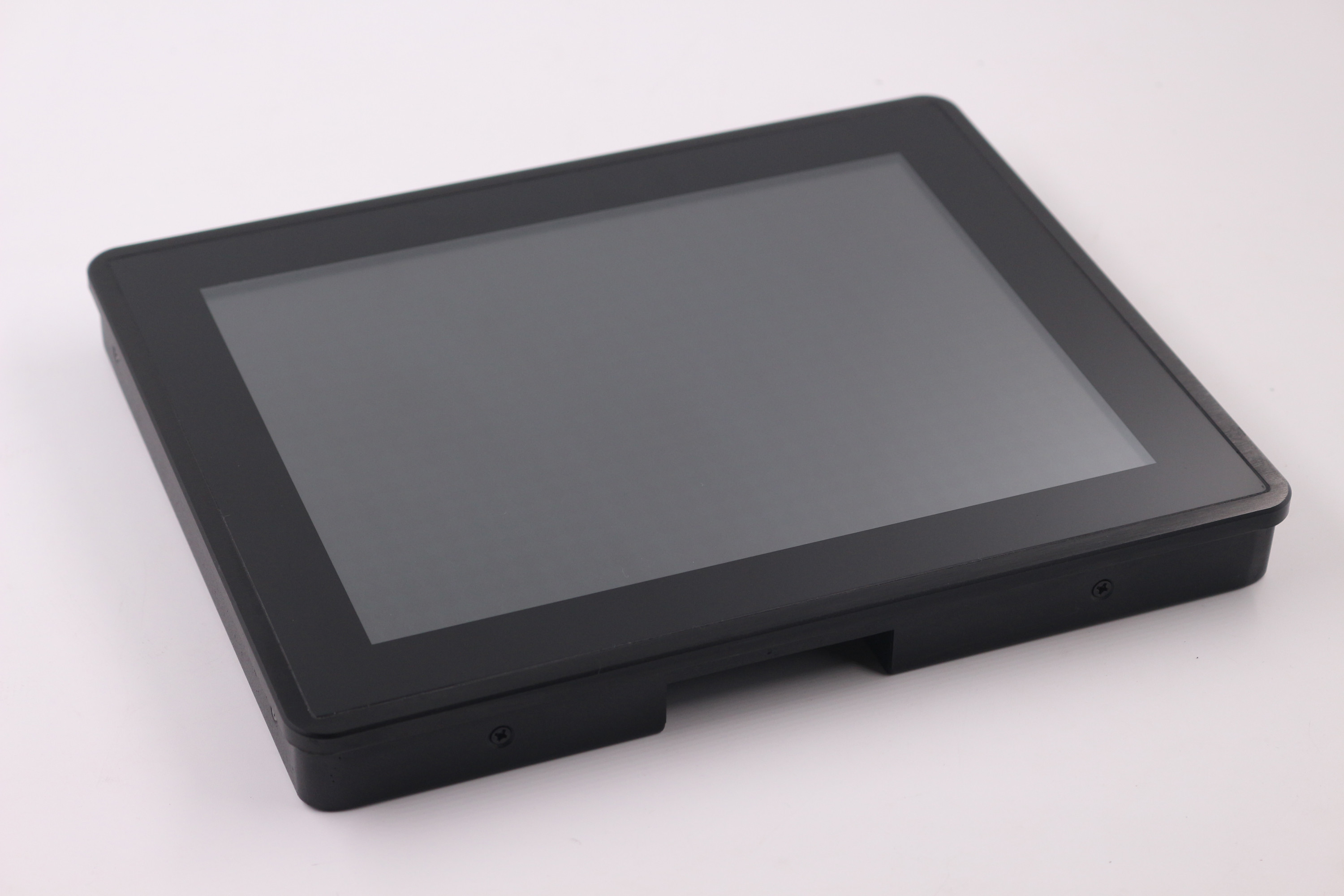

350 Nits Touch Screen Industrial LCD Monitor 9.7'' IPS 1024x768 With Single USB Port
1pcs
MOQ
TBA
Price
350 Nits Touch Screen Industrial LCD Monitor 9.7'' IPS 1024x768 With Single USB Port
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ITD
Certification: CE, FCC, RoHS
Model Number: ITD09CMT50U
High Light:

industrial lcd panel

,

industrial display monitors

Payment & Shipping Terms
Packaging Details: 1-5pcs/CTN, Safe, Firm
Delivery Time: 5-15 Business Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000PCS/Month
Specifications
Housing Material: Steel Chassis, Flat Surface Optional
Color: Black Or Silver

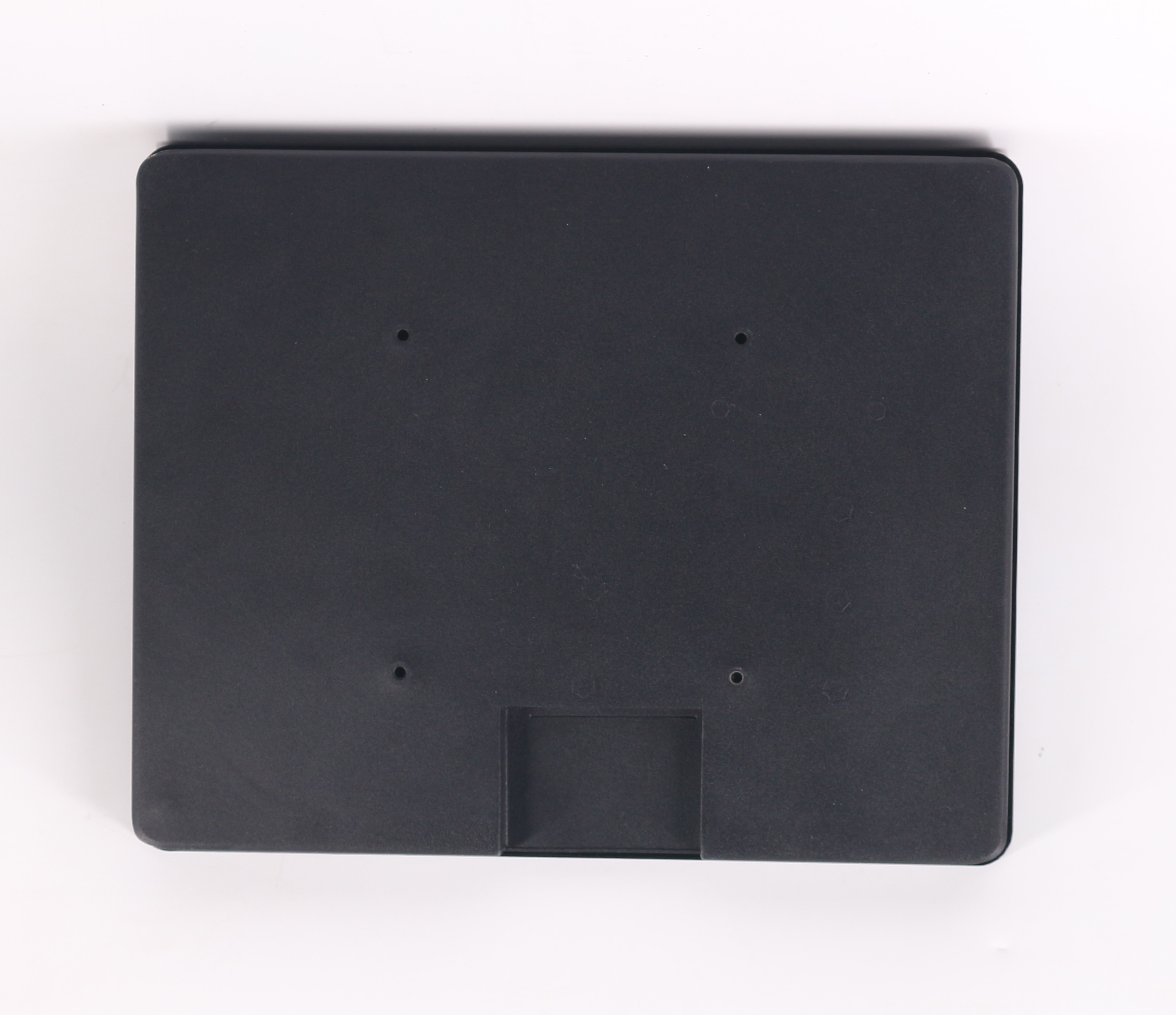

Housing Type: VESA Mounting, Panel Mounting Optional
MTBF: 50000h
Operating Temperature: -10~60℃
Burning Test: 48h
24/7/365 Use: Supported
Resolution: 1024*768
I/O: Single USB Port For Video Input, Touch Connection And Power Supply
Product Description

9.7 inch IPS 1024x768 350nits touch screen lcd video monitor with single USB port



ITD 9.7” ITD09CMN10U rugged chassis USB powered touch monitor is designed to help you streamline your tasks and create a more efficient and enjoyable end-user experience. Its capacitive and non-touch options have HDMI compatibility right out of the box, which is designed to be highly resilient and durable, lasting for years of consistently efficient performance to benefit industrial/commercial or business system-related needs.



FEATURES

•High contrast color TFT LCD display supports resolution upto 1024 x 768

•Supports DDC 1/2B for Plug & Play compatibility•Utilizes Displaylink for power, touch and video over singleUSB connection

•All steel construction fit to harsh and industrialenvironments

•Ultra low power consumption, highreliability and durability

•CE,FCC, RoHS Compliance



OPTIONALS

•AR/AG Tempered glass



•Touch sensor technologies: Resistive, PC



SPECIFICATION



Panel Cell Type/Glass Surface TFT
Aspect Ratio/Size 9.7” 4:3
Active Area/Pixel Pitch 196.608(W) x 147.456(H)/0.192mm
Native Resolution/Colors 1024 x 768 /262K
Brightness/Contrast 400nits/600:1
Response Time 30ms
Viewing Angle(Typical) 80/80/80/80
Light Source LED backlight with 50000hours’lifetime
Input Signals USB 2.0 (USB 3.0 Optional)
Convenient Features Backlight Adjustment, Plug & Play
Power USB 2.0 (USB 3.0 Optional)
Power Consumption Operation/Power Saving Below 8W
Touch Panel Projected Capacitive Touch Panel
Touch Interface USB 2.0 (USB 3.0 Optional)
Operating Condition Temperature/Humidity -10~60℃, 10%~90% (Non Condensing)
Storage Condition Temperature/Humidity -20~70℃, 10%~90% (Non Condensing)
Order Information 9.7” Chassis USB monitor no touch/ITD09CMN10U
9.7” Chassis USB monitor with tempered glass/ITD09CMG10U

9.7” Chassis USB monitor with resistive touch/ITD09CMT10U
