Intel J1900 Windows RS485 Embedded MINI PC Fanless

Place of Origin China
Brand Name ITD
Certification CE, FCC, RoHS
Model Number ITD-MNPC-J1900B
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month
Product Details
CPU Intel Bay Trail J1900 Quad-Core 2.0GHz OS Support Windows /7/8/10, WES 7/10, Linux
Chipset Intel® SoC LAN 2 X GbE RJ45 Intel I211/i210
Serial Ports 6 X DB9 COM Including 4 X RS485/RS422 USB Ports 1 X USB3.0, 5 X USB2.0
Video Port 1 X HDMI, 1 X VGA
High Light

Intel J1900 Embedded MINI PC

,

RS485 Embedded MINI PC

,

Fanless Embedded Box PC

Leave a Message
Product Description

MINI PC embedded industrial PC case



ITD Industrial Embedded Box PC is ultra-compact industrial computer for repetitive machines and infrastructures. It utilizes an Intel® Bay Trail-M Processor J1900, on-board non-volatile DDR3L-1333 memory and fan-less design. This delivers a great combination of performance, features and functionality at an affordable price, which offer real-time performance, compact footprint and lightweight aluminum die-cast housing and are easy to service, maintenance-free, space-saving and fan-less.

Specifications:





SPECIFICATION

System CPU Intel® Bay Trail J1900 Quad-Core 2.0GHz
Memory 2GB, up to Max. 8GB
Chipset Intel® SoC
Graphics Card Intel HD Graphics Support 1080P
Storage 1 x MSATA; 1 x HDD/SDD
LAN 2 x GbE RJ45 Intel i211/i210
OS Support Windows /7/8/10, WES 7/10, Linux,
Input / Output Serial Ports 6 x DB9 COM including 4 x RS485/RS422
USB Ports 1 x USB3.0, 5 x USB2.0
Video Port 1 x HDMI, 1 x VGA
PS2 1 x PS2 (Keyboard & Mouse two in one)
GPIO 14 x GPIO ( 7 IN, 7 OUT)
Others 1 x LPT, 1 x Earphone Jack, 1 x Microphone; 1 x DIP Switch, supporting ATX/AT boot mode
Button 1 x Power Button, 1 x Reset Button, 1 x Clear CMOS Button
Power Port 1 x 3pin Phoenix Connector, 9~36V input
Expansion Slot 1 x Mini-PCIe Half Card, Supporting WIFI/BT; 1 x Mini-PCIe Full Card, Supporting WIFI/BT/3G/4G; Expansion IO x 1, supporting LPC, USB, PCIE
Operating Temperature -20 to 60 C
Storage Temperature -30~70℃
Storage Humidity 10%~90% @30℃, Non Condensing

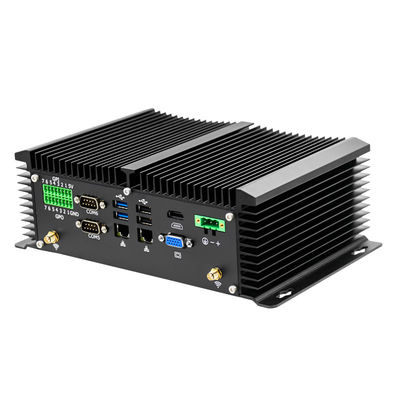

Picture:


MINI PC case



Intel J1900 Windows RS485 Embedded MINI PC Fanless 1
Intel J1900 Windows RS485 Embedded MINI PC Fanless 2

PC box


Intel J1900 Windows RS485 Embedded MINI PC Fanless 4
