Intel I3 I5 I7 RS232 Embedded Windows MINI PC MSATA SSD

  • Intel I3 I5 I7 RS232 Embedded Windows MINI PC MSATA SSD
  • Intel I3 I5 I7 RS232 Embedded Windows MINI PC MSATA SSD
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD-MNPC- i3/i5/i7B
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 7-10 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CPU Intel® Core I3/i5/i7 4th,5th,6th,7th,8th,10th Optional GPIO 14 X GPIO (7 IN, 7 OUT)
Power Port 1 X 3pin Phoenix Connector, 9~36V Input Expansion Slot 1 X Mini-PCIe Half Card, Supporting WIFI/BT; 1 X Mini-PCIe Full Card, Supporting
Others 1 X LPT, 1 X Audio Line OUT, 1 X MIC IN; 1 X DIP Switch, Supporting ATX/AT Boot Mode, 2 X Antenna Port For WIFI/3G/4G, 1 X Phoenix Connector For Remote Switch Options WIFI/BT/3G/4G; Expansion IO X 1, Supporting LPC, USB, PCIE
Watchdog Timing 1~255s Programmable Setting
High Light

RS232 Embedded Windows MINI PC

,

Intel I3 Embedded Windows MINI PC

,

MSATA SSD MINI PC Box
Leave a Message
Product Description

Intel i3 i5 i7 MINI PC box industrial Windows MINI computer



- Brushed Full Aluminum Alloy Black color shell, Exquisite production craft on outside design.

- Fanless system without cooling fan, no any noise, work as long as 24 hours.

- Built-in Wi-Fi or Bluetooth with dual external antennas for option.

- Dual RJ45 Gigabit LAN and 4 RS232 COM ports fit for industrial field.

- Can install MSATA SSD+2.5” SATA HDD together.

- Support VGA + HDMI dual display output synchronously.





SPECIFICATION


System CPU Intel® Core i3/i5/i7 4th,5th,6th,7th,8th,10th optional
Memory 2 x DDR4 SO-DIMM, up to Max. 16GB
Chipset Intel® SoC
Graphics Card Intel HD Graphics Support 1080P
Storage 1 x MSATA; 1 x HDD/SDD
LAN 2 x GbE RJ45 Intel i211/i210
OS Support Windows /7/8/10, Linux,
Input / Output Serial Ports 2 x DB9 RS232, 4 x DB9 RS232/RS485/RS422
USB Ports 4 x USB3.0, 2 x USB2.0(1 x USB2.0 as Watchdog Interface)
Video Port 1 x HDMI, 1 x VGA
PS2 1 x PS2 (Keyboard & Mouse two in one)
GPIO 14 x GPIO (7 IN, 7 OUT)
Others 1 x LPT, 1 x Audio Line OUT, 1 x MIC IN; 1 x DIP Switch, supporting ATX/AT boot mode, 2 x Antenna Port for WIFI/3G/4G, 1 x Phoenix Connector for Remote Switch
Button 1 x Power Button, 1 x Power Input, 1 x Reset Button, 1 x Clear CMOS Button
Power Port 1 x 3pin Phoenix Connector, 9~36V input
Expansion Slot 1 x Mini-PCIe Half Card, Supporting WIFI/BT; 1 x Mini-PCIe Full Card, Supporting WIFI/BT/3G/4G; Expansion IO x 1, supporting LPC, USB, PCIE
Watchdog Timing 1~255s Programmable Setting
Operating Temperature -20 to 70 C
Storage Temperature -30~70℃
Storage Humidity 95% @40℃, Non Condensing


Product Display

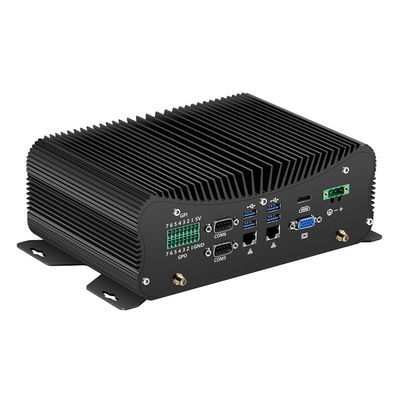

Intel I3 I5 I7 RS232 Embedded Windows MINI PC MSATA SSD 0

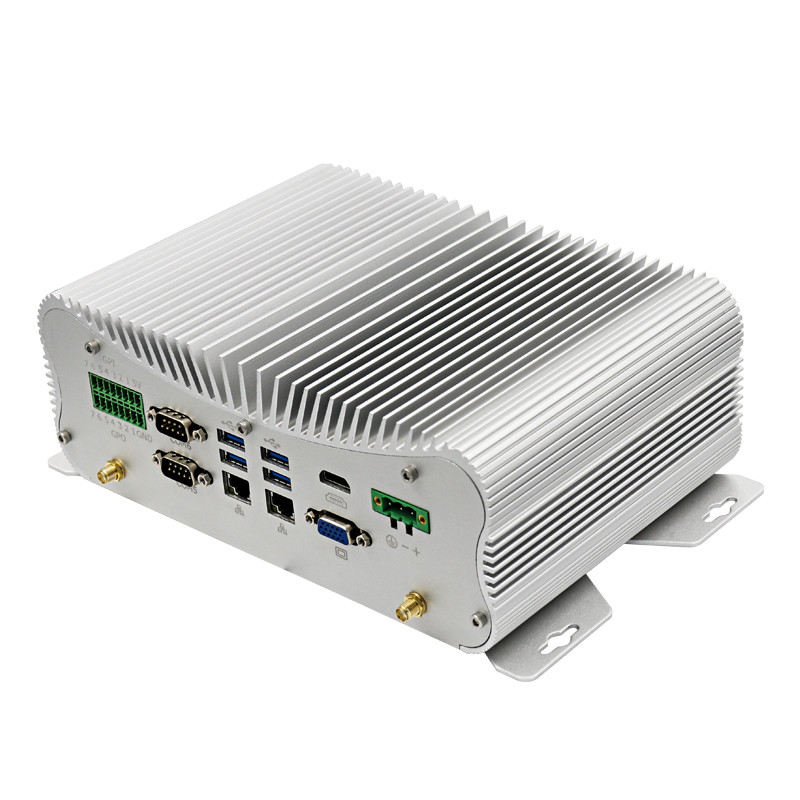

Intel I3 I5 I7 RS232 Embedded Windows MINI PC MSATA SSD 1Intel I3 I5 I7 RS232 Embedded Windows MINI PC MSATA SSD 2



Intel I3 I5 I7 RS232 Embedded Windows MINI PC MSATA SSD 3


Intel I3 I5 I7 RS232 Embedded Windows MINI PC MSATA SSD 4
