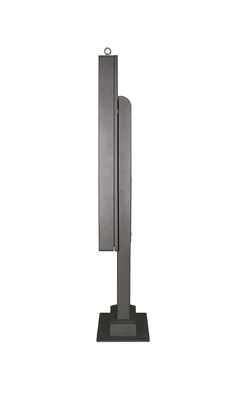

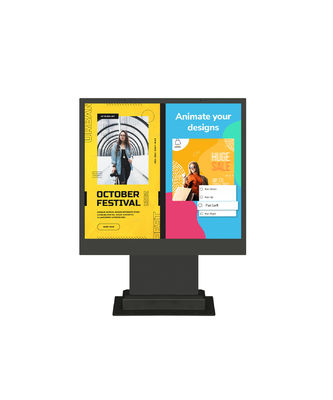

Dual Dustproof Outdoor Kiosk Screen Waterproof IP67 Digital Signage Display

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITDxxCMAIPL****
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 2000PCS/Month
Product Details
Native Resolution 1920x1080, 3840x2160 Brightness 2000nits~5000nits Optional
Touch Panel PCAP, IR Touch Optional Or AR Glass Vandal Proof Housing Material Steel With Outdoor Painting Anti-rust
System Monitor, Android, X86 Operating Temperature -40~55℃
IP Level Full IP67 MTBF 50000hours
High Light

Dual Dustproof Outdoor Kiosk Screen


Waterproof Outdoor Kiosk Screen


IP67 Digital Signage Display

Leave a Message
Product Description

Dual screens Kiosk Outdoor Digital Signage Display Totem Advertising Player LCD Screen Kiosk


FEATURES OF Outdoor Kiosk Screen



  • All weather sunlight readable LCD, Brightness from 1500nits -5000nits, LCD will not turn black under direct sunlight
  • Intelligent air conditioner system, Working high temperature up to 55℃

  • Intelligent air conditioner system, Working low temperature below to -40℃

  • Unique full-sealed enclosure for outdoor use, Waterproof and dustproof meet IP65



Specifications of dual screens outdoor kiosk


Model Name ITD55CMAIPL****
IP Rating IP65
Single Media Player Option
1 ×USB 2.0, 1×SD Card Slot, 1×HDMI Input
Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV
Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE
Picture Formats Supported: JPEG, BMP, GIF, PNG
File Formats Supported: FAT, FAT32, NTFS
PC Systems Options
ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel NM10 Express Chipset: Intel HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch/cm) 55”
Display Active Screen Size (cm) 1209.6(H)×680.4(V)
Aspect Ratio 0.672916667
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m2) 1500 cd/m2
Contrast Ratio 3000:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime
Touch Panel Available for Network Version
Touch Options IR, PCAP, Touch Foil
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi
Power /Speakers
Power Indicator Green LED
Power Input Internal Power Supply, AC 100V~240V
Power Consumption 290W
Speakers 2×5W
