fully embedded smart OPS PC Module Media Player Intel I3 I5 I7 Windows 10 Skylake

  • fully embedded smart OPS PC Module Media Player Intel I3 I5 I7 Windows 10 Skylake
  • fully embedded smart OPS PC Module Media Player Intel I3 I5 I7 Windows 10 Skylake
  • fully embedded smart OPS PC Module Media Player Intel I3 I5 I7 Windows 10 Skylake
Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD-MNPC-6300U-OPS-PxxN
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,wooden case,pallet
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
FEATURES OPS Slot-in Optional Processor Intel 6th&7th Generation FCBGA1356 Celeron, Core I3 I5 I7 CPU; 6th Generation: 3855U,3955U, I3-6006U/6100U, I5-6200U/6300U, I7-6500U/6600U 7th Generation: 3865U,3965U, I3-7020U/7100U/7130U, I5-7200U/7300U, I7-7500U/7600U
Operating Temperature -20 To 60 C Dimension 180*195*32mm
LAN 1 X 10/100/1000Mbps Ethernet (WIFI Optional) (2 X 10/100/1000Mbps Optional) I/O 1*DC-in, 1*VGA, 1*HDMI, 2*USB3.0, 1*LAN, 2*USB2.0, 1*SPK, 1*Mic-in, 1*80pin OPS Slot, 1*one-key Recovery System Button,1*CMOS Button,1*Reset Button
Power Supply Support DC 12V /19V; DC Port: 5.5*2.5mm Recommended 12V 5A/7A/10A Or 19V 3A (or Above). CPU Code Name Skylake, Kabylake
OS Support Windows 10, Windows 8, Windows 7, Linux Ubuntu Warranty 2 Years
High Light

Embedded OPS PC module

,

6300U OPS PC module

,

Skylake smart ops pc module
Leave a Message
Product Description

OPS computer module media player Intel i3 i5 i7 Windows 10 Skylake



Features of OPS computer module:



The OPS Slot-in industrial mini PCs support a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th and 7th generation Intel processors (Skylake & Kabylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232.



Specifications of OPS :



Specification

Optional OPS Casings P30N, P33N, P42N



Casing Dimensions

 ITD-MNPC-xxxxU-OPS-P30N: 180*195*30mm.
ITD-MNPC-xxxxU-OPS-P33N: 180*195*33mm.
ITD-MNPC-xxxxU-OPS-P42N: 180*195*42mm.



Optional Processor

TDP: 15W, low power consumption, energy conservation;

Support Intel 6th&7th generation FCBGA1356 Celeron, Core i3 i5 i7 CPU;

6th generation: 3855U,3955U, i3-6006U/6100U, i5-6200U/6300U, i7-6500U/6600U

7th generation: 3865U,3965U, i3-7020U/7100U/7130U, i5-7200U/7300U, i7-7500U/7600U
Chipset Integrated Single Chip in CPU
Memory 1*Laptop DDR4 2133/2400MHz low voltage 1.2V Memory channel, max.16GB RAM
Graphics Integrated Intel HD Graphics 510/520/610/620 in CPU
Heat Dissipation Thin, cool, silent fan
Power Supply

Support DC 12V /19V; DC port: 5.5*2.5mm

Recommended 12V 5A/7A/10A or 19V 3A (or above).
Ethernet

1*Realtek 8111H Gigabit Ethernet RJ45 LAN port; Optional dual LAN ports.

Support wake-on-LAN and PXE diskless boot function.



Display

Support single display, dual display copy & expansion, single display under DOS;

Support H.264,3D,2K,1080P, FHD,4K, UHD display;

1*VGA interface supports Max resolution 1920*1200@60Hz;

1*HDMI 1.4 interface supports Max resolution 4096*2304@24/30Hz.

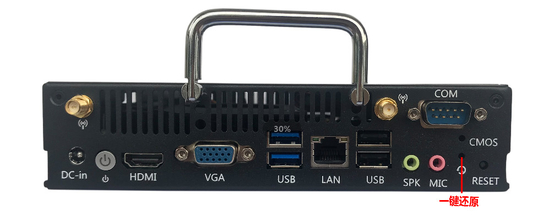

External I/O ports

1*DC-in, 1*VGA, 1*HDMI, 2*USB3.0, 1*LAN, 2*USB2.0, 1*SPK, 1*Mic-in, 1*80pin OPS slot,

1*one-key recovery system button,1*CMOS button,1*Reset button, etc.

Optional 1*RS232 COM (P42N casing).
Built-in Pins

VGA, HDMI, 4PIN ATX, 4*USB2.0, F_PANEL, AUTO_SW, optional RS232 COM, CLR_CMOS, GPIO,

2*FAN, etc.
Sound Integrated Realtek ALC662 HD digital audio decoder,6-channel high-fidelity audio controller.



Hard Disk

1*2.5inch SATA slot for SSD or HDD;

1*SATA3.0 port for 2.5inch SSD or HDD;

1*MSATA3.0 slot (SATA, USB signals) for Mini SATA(MSATA) SSD;

If you need NVME(PCIE) signal in MSATA slot, please tell us to change in advance.
Power Switch 1*Power button
Battery 3V CR2032 button Battery
WIFI

2*WIFI holes for antenna masts.

1*Mini PCIE slot (PCIE, USB signals) supports WIFI,3G/4G/Bluetooth/GPS module.
COM (Serial port)

P30N P33N casings have no COM port but have 1*RS232 COM pin.

P42N casing has 1*RS232 COM port, but has no COM pin.
Operating Environment

Operating Temperature: - 20℃~60℃

Working Humidity: 5%~95% Relative humidity, no condensation
BIOS AMI BIOS; Support power on, timing switch, remote switch, intelligently identify devices
Watch Dog Watch Dog programming supports hardware reset function (256 levels, 0~255 seconds)
Power On

By default, the PC does not support “Power On and Boot”, if you need, please tell us to set in advance.

The AUTO_SW pin, BIOS support the power on and boot settings.
Operating System Supports Windows 10, Windows 8, Windows 7, Linux Ubuntu
Certificates CE, FCC, RoHS
Casing Color Black
Casing Material Metal
LOGO ITD/OEM
Installation Method Wall hanging, desktop
Net Weight 2.0KG/set
Accessories Power supply, optional OPS expansion card
Warranty 2 Years



Hard Disk Description
Intel CPU SATA3.0 port (SATA1) 2.5inch SATA slot (SATA2) mSATA slot
When the PC uses Celeron CPU Not support Support Support
When the PC uses Core CPU Support Support Suppor



Order Information

Series Pictures
ITD-MNPC-3855U-OPS-P30N/P33N OPS PC with Intel Celeron 6th Gen. 3855U 1.6GHz, I/O listed on above
ITD-MNPC-3955U-OPS-P30N/P33N OPS PC with Intel Celeron 6th Gen. 3955U 2.0GHz, I/O listed on above
ITD-MNPC-6006U-OPS-P30N/P33N OPS PC with Intel Core 6th Gen. 6006U 2.0GHz, I/O listed on above
ITD-MNPC-6100U-OPS-P30N/P33N OPS PC with Intel Core 6th Gen. 6100U 2.3GHz, I/O listed on above
ITD-MNPC-6200U-OPS-P30N/P33N OPS PC with Intel Core 6th Gen. 6200U 2.3GHz, I/O listed on above
ITD-MNPC-6300U-OPS-P30N/P33N OPS PC with Intel Core 6th Gen. 6300U 2.4GHz, I/O listed on above
ITD-MNPC-6500U-OPS-P30N/P33N OPS PC with Intel Core 6th Gen. 6500U 2.5GHz, I/O listed on above
ITD-MNPC-6600U-OPS-P30N/P33N OPS PC with Intel Core 6th Gen. 6600U 2.6GHz, I/O listed on above
ITD-MNPC-3865U-OPS-P30N/P33N OPS PC with Intel Core 7th Gen. 3865U 1.8GHz, I/O listed on above
ITD-MNPC-3965U-OPS-P30N/P33N OPS PC with Intel Core 7th Gen. 3965U 2.2GHz, I/O listed on above
ITD-MNPC-7020U-OPS-P30N/P33N OPS PC with Intel Core 7th Gen. 7020U 2.3GHz, I/O listed on above
ITD-MNPC-7100U-OPS-P30N/P33N OPS PC with Intel Core 7th Gen. 7100U 2.4GHz, I/O listed on above
ITD-MNPC-7130U-OPS-P30N/P33N OPS PC with Intel Core 7th Gen. 7130U 2.7GHz, I/O listed on above
ITD-MNPC-7200U-OPS-P30N/P33N OPS PC with Intel Core 7th Gen. 7200U 2.5GHz, I/O listed on above
ITD-MNPC-7300U-OPS-P30N/P33N OPS PC with Intel Core 7th Gen. 7020U 2.6GHz, I/O listed on above
ITD-MNPC-7500U-OPS-P30N/P33N OPS PC with Intel Core 7th Gen. 7500U 2.7GHz, I/O listed on above
ITD-MNPC-7600U-OPS-P30N/P33N OPS PC with Intel Core 7th Gen. 7600U 2.8GHz, I/O listed on above
ITD-MNPC-xxxxU-OPS-P42N OPS PC with above options but with an extra COM port

Definitions of 80Pins OPS Slot

PIN Signal Description Channel   Pin Signal Description Channel
  1.
 DDP_3N DisplayPort OUT
  1.
 RSVD Reserved pins -
  1.
 DDP_3P DisplayPort OUT
  1.
 RSVD Reserved pins -
  1.
 GND Ground -
  1.
 RSVD Reserved pins -
  1.
 DDP_2N DisplayPort OUT
  1.
 RSVD Reserved pins -
  1.
 DDP_2P DisplayPort OUT
  1.
 RSVD Reserved pins -
  1.
 GND Ground -
  1.
 RSVD Reserved pins -
  1.
 DDP_1N DisplayPort OUT
  1.
 RSVD Reserved pins -
  1.
 DDP_1P DisplayPort OUT
  1.
 RSVD Reserved pins -
  1.
 GND Ground -
  1.
 RSVD Reserved pins -
  1.
 DDP_0N DisplayPort OUT
  1.
 SYS_FAN System Fan Control OUT
  1.
 DDP_0P DisplayPort OUT
  1.
 UART_RXD UART 3.3V IN
  1.
 GND Ground -
  1.
 UART_TXD UART 3.3V OUT
  1.
 DDP_AUXN DisplayPort I/O
  1.
 GND Ground -
  1.
 DDP_AUXP DisplayPort I/O
  1.
 StdA_SSRX- USB3.0 IN
  1.
 DDP_HPD DisplayPort IN
  1.
 StdA_SSRX+ USB3.0 IN
  1.
 GND Ground -
  1.
 GND Ground -
  1.
 TMDS_CLK- DVI-D OUT
  1.
 StdA_SSTX- USB3.0 OUT
  1.
 TMDS_CLK+ DVI-D OUT
  1.
 StdA_SSTX+ USB3.0 OUT
  1.
 GND Ground -
  1.
 GND Ground -
  1.
 TMDS0- DVI-D OUT
  1.
 USB_PN2 USB I/O
  1.
 TMDS0+ DVI-D OUT
  1.
 USB_PP2 USB I/O
  1.
 GND Ground -
  1.
 GND Ground -
  1.
 TMDS1- DVI-D OUT
  1.
 USB_PN1 USB I/O
  1.
 TMDS1+ DVI-D OUT
  1.
 USB_PP1 USB I/O
  1.
 GND Ground -
  1.
 GND Ground -
  1.
 TMDS2- DVI-D OUT
  1.
 USB_PN0 USB I/O
  1.
 TMDS2+ DVI-D OUT
  1.
 USB_PP0 USB I/O
  1.
 GND Ground -
  1.
 GND Ground -
  1.
 DVI_DDC_DATA DVI-D I/O
  1.
 AZ_LINEOUT_L Audio-Lch OUT
  1.
 DVI_DDC_CLK DVI-D I/O
  1.
 AZ_LINEOUT_R Audio-Rch OUT
  1.
 DVI_HPD DVI-D IN
  1.
 CEC Consumer Electronic Control I/O
  1.
 GND Ground -
  1.
 PB_DET Pluggable Board Detect OUT
  1.
 +12V~+19V Power -
  1.
 PS_ON# Pluggable Signal ON IN
  1.
 +12V~+19V Power -
  1.
 PWR_STATUS PowerGood

OUT

(OC)
  1.
 +12V~+19V Power -
  1.
 GND Ground -
  1.
 +12V~+19V Power -
  1.
 GND Ground -
  1.
 +12V~+19V Power -
  1.
 GND Ground -
  1.
 +12V~+19V Power -
  1.
 GND Ground -
  1.
 +12V~+19V Power -
  1.
 GND Ground -
  1.
 +12V~+19V Power -
  1.
 GND Ground -

Notice:

1. The I/O column definition is in reference to the pluggable board.

2. OC=Open Collector.

3. For USB3.0 implementation, pins #60 and #61 should be used to complement the Super Speed USB signals.

ATTENTION

  1. The 80pin OPS slot doesn't support hot-swapping. If you hot-swap, it is easy to damage the motherboard.
  2. By default, the PC has no SIM card slot. If you need the SIM card slot for 4G module, please tell us to add in advance.
  3. Changing the signal or adding the network port will affect the number of USB.
  4. Clearing CMOS will cause the previous BIOS settings to be cleared and set to the original factory setting.

Please do not clear the CMOS when the PC is powered on or is charged, so as not to damage the motherboard.

  1. By default, the PC only has 1*LAN port. If you need 2*LAN ports, the casing needs to be redesigned.
  2. Set the“Power On and Boot”through jumper“AUTO_SW”pin or BIOS setting. The two setup methods cannot be performed at the same time. Otherwise, they will conflict.
  3. When the PC uses Celeron CPU, there is 1*SATA port; When the PC uses Core CPU, there is 2*SATA ports.

Displays of OPS:

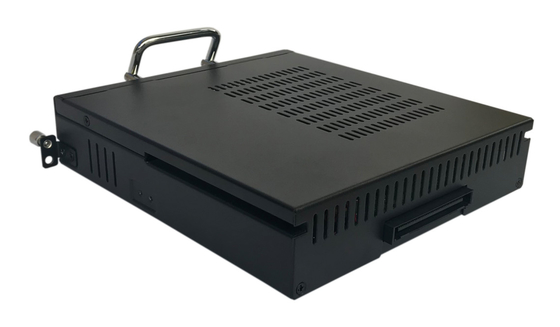

fully embedded smart OPS PC Module Media Player Intel I3 I5 I7 Windows 10 Skylake 0
