Compact Industrial Embedded Computer DIN Rail PC For Industrial IoT M2M

  • Compact Industrial Embedded Computer DIN Rail PC For Industrial IoT M2M
  • Compact Industrial Embedded Computer DIN Rail PC For Industrial IoT M2M
  • Compact Industrial Embedded Computer DIN Rail PC For Industrial IoT M2M
Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD-MNPC-X31T
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,wooden case,pallet
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mounting DIN Rail Bracket Optional Processor Intel Skylake I3-6100U/Kaby Lake I3-7100U 2.3GHz
Operating Temperature -20 To 60 C Dimension 148mm X 106.2mm X 45mm
LAN 2 X 10/100/1000Mbps Ethernet (WIFI Optional) (2 X 10/100/1000Mbps Optional) I/O 1*DC-in, 1*HDMI, 4*USB3.0,1*MIC-IN/LINE-OUT
Power Supply DC 12~24V Input CPU Code Name Skylake, Kabylake
OS Support Windows 10, Windows 8, Windows 7, Linux Ubuntu Warranty 2 Years
High Light

Compact Industrial Embedded Computer

,

24V DC Industrial Embedded Computer

,

Industrial IoT DIN rail PC
Leave a Message
Product Description

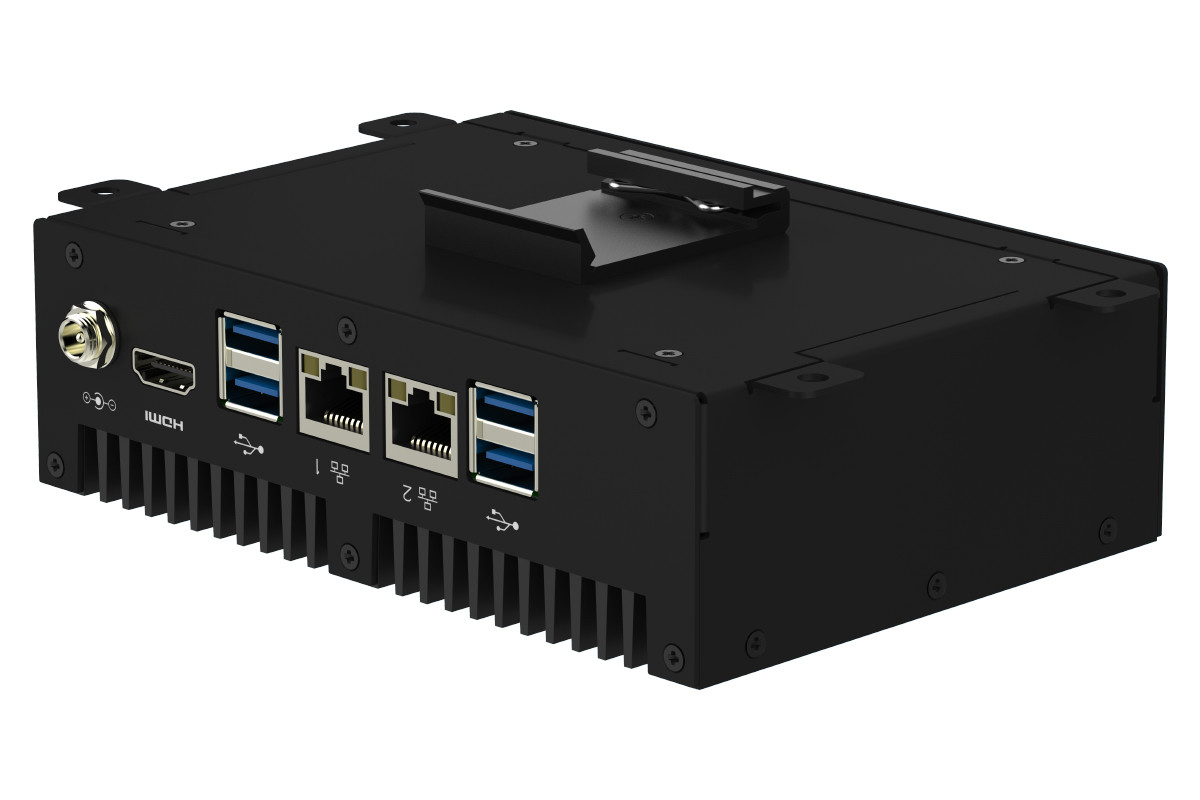

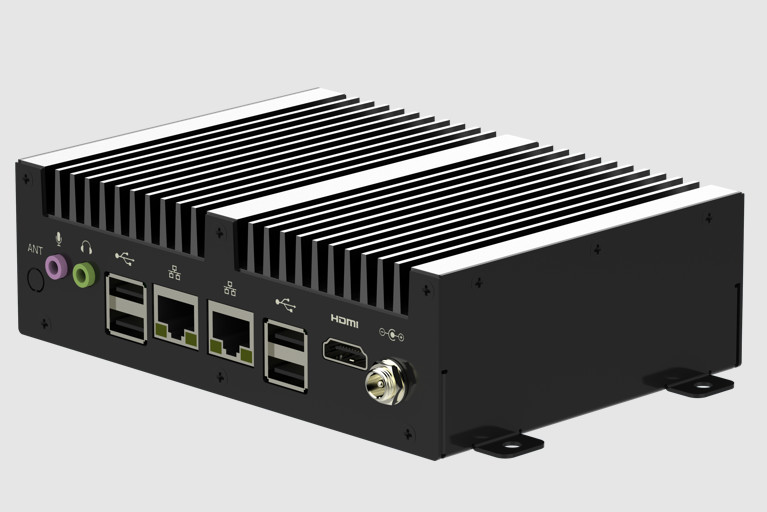

DIN rail industrial embedded box PC computer for industrial IoT M2M



ITD Compact DIN rail PC is equipped with Intel Skylake i3-6100U/Kaby Lake i3-7100U 2.3GHz, Intel HD Graphics supports DirectX 11.1, OpenCL /GL, and 4K videos Quick Sync encoder, 24V DC (12 V to 24 V) isolated industrial power supply, high-speed USB 3.0 and Gigabit Ethernet ports I/O ports to form a space-saving industrial controller in the control cabinet. Open design with Windows Embedded and Linux system for maximum system flexibility, operation, programmability and sustainability. The extended operating temperature range between -20 and +60 °C enables application in climatically demanding environments.



Features of DIN rail PC:



●IoT gateway ready for future requirements

●Energy-efficient and fan-less IPC Systems

●Intel Skylake i3-6100U/Kaby Lake i3-7100U 2.3GHz

●DDR4L up to 16 GB main memory

●Field-Replaceable storage and memory

●Robust aluminum die-casting housing

●Power-optimized PC with 32- or 64-bit OS

●High system availability and data security

●High data transfer rates and redundancy

●CE, FCC, RoHS Compliance



Specifications of DIN rail PC:



SPECIFICATION

System CPU

Intel® Skylake i3-6100U/Kaby Lake i3-7100U 2.3GHz

Intel i5-6200U, Intel i7-6500U(Optional)
BIOS SPI AMI EEI BIOS
Memory 4GB, up to Max. 16GB
Chipset Intel® SoC
Graphics Card Intel® HD Graphics
Storage 1 x mSATA
LAN 2 x RJ45, 10/100/1000 Mbps
OS Support Windows 7, Windows 8, Windows Embedded, Windows 10, Linux
USB Ports 4 x USB3.0
HDMI Port 1 x HDMI
Audio MIC-IN/LINE-OUT
Power Port 1 x DC Jack (5.5 x2.5) DC12~24V
GPIO 8 x GPIO(Optional)
Communication WIFI, 4G optional
Operating Temperature -20~60℃
Storage Temperature -40~70℃
Relatively Humidity 10~95% @ 10C(Non Condensing)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Dimension 148mm x 106.2mm x 45mm



Displays of DIN rail industrial embedded box PC:



Compact Industrial Embedded Computer DIN Rail PC For Industrial IoT M2M 0

Compact Industrial Embedded Computer DIN Rail PC For Industrial IoT M2M 1
