Side Mounting Mini Box PC Fanless Industrial Computer Windows 11 I5 8265u Whiskey Lake

  • Side Mounting Mini Box PC Fanless Industrial Computer Windows 11 I5 8265u Whiskey Lake
  • Side Mounting Mini Box PC Fanless Industrial Computer Windows 11 I5 8265u Whiskey Lake
  • Side Mounting Mini Box PC Fanless Industrial Computer Windows 11 I5 8265u Whiskey Lake
Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD-MNPC-8265U-8632
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,wooden case,pallet
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mounting Side Mounting Brackets Optional Processor Intel Core I5-8265u Whiskey Lake
Operating Temperature -20 To 60 C Dimension 165*125*65mm
LAN 2 X 10/100/1000Mbps Ethernet Dual LAN I/O 1 X SATA3.0 1 X HDMI1.4 1 X DP1.2 1 X LINE OUT & MIC IN In One 4 X USB3.2 Gen1 4 X USB2.0 4 X RS232；2 X RS485
Power Supply Support DC 12V /19V MTBF 50000H
OS Support Windows 11/10 Windows 8, Windows 7, Linux Ubuntu Warranty 2 Years
High Light

Fanless mini box PC

,

I5 8265u Fanless industrial computer

,

Windows 11 Fanless industrial computer
Leave a Message
Product Description

Fanless industrial mini box PC computer Windows 11 Intel i5 8265u Whiskey Lake



Features of fanless industrial pc:



  • Embedded, Wall mounted and Desktop Installation
  • Intel Apollo Lake Celeron Processor
  • DDR3L SO-DIMM up to 8GB
  • HDMI, DP, SATA3.0, M.2
  • Intel i5-8265u Whiskey Lake 3.9GHz
  • Support Wi-Fi and 4G
  • Low power design without fan,12V/19V DC_in
  • Windows 11 Supported



Specifications of fanless box PC:



CPU


Intel Celeron 4205U

1.80 GHz


Intel Core I3-8145U

2.10 GHz


Intel Core I5-8265U

1.60 GHz


Base frequency

Burst frequency

Cache

Processor

3.90 GHz

3.90 GHz

2 MB Smart Cache


4MB Smart Cache

15W


4MB Smart Cache

15W

TDP

15W

Type


2 x DDR4 SO-DIMM 2133MHz

64GB


RAM

Graphic


Capacity

Graphics

Interface

Ethernet

Connector

M.2

Intel UHD Graphics for 8th Generation Intel Processors (based on CPU)

10/100/1000 Mbps


Ethernet

Storage


Intel Ethernet Controller I211-AT & I219-LM

2 x RJ45


1 x M.2 Key_B for 2242 SSD or NGFF 3G/4G

1 x SATA3.0

SATA3.0

HDMI

1 x HDMI1.4

DP

1 x DP1.2

Audio


1 x LINE OUT & MIC IN in one

4 x USB3.2 Gen1

Rear I/O


USB3.2 Gen1

USB2.0

4 x USB2.0

COM


4 x RS232；2 x RS485

1 x M.2 Key_E for 2230 Wi-Fi

1 x Micro SIM

M.2


Expansion

Power Input


Micro SIM

Connector

Power Type

Size (W x H x D)

Weight

DC 12V/19V Jack; DC9~36V input with Phoenix Connector optional


Single 12V/19V DC power input

165mm x 65mm x 125mm

0.8KG


Dimensions

Weight


Operating Temp

Storage Temp

Operating System

0℃~70℃

Environment

-40℃~80℃

OS

Windows 7 32/64 bit Windows 10 32/64 bit,Linux, Windows 11 for 8th Gen.


Ordering Information

Model Number

Display

COM

GPIO

DC_IN


ITD-MNPC-xxxx-8632



ITD-MNPC-xxxx-8632

ITD-MNPC-xxxx-8632

ITD-MNPC-xxxx-8632



HDMI+DP


4 RS232 & 2 RS485

4 RS232 & 2 RS485

4 RS232 & 1 RS485

4 RS232 & 1 RS485


12V/19V

16V~30V

12V/19V

HDMI+DP


8 bit GPIO

/


HDMI+DP+VGA

HDMI+DP+VGA

8 bit GPIO

16V~30V




Displays of industrial box PC:

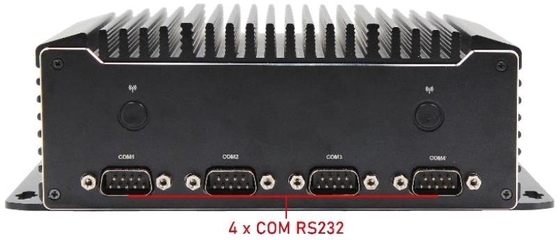

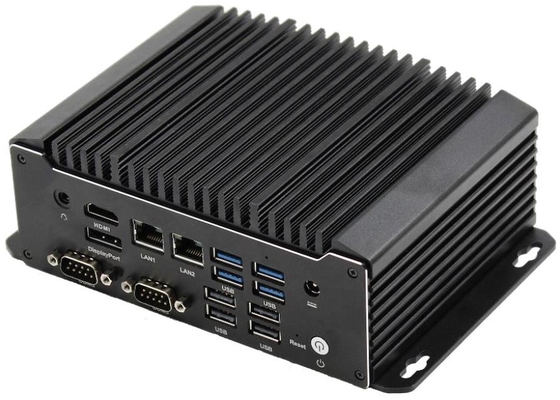

Side Mounting Mini Box PC Fanless Industrial Computer Windows 11 I5 8265u Whiskey Lake 0

Side Mounting Mini Box PC Fanless Industrial Computer Windows 11 I5 8265u Whiskey Lake 1
