Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI

  • Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI
  • Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI
  • Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI
  • Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI
Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD-MNPC-8260U-IBC8
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,wooden case,pallet
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mounting Side Mounting Brackets Optional Processor Onboard Intel® Core® I5-8260u CPU Coffee Lake
Operating Temperature -20 To 60℃ Dimension 193.9 X 127 X 57.2 Mm
LAN 2 X GbE RJ45 Realtek 8111H I/O 4 X USB3.0，4 X USB2.0 2 X DB9 COM 2 X HDMI，1 X VGA(or HDMI) 1 X Power Button DC 12-19V Input 1 X Aduio，1x Min-in 2 X Antenna Interface For WIFI/3G/4G
Power Supply DC 12V-19V MTBF 50000H
OS Support Windows 11/10 Windows 8, Windows 7, Linux Ubuntu Warranty 2 Years
Applications Automation, IoT, Warehouse&Logistics, Kiosks
High Light

Side mounting fanless Industrial PC

,

Dual HDMI fanless Industrial PC

,

8260u fanless industrial computer
Leave a Message
Product Description

Industrial PC fanless computer Intel Core 8260u Coffee Lake dual HDMI outputs



Features of Industrial PC:



  • Onboard Intel® Core® i5-8260u Coffee Lake
  • 4th: DDR3L SODIMM x1 6/7/8th: DDR4 SODIMM x1 8/10th: DDR4 SOIMM x2
  • 2x RS-232 COM
  • 2x GbE RJ45 Realtek 8111H
  • 2xHDMI outputs, Dual HDMI outputs
  • Fanless Operation
  • DC Support 12~19V



Specifications of Industrial PC:



Specifications
system
Processor Onboard Intel Celeron/Core 4th/6th/7th/8th/10th i3/i5/i7 CPU
System memory
4th: DDR3L SODIMM x1,Up to 8GB
6/7/8th: DDR4 SODIMM x1,Up to 16GB
8/10th: DDR4 SOIMM x2,Up to 32GB
Ethernet 2 x GbE RJ45 Realtek 8111H
I/O Port
4 x USB3.0,4 x USB2.0
2 x DB9 COM
1 x HDMI,1 x VGA(or HDMI)
1 x Power Button
DC 12-19V input
1 x aduio,1 x Min-in
2 x Antenna interface for WIFI/3G/4G
Storge Disk Driver
4th: 1x MSATA
6/7/8/10th: 1x M.2 2280
1x 2.5寸 HDD/SSD
Expansion Slot Mini-PCIe x1 full size/half size with SIM Card for 3G/4G or wifi/BLT
OS support Windows 7/8/10/11,WES 7/10,LINUX
Watchdog timer 255 Levels
Power
DC input 12V-19V
Mechanical
Construction Aluminum
Mounting Desktop/ wall mounted
Dimension 193.9 x 127 x 57.2 mm
Net Weight 1 Kg
Environmental
Operating TEMP -30℃ to +70℃
Storage TEMP -20℃ to +60℃
Storage Humidity 10%~90% @30℃,non-condensing









Displays of industrial PC:

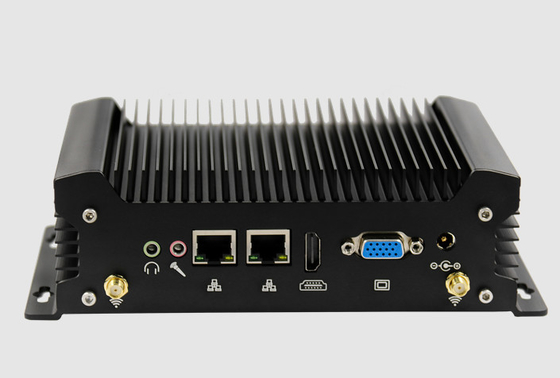

Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI 0

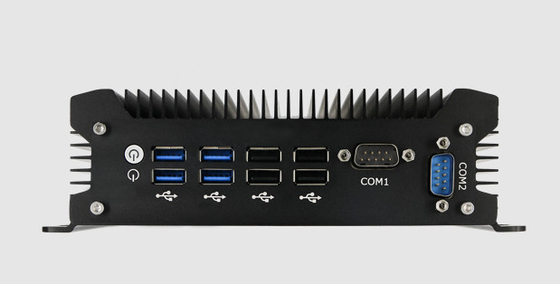

Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI 1

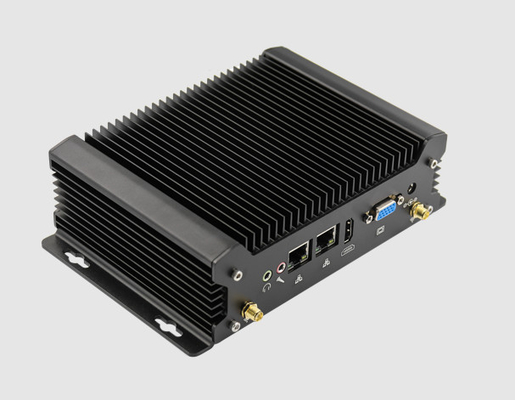

Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI 2

Side Mounting Fanless Industrial PC Computer Intel Core 8260u Coffee Lake Dual HDMI 3
