Compact Industrial Box PC Fanless Embedded Computer Windows 11 Intel J4125

  • Compact Industrial Box PC Fanless Embedded Computer Windows 11 Intel J4125
  • Compact Industrial Box PC Fanless Embedded Computer Windows 11 Intel J4125
  • Compact Industrial Box PC Fanless Embedded Computer Windows 11 Intel J4125
  • Compact Industrial Box PC Fanless Embedded Computer Windows 11 Intel J4125
Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD-MNPC-J4125-2L2C
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,wooden case,pallet
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mounting VESA Optional Processor Onboard Intel® Celeron® J4125 Quad Core
Operating Temperature -20 To 70℃ Dimension 135 X 127x38.7 Mm
LAN 2 X GbE RJ45 Realtek 8111H I/O 3 X USB2.0, 1 X USB3.0 2 X DB-9 COM1&COM2, RS-232 1 X Audio Line-out, 1 X Audio Mic-in 1 X Power Button 1 X Power LED 1 X HDD LED 1 X Power Input 1 X Antenna Interface For WIFI
Power Supply DC 12V MTBF 50000H
OS Support Windows 11 Warranty 2 Years
Applications Automation, IoT, Warehouse&Logistics, Kiosks
High Light

Compact fanless Embedded computer

,

Intel J4125 Industrial Box PC

,

Windows 11 fanless Embedded computer
Leave a Message
Product Description

Compact industrial box PC fanless computer Windows 11 Intel J4125



Features of Industrial box PC:



  • Onboard Intel Celeron J1900/J1800/J4105/J4125 CPU
  • DDR3/DDR4 SODIMM×1 ,Up to 8GB Memory DDR3/4 SODIMM×1,Up to 8GB Memory
  • VGA+HDMI
  • 1 x SATA ( 2.5”HDD ) ,1 x mSATA
  • Windows 11 Supported
  • Fanless
  • Operation Temperature: -20℃~70℃ O



Specifications of Industrial box PC:



System ITD-MNPC-Jxxxx-2L2C
Model
Processor Onboard Intel Celeron J1 900/J1800/J4105/J4125 CPU
System Memory DDR3/4 SODIMM×1,Up to 8GB Memory
Display HDMI, VGA
Ethernet 2 x GbE RJ45 Realtek 8111H
I/O Port

3 x USB2.0, 1 x USB3.0

2 x DB-9 COM1&COM2, RS-232

1 x Audio Line-out, 1 x Audio Mic-in

1 x Power Button 1 x Power LED

1 x HDD LED

1 x Power input

1 x Antenna interface for WIFI
Storage Disk Driver

1x MSATA

1x HDD/SSD M.2(only J4125)
Expansion Slot Mini-PCIe x1 half size for WIFI/BLT
Watchdog timer 1~255 Levels
Mechanical
Construction Aluminum
Mounting VESA/Panel Mounting
Dimension 135 x 127x38.7 mm
Net Weight TBA
Environmental
Operating Temperature -20°C ~ 70°C
Storage Temperature -30°C ~ 70°C
Storage Humidity 95% @40°C, non-condensing
Adapter
DC input DC 12V
OS Support Windows® 7 /8/10, WES 7,LINUX





Ordering Information

ITD-MNPC-J1900-2L2C: BOX PC | J1900 CPU | DDR3L SO-DIMM | 1xUSB3.0,3x USB2.0 | 2x LAN | 2 x COM | VGA+HDMI | Line out,
Mic-in | 1xPower Adapter
ITD-MNPC-J1800-2L2C: BOX PC | J1800 CPU | DDR3L SO-DIMM | 1xUSB3.0,3x USB2.0 | 2x LAN | 2 x COM | VGA+HDMI | Line out
Mic-in | 1xPower Adapter
ITD-MNPC-J4105-2L2C: BOX PC | J4105 CPU | DDR4 SO-DIMM | 1xUSB3.0,3x USB2.0 | 2x LAN | 2 x COM | VGA+HDMI | Line out
Mic-in | 1xPower Adapter
ITD-MNPC-J4125-2L2: BOX PC | J4125 CPU | DDR4 SO-DIMM | 3xUSB3.0,1x USB2.0 | 2x LAN | 2 x COM | VGA+HDMI | Line out
Mic-in | 1xPower Adapter


Packing list
2.5”HDD brackets
Power Adapter



Optional Accessories

WIFI module

SSD

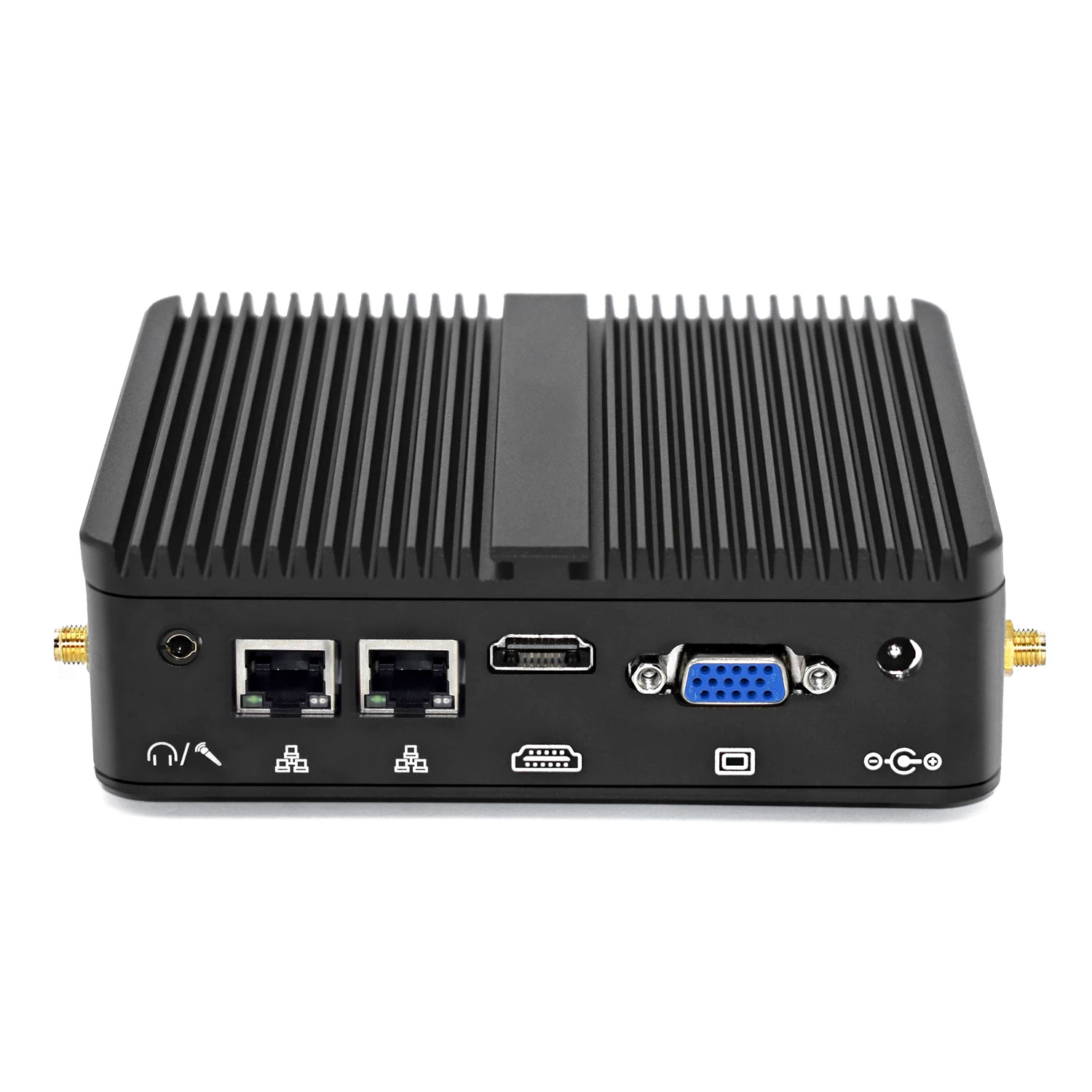

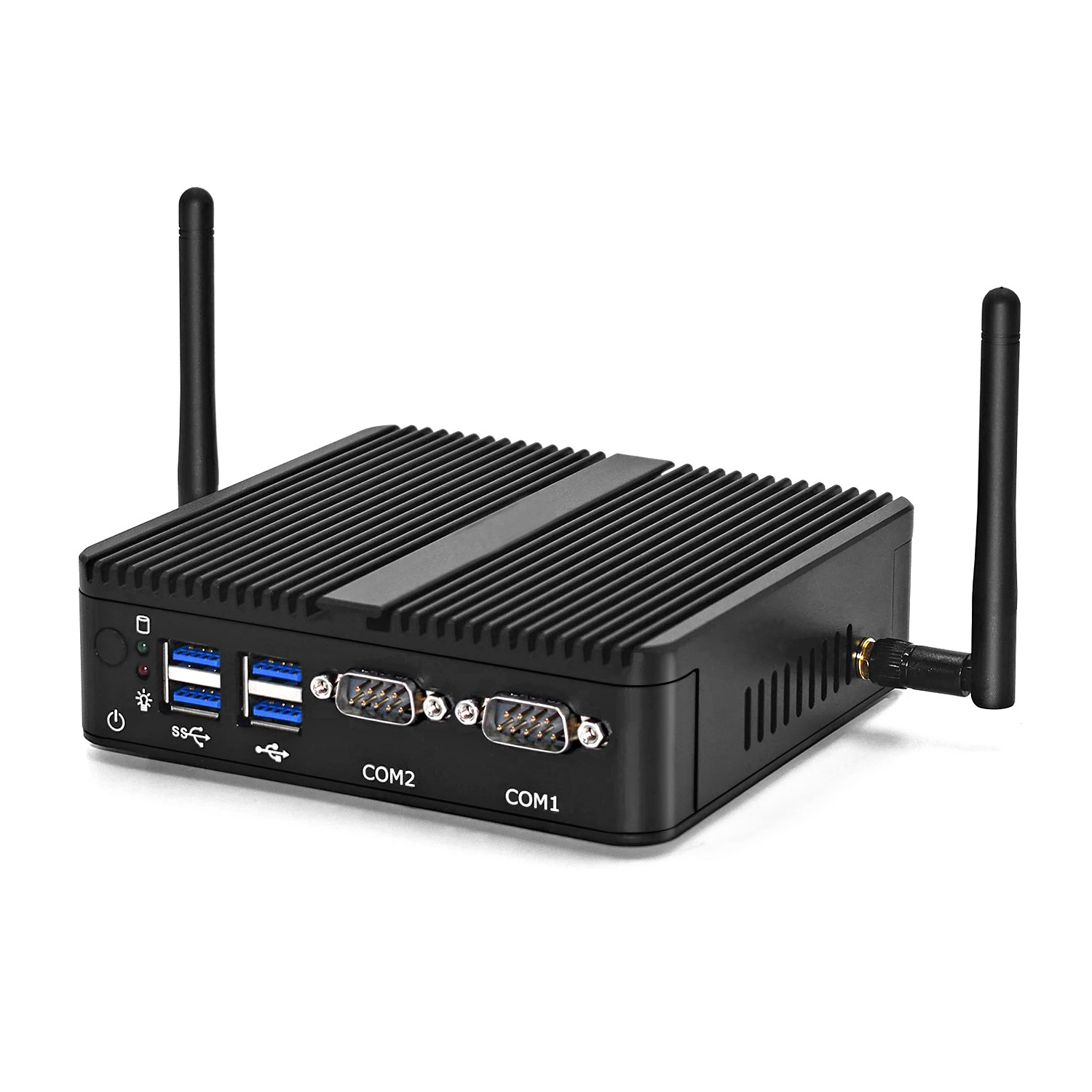

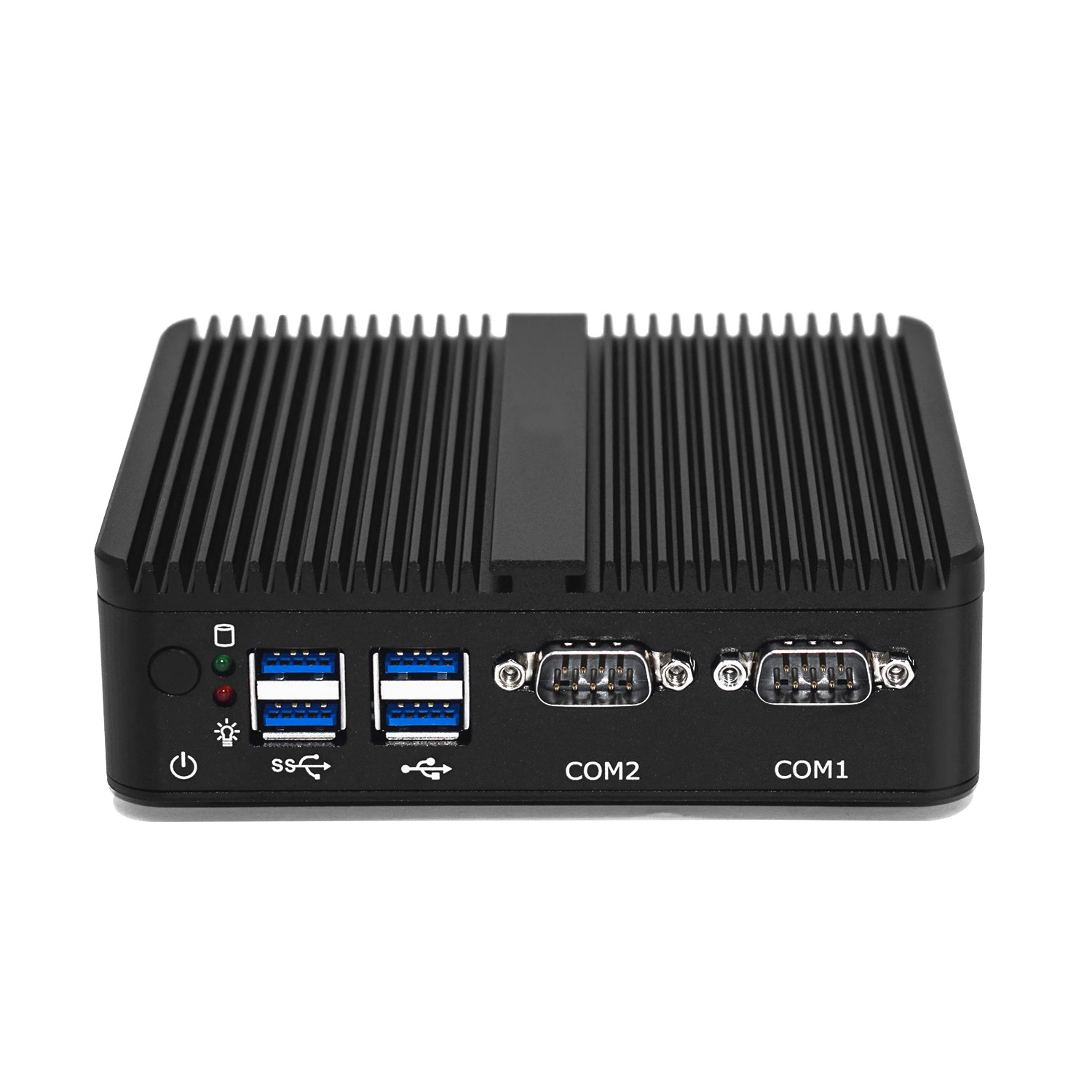

Displays of industrial box PC:





Compact Industrial Box PC Fanless Embedded Computer Windows 11 Intel J4125 0Compact Industrial Box PC Fanless Embedded Computer Windows 11 Intel J4125 1Compact Industrial Box PC Fanless Embedded Computer Windows 11 Intel J4125 2

Compact Industrial Box PC Fanless Embedded Computer Windows 11 Intel J4125 3
