Windows 11 Fanless Industrial Computer Intel Elkhart Lake J6412 J6413

  • Windows 11 Fanless Industrial Computer Intel Elkhart Lake J6412 J6413
  • Windows 11 Fanless Industrial Computer Intel Elkhart Lake J6412 J6413
  • Windows 11 Fanless Industrial Computer Intel Elkhart Lake J6412 J6413
  • Windows 11 Fanless Industrial Computer Intel Elkhart Lake J6412 J6413
Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number ITD-MNPC-J6412-GEHL1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,wooden case,pallet
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mounting VESA Optional Processor Onboard Intel® Celeron® J6412/J6413 Quad Core
Operating Temperature -20 To 70℃ Dimension 135 X 127x38.7 Mm
LAN 2 X GbE RJ45 Realtek 8111H I/O 2 X USB3.0 + 2 X USB2.0 2 X DB9 COM 2 X HDMI + 1 X DP 1 X Power LED 1 X Power Button 1 X Power Input 2 X Antenna Interface For WIFI
Power Supply DC 12V MTBF 50000H
OS Support Windows 11, Windows® 10，WES 10，LINUX Warranty 2 Years
Video Outputs 2 X HDMI + 1 X DP
High Light

Windows 11 Fanless industrial computer

,

VESA Mounting Fanless industrial computer

,

J6413 fanless embedded computers
Leave a Message
Product Description

Fanless industrial computer Windows 11 Intel Elkhart Lake J6412 J6413



Features of Fanless industrial computer:



  • Intel Elkhart Lake J6412/J6413
  • 2 x RS-232COM
  • 2x Realtek 8111H LAN
  • DDR4 SODIMM x1,up to 8GB
  • Fanless Operation
  • Windows 11 supported



Specifications of Fanless industrial computer:



Specifications
system
Processor: Intel Elkhart Lake J6412/J6413
System memory DDR4 SODIMM x1,up to 8GB
Ethernet 2 x GbE RJ45 Realtek 8111H
I/O Port:
2 x USB3.0 + 2 x USB2.0
2 x DB9 COM
2 x HDMI + 1 x DP
1 x Power LED
1 x Power Button
1 x Power input
2 x Antenna interface for WIFI
Storge Disk Driver
1 x M.2 2280 NVME
1 x 2.5 inch HDD/SSD
1 x MSATA
Expansion Slot : 1 x M.2 2230 Wifi
OS Support: Windows11/10,WES 10,LINUX
Watchdog timer: 1~255 Levels
Power
DC input : 12V
Mechanical
Construction : Aluminum
Mounting: Desktop/ wall mounted
Dimension : 135 x 127 x 38.7 mm
Net Weight: 1 Kg
Environmental
Operating : TEMP -30℃ to +70℃
Storage: TEMP -20℃ to +60℃
Storage: Humidity 10%~90% @30℃,non-condensing



Displays of Fanless industrial computer:

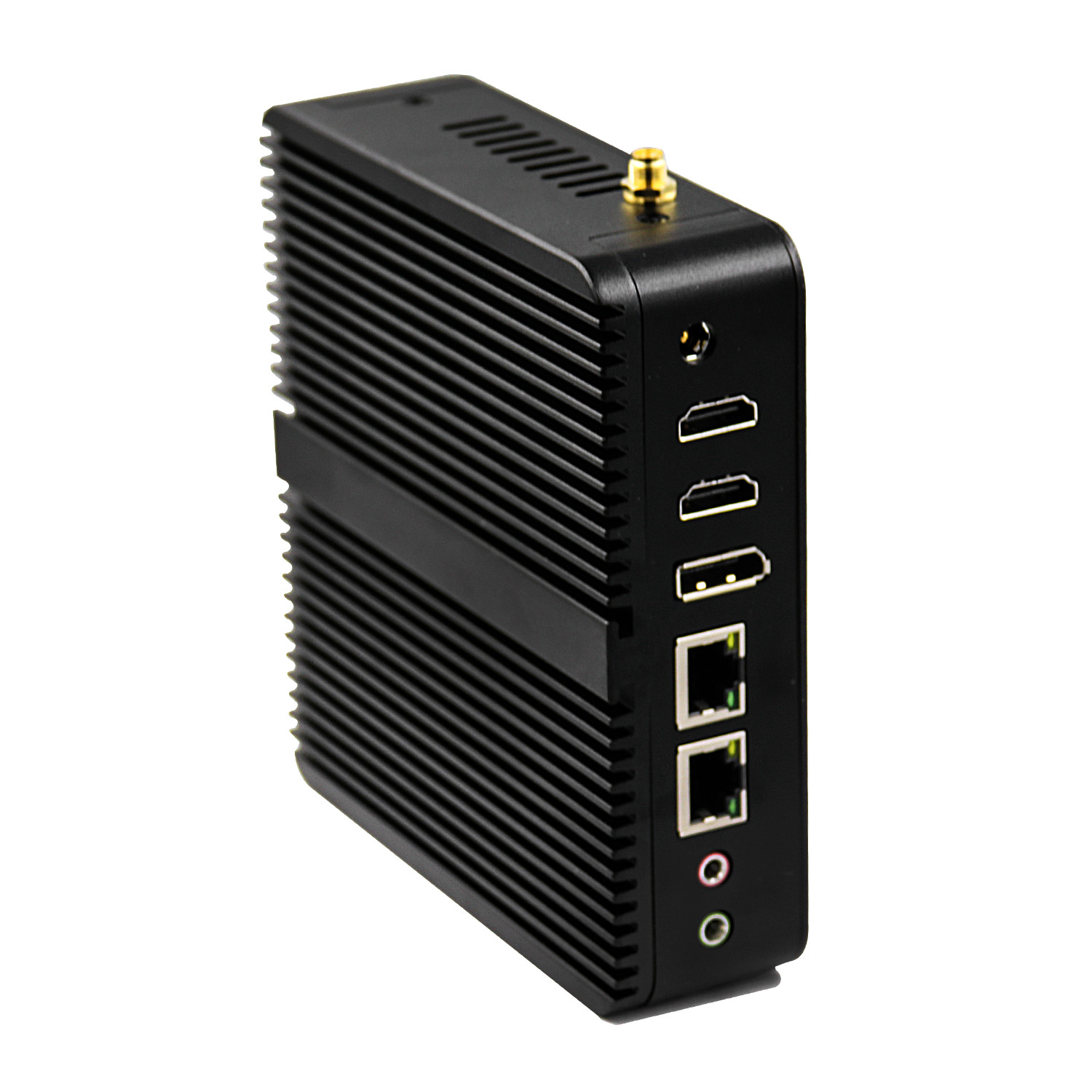

Windows 11 Fanless Industrial Computer Intel Elkhart Lake J6412 J6413 0

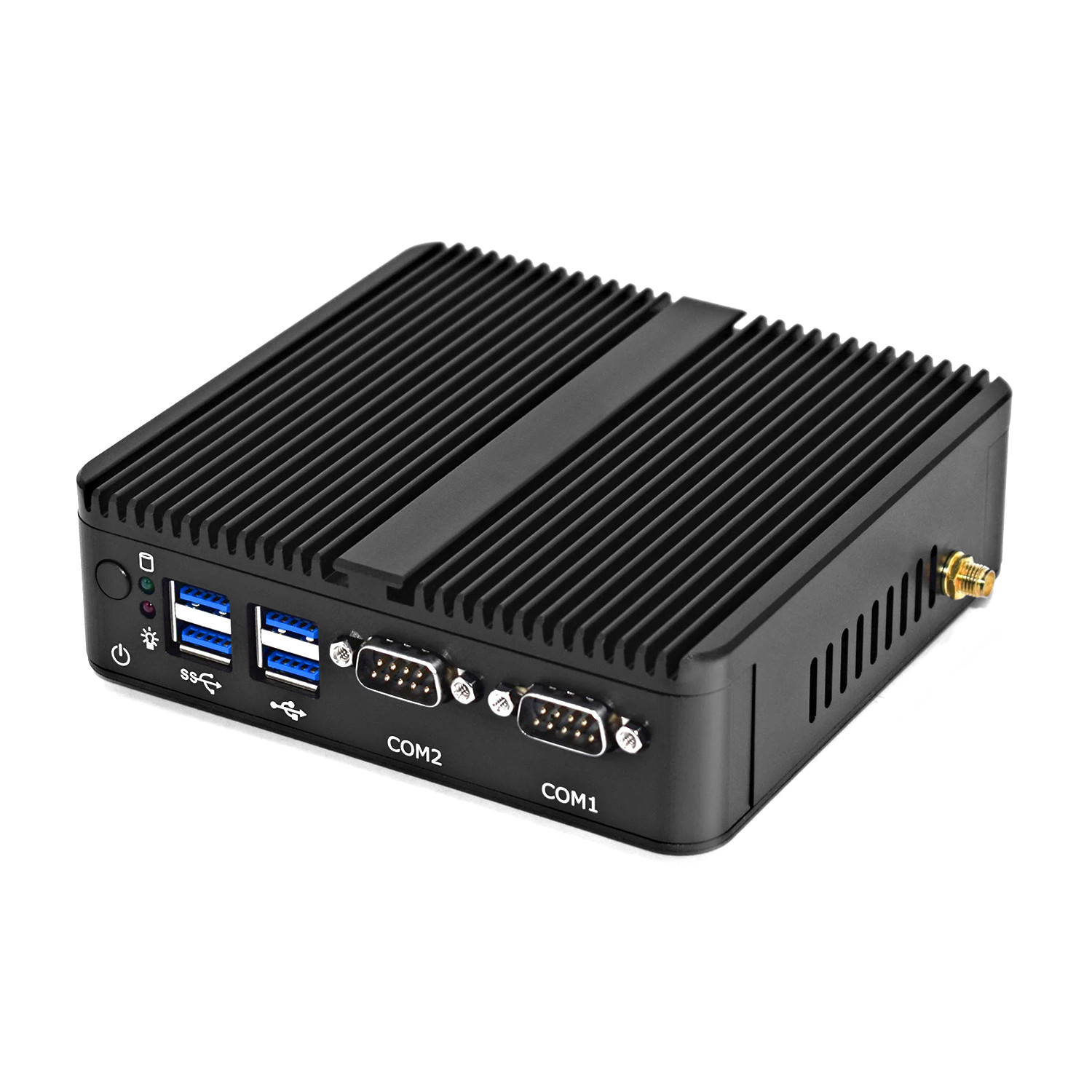

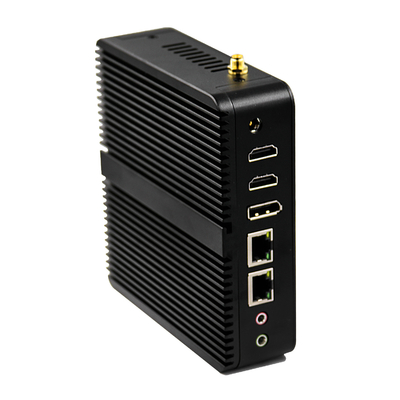

Windows 11 Fanless Industrial Computer Intel Elkhart Lake J6412 J6413 1Windows 11 Fanless Industrial Computer Intel Elkhart Lake J6412 J6413 2

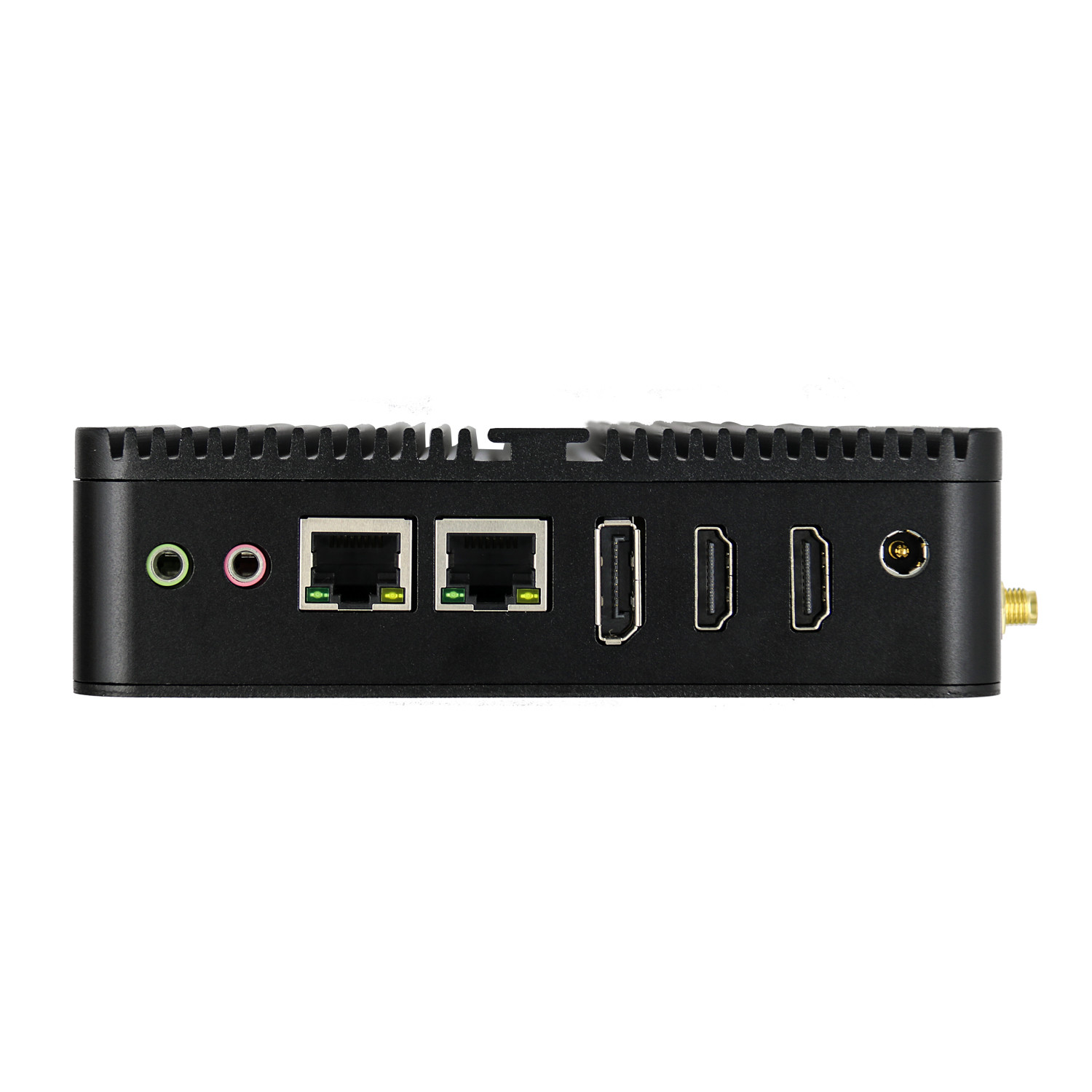

Windows 11 Fanless Industrial Computer Intel Elkhart Lake J6412 J6413 3
