DC12V Embedded Industrial PC Industrial Waterproof Mini PC Box
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Box Structure | Aluminum Alloy | CPU | Intel J1900//J4125/J6412/i3,i5,i7/Android |
|---|---|---|---|
| Default Waterproof I/O | 2×USB, 1×RJ45, 1×DC12V, 1×COM More USB/COM Ports, HDMI Output, Audio, Etc. Optional | LAN | 1 × 10/100/1000Mbps Ethernet |
| OS | Windows 7/10/11, Linux,Android | Input Voltage | DC12V |
| Operating Temperature | -10~60℃ | ||
| High Light | DC12V Embedded Industrial PC,100Mbps Embedded Industrial PC,1000Mbps Mini PC Box |
||
Product Description
DC12V Embedded Industrial PC Industrial Waterproof Mini PC Box
embedded box PC industrial waterproof mini PC box
FEATURES of embedded box PC
• Robust aluminum alloy enclosure, sealed I/O from particles, water, and corrosive agents
• Full IP65/66/67 and sealed with anti-corrosive rubber to providing 360 degree protection
• Rugged aluminum alloy enclosure with high EMC and IP65/IP66/67 NEMA4/4X protection
• High performance computing capabilities with low power consumption
• Flexible, reliable, and ruggedized for open platform HMI/SCADA
• CE, FCC, RoHS Compliance
Specifications:
| Item | X86 Solution 1 | X86 Solution 2 |
| CPU | Intel® Celeron J1900/J4125/J6412 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | J1900: Dual Channel, DDR3 1333/1600MHz Memory,Max.8GB | 4th/5th----------DDR3L SODIMM×1, Up to 8GB 6th/7th/8th/10th----DDR4 SODIMM×2, Up to 32GB |
| J4125/J6412: DDR4 SODIMM×1, Max. 8GB | ||
| Storage | J1900: 1×SATA, 1×mSATA, Default to 64GB SSD | 1 × mSATA, |
| J4125/J6412: 1×M.2 2280 NVME, 1×2.5” HDD/SSD, 1×mSATA | 1 × M.2 2280 NVME | |
| 1 × HDD/SSD | ||
| Graphics | Intel HD Graphics (By CPU) | 4th~7th Gen.: Intel HD Graphics (By CPU) |
| 8th and above.: Intel UHD Graphics (By CPU) | ||
| Default Waterproof I/O | 2×USB, 1×RJ45, 1×DC12V, 1×COM | 2×USB, 1×RJ45, 1×DC12V ,1×COM |
| More USB/COM ports, HDMI Output, Audio, etc. optional | More USB/COM ports, HDMI Output, Audio, etc. optional | |
| LAN | 1 × 10/100/1000Mbps Ethernet | 1 × 10/100/1000Mbps Ethernet |
| OS | Windows 7/10, Linux, Windows 11 for J4125/J6412 | Windows 7/10/11, Linux |
| Box Structure and Surface | Aluminum Alloy, Full CNC Treated, Anodizing and Anti-scratch Treatment |
| Color | Black or Silver |
| Mounting Method | Desktop, wall mount |
| Cooling System | Passive cooling system |
| Indicator & Button | Power switch, Power LED, HDD LED |
| Dimension | 222×200×54mm |
| Net Weight | 1.8kg |
| Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 10~30W |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Humidity | 10 ~ 95% @ 10C (No condensation) |

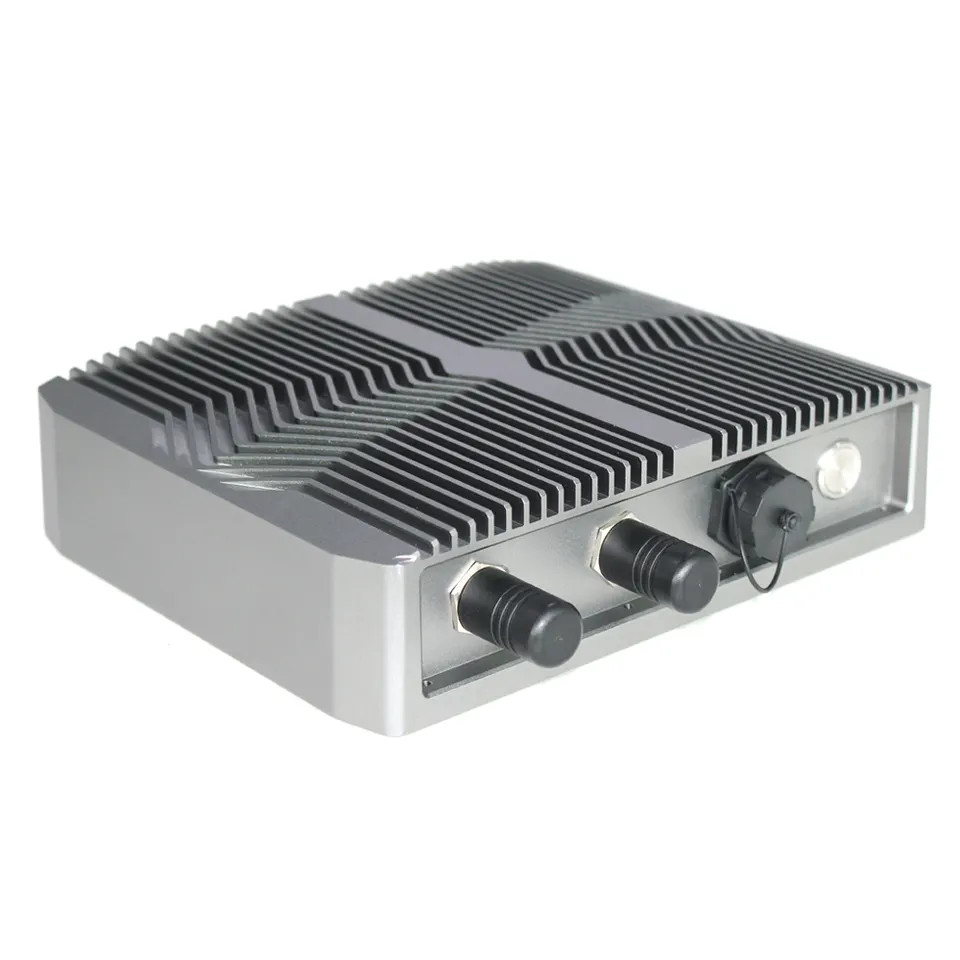

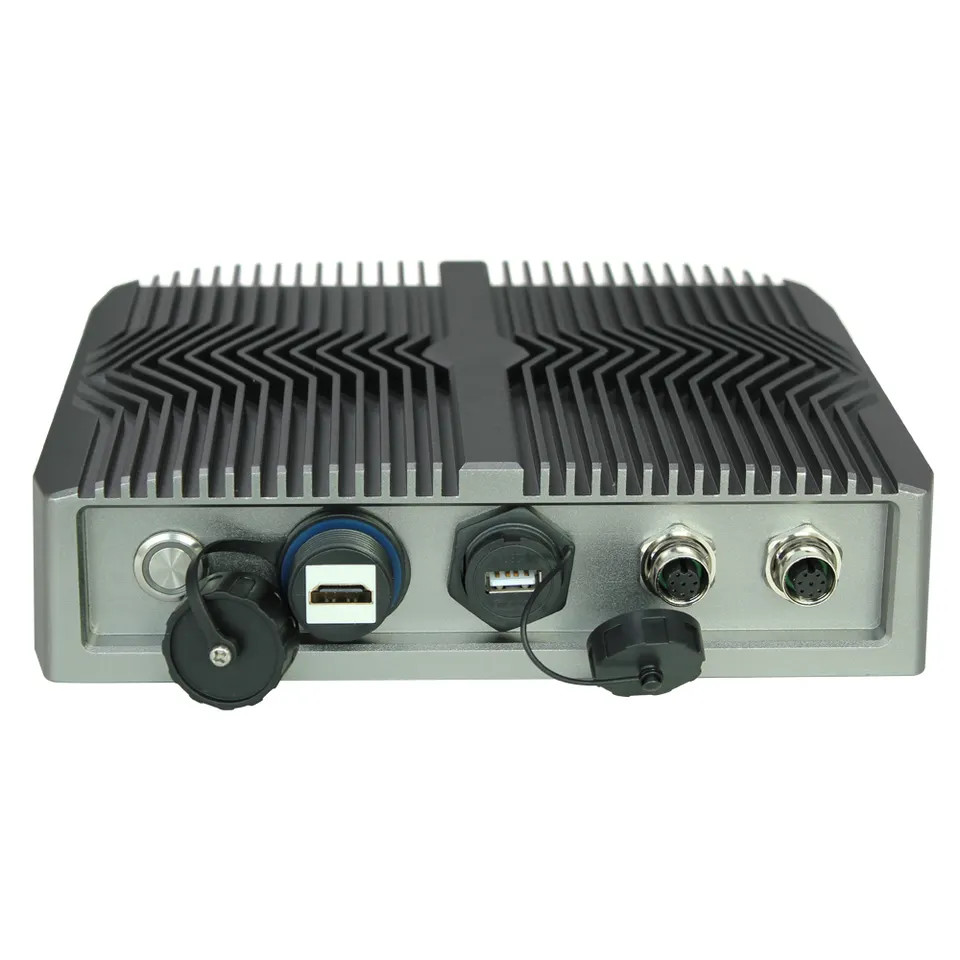

Product image:
