OEM ODM High Brightness Sunlight Readable LCD Monitor Flat Bezel Panel

Place of Origin China
Brand Name ITD/OEM
Model Number ITD19PMT5HBHX32
Minimum Order Quantity 1PCS
Price TBA
Delivery Time 15 working days
Payment Terms T/T
Supply Ability 10000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 1820 X 1024 Screen Size 15",17",19",15.6"
Brightness 1000nits,1500nits Response Time 5ms
Products Status Stock Pixel Pitch 0.294×0.294
Panel Type TFT-LCD Panel Warranty 1 Year For TFT Panels; 2 Years For Others.
Viewing Angle 85/85/80/80
High Light

OEM ODM Sunlight Readable LCD Monitor

,

1500nits Sunlight Readable LCD Monitor

,

OEM ODM High Brightness LCD Monitor

Leave a Message
Product Description

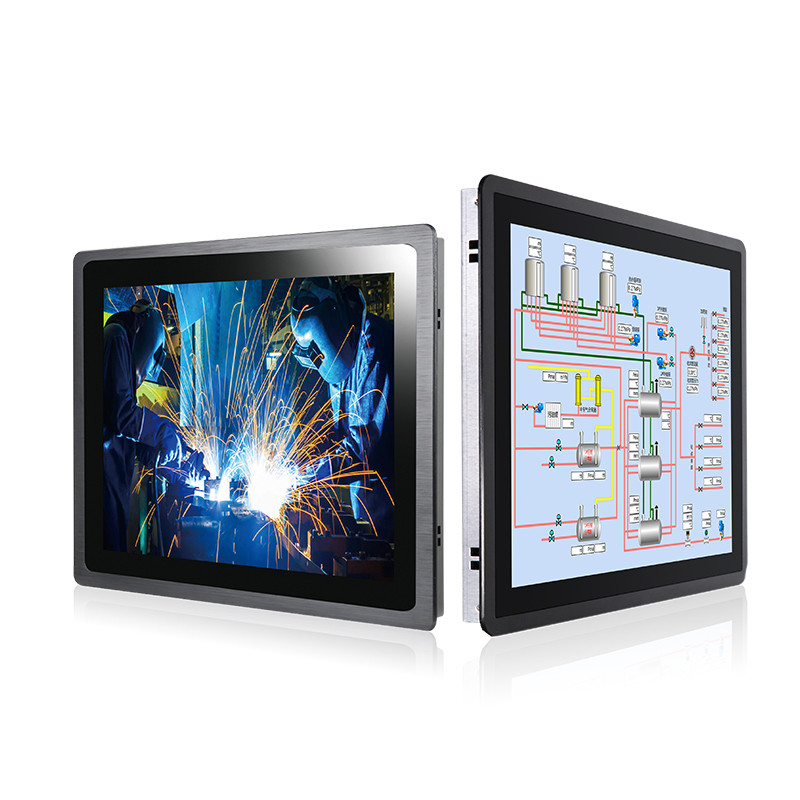

OEM ODM High Brightness Sunlight Readable LCD Monitor Flat Bezel Panel



The ITD 19 inch high brightness Flat bezel panel mount LCD High-performance touch screen display industrial monitor



GENERAL

Article 19” High Bright Flat Bezel Panel Mount LCD Monitor
IP IP65(for front panel only)
Cut-Out Dimensions 434.5×383.5mm
Aluminum Front Bezel Thickness 3mm (6mm, 10mm optional)
Weight(N.W/G.W) 6.6Kg / 7.8Kg (Approx.)
LCD Type 19"Active matrix TFT-LCD
Video Input VGA and DVI-I, HDMI, Audio
Recommend Resolution 1280×1024@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Input DC 12V Power Plug; DC 9-36V input optional
Power Consumption 33W
Mount Interface 1)VESA 75×75/100×100mm 2)Panel Mounting via Clamps
Regular Warranty 1 Year for TFT panels; 2 Years for others.
Agency Approval FCC, CE, RoHS Certified



LCD Specification

Active Area(mm) 376.32(H) x301.06(V)
Resolution 1280×1024
Pixel Pitch(mm) 0.294×0.294
Nominal Input Voltage VDD +5V(Typ)
Viewing angle (L/R/T/B) 85°/85°/80°/80°
Contrast 1000:1
Luminance(cd/m2) 1000 (1500 optional)
Response Time(Rising/Falling) 3.6s/1.4s
Support Color 16.7M





External AC Power Adapter



Output 12V DC/4A
Input 150-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C
