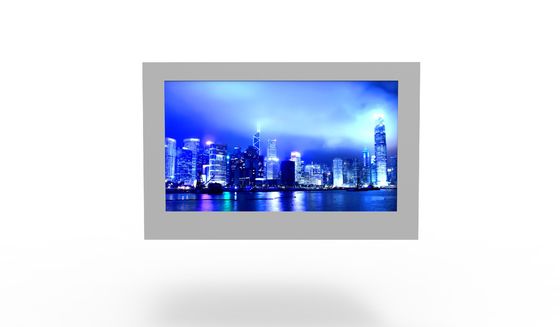

Industrial Grade Outdoor LCD Touchscreen Monitor 86”Wall mounted Display High Brightness With Optical Bonding

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLCD Panel | 86'' LCD Panel | Power Connector | AC 100-240V, 50-60 Hz |
---|
INTRODUCTION:
ITD outdoor all weatherproof wall-mounted digital signage display boasts a range of unique features perfect for outdoor digital signage with high brightness, protective glass, IP65 verified, tamperproof, commercial grade, temperature control and choice of media players including single SD card and USB port plug and play media player, ARM based player and x86 based player integrated. The ITD outdoor digital signage displays are fitted with commercial grade panels providing them with a wide viewing angle, improved color, contrast and brightness as well as the ability to be used 24 hours a day. With an eco-friendly power timer you can be assured of their green credentials and low operating costs. The ITD outdoor display also has an ambient light sensor that will automatically alter the screens brightness based on the displays surrounding light levels leaving the screen with the best clarity whilst also conserving energy. Anti-reflective/ anti-glare tempered glass also comes as standard. ITD outdoor digital signage can display message in heat, cold, rain, snow and dust empowering to always present a dynamic and vibrant message.
KEY FEATURES:
CPU: Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Chipset: Intel Bay trail SOC
Graphic Card: Intel HD4000
Memory: 2GB RAM, 120G SSD
Audio: Realtek ALC662
Ethernet LAN: 1*RTL8111E LAN
APPLICATIONS:
•Security Transportation
•Atm
•Automation
•Medical Equipment
•Gaming Machine
•Networking Pos
•General Application
Specification
Technical Specification | |
Display | |
Model | 86inch TFT LCD |
Screen Size | 86'' |
Aspect Ratio | 16:9 |
Resolution | 3840x2160 |
Luminance | 4000cd/m² |
Viewing Angle(H×V) | 89/89/89/89 |
Orientation | Landscape or portrait |
Response Time | 8ms |
Connectivity | |
Input | HDMI INx1, VGA×1, RJ45×1, USB2.0×2, USB 3.0×2, Audio I/O ports (Mic and Line-out ) |
Wi-Fi | Built-in WiFi 802.11B/G/N |
Speaker | Optional |
LAN | RJ45 Port, 10/100M Ethernet |
4G (Optional) | LTE |
Power & Environmental Conditions | |
Power Supply | AC 100-240V, 50-60 Hz |
Consumption(max) | 1100W |
Protection Level | IP65 |
Mechanical Specification | ||
Dimensions(WxHxD) | 2215X250X1386mm | |
Package(LxHxD) | 2500x380x1580mm(1PCS) | |
Net Weight | ||
Gross Weight |
Internal Player(option) | |
Processor | Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) |
RAM | 2GB RAM |
Storage1 | 20G SSD |
Operating System | Windows |
Accessories | |
Remote controller | Yes |
User manual | Yes |
