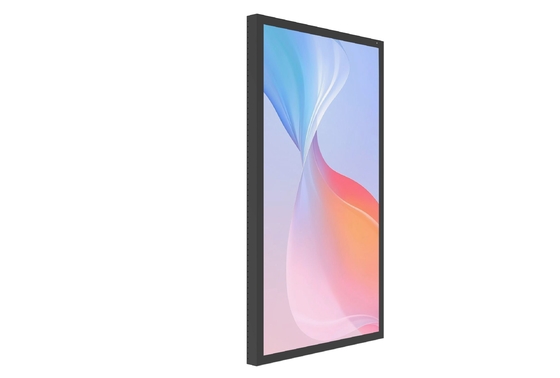

Industrial Grade Outdoor LCD Touchscreen Monitor 27/32/43/49/55/65/75/86 inches Display High Brightness With Optical Bonding
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Port | HDMI×1, USB×2, RJ45×1, WIFI×1; Other I/O Optional. | LCD Panel | 32'' LCD Panel |
|---|---|---|---|
| Power Connector | 180-264V, 50/60Hz |
Product Description
· INTRODUCTION:
32'' High Brightness Outdoor LCD Display
BENEFITS:
· High Brightness LCD Screen with Optical Bonding
LCD backlight brightness 2000-5000nits. Meets the best viewing requirements under direct sunlight. Optical bonding improves display readability, durability, and touch accuracy by eliminating the air gap between the screen layers.
· Intelligent Brightness Control
Automatically adjust the LCD screen brightness according to the ambient light brightness to save energy to the maximum extent.
· Industrial Grade Panel
The LCD panel uses wide temperature LCD. It does not blacken under direct sunlight.
· Polarized Sunglasses Visible
LCD panel uses QWP technology to improve visibility. Wearing polarized sunglasses does not affect vision.
· IP65 Waterproof Fan
Full lamination process is used on the front of the screen. Integrated backlight behind the screen Protection grade IP65
· Industrial Design Ultra-Thin Body
Narrow border ultra-thin design supports horizontal and vertical screens.Fully sealed design supports various interface expansions. The surface meets outdoor protection requirements.
Specification
| Model | ITD32CMODIPWxx | ITD43CMODIPWxx | ITD49CMODIPWxx | ITD55CMODIPW | ITD65CMODIPW | |
| Panel | Size | 32" | 43" | 49" | 55" | 65" |
| Panel Technology | IPS | IPS | IPS | IPS | IPS | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 3840×2160 | |
| Brightness | 2000~3000nits | 2000~4000nits | 2000~5000nits | 2000~5000nits | 2000~4000nits | |
| Contrast Ratio | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 | |
| Viewing Angle | 178/178 | 178/178 | 178/178 | 178/178 | 178/178 | |
| Surface Treatment | Haze 3% | Haze 3% | Haze 3% | Haze 3% | Haze 3% | |
| Lifetime | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs | 50000Hrs | |
| Display Mode | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | |
| Physical Appearance | Color | Black | Black | Black | Black | Black |
| Material | Aluminum,Galvanized Steel Sheet | |||||
| Surface Treatment | Outdoor Powder Spraying | |||||
| Outline Dimension | 763×457×95.5mm | 1014×602× 95.5mm | 1147×677× 95.5mm | 1282×753× 95.5mm | 1500×875× 95.5mm | |
| N.W. | 19kg | 28kg | 36kg | 38kg | 65kg | |
| Package Dimension | 860×560×220mm | 1120×700× 220mm | 1250×800× 220mm | 1400×870× 220mm | 1600×980× 220mm | |
| G.W. | 26kg | 36kg | 44kg | 48kg | 75kg | |
| Mounting Hole | VESA670×300mm | VESA900×400mm | VESA1075× 400mm | VESA1200× 400mm | VESA1400× 400mm | |
| Operation Environment | Operating Temperature | -20--50℃ | -20--50℃ | -20--50℃ | -20--50℃ | -20--50℃ |
| Operating Humidity | 10%--85% | 10%--85% | 10%--85% | 10%--85% | 10%--85% | |
| IP level | IP65 | IP65 | IP65 | IP65 | IP65 | |
| Protective Glass | 5mm Ultra-Clear Glass | 5mm Ultra-Clear Glass | 5mm Ultra-Clear Glass | 5mm Ultra-Clear Glass | 5mm Ultra-Clear Glass | |
| Power | Input | 180-264V, 50/60Hz | 180-264V, 50/60Hz | 180-264V, 50/60Hz | 180-264V, 50/60Hz | 180-264V, 50/60Hz |
| Max. Power Consumption | 160W | 220W | 240W | 280W | 480W | |
| Mainboard | Processor | ARM Based RK3288/RK3568/RK3576/RK3588, x86 Based Intel Celeron J1900/J6412 or Intel Core i3/i5/i7 optional | ||||
| Interface | HDMI×1, USB×2, RJ45×1, WIFI×1; Other I/O optional. | |||||
| Optional | 75”, 86” optional(3840×2160, 2000~4000nits, 1200:1, 178/178, etc.) | |||||
