12.1" IP65 front pure flat screen VGA HDMI input panel mount wall mount pcap touch monitor industrial touch display
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Aluminum, SGCC | Outline Dimensions | 376.1 X 285.3x 43.3mm |
|---|---|---|---|
| Weight | 2.43kg | Power Input | 12V/3A |
| Brightness | 500 Cd/m2 (1000, 1500cd/m2 Optional) | Touch Panel | 5-wire Resistive, Pcap Touch |
| Operating Temperature Range | -20℃~70℃ | IP Level | Front IP65 |
Product Description

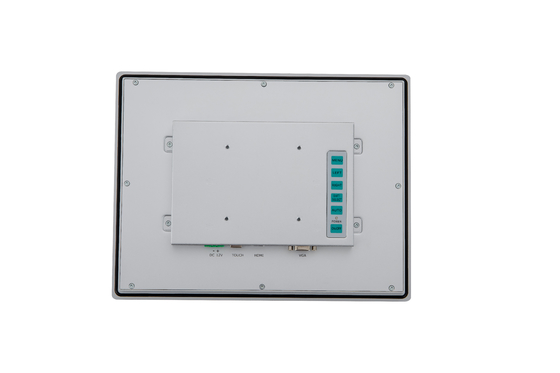

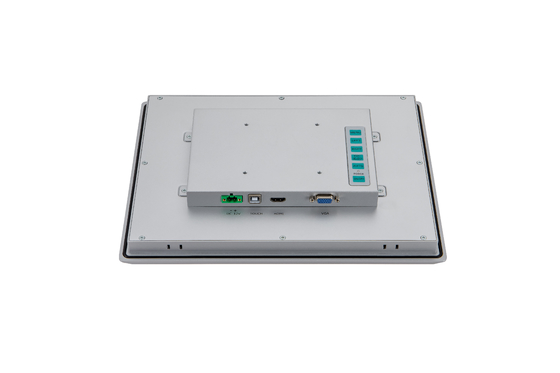

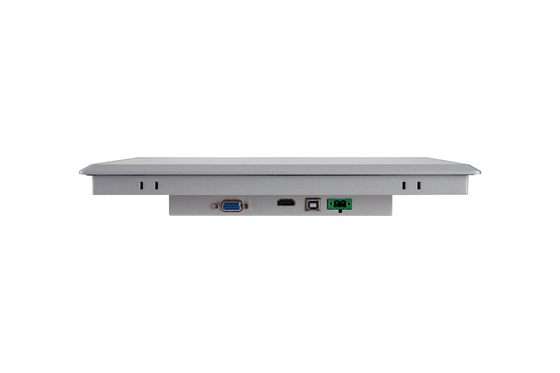

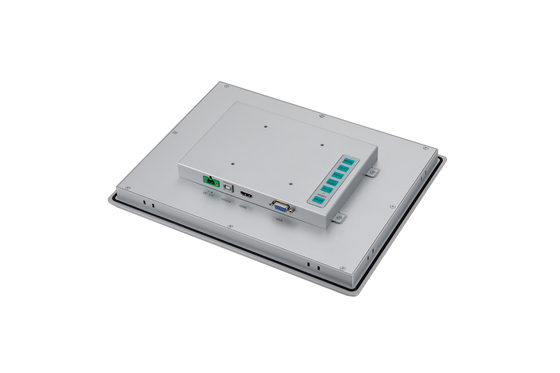

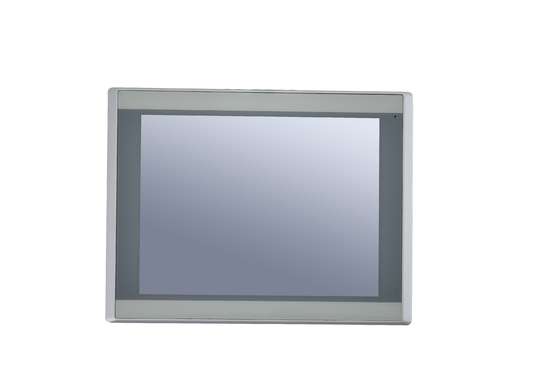

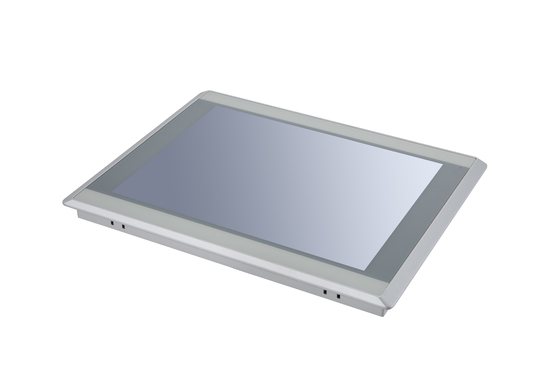

12.1" IP65 front pure flat screen VGA HDMI input panel mount wall mount pcap touch monitor industrial touch display
Features of 12.1" touch display
n12.1" TFT LCD monitor with 1024 x 768 resolution
nFront panel compliant with IP65 protection rating, offering stability and durability
nSupports VGA and HDMI interfaces
nOptional resistive or capacitive touch screen
nOptional 12V or 9~28V power input
nSupports panel mount, wall mount, desktop mount, or VESA arm mount
Specifications of 12.1" panel mount monitor
|
Inputs |
VGA,HDMI |
|
|
Housing Material |
Aluminum, SGCC |
|
|
Outline Dimensions |
376.1 x 285.3x 43.3mm |
|
|
Weight |
TBD |
|
|
Power Input |
12V/3A |
|
|
OS Supported |
Windows®7/8/10/11,WES 7,Linux |
|
|
OSD Menu |
Brightness and contrast adjustable; supports one-touch auto adjustment for optimal display. |
|
|
Mounting Method |
Panel mount, wall mount, desktop mount, or VESA arm mount |
|
|
LCD Panel |
||
|
LCD Type |
TFT-LCD |
|
|
Resolution |
1024 x 768 |
|
|
Colors |
16.7M |
|
|
Brightness |
500 cd/m2 (1000, 1500cd/m2 optional) |
|
|
Viewing Angles(CR>=10) |
-89°～89°(H),-89°~89° (V) |
|
|
Backlight |
LED 30,000h |
|
|
Contrast Ratio |
1000:1 |
|
|
Touch Panel |
||
|
Type |
5-wire Resistive |
Projected Capacitive Touch |
|
Interface |
USB2.0 |
USB2.0 |
|
Transparency |
85% |
﹥85% |
|
Lifecycle |
10 million touches at 250g activation force |
≥50 millions per click |
|
Environmental Condition |
||
|
Operating Temperature Range |
-20℃~70℃ |
|
|
Storage Temperature Range |
-20℃～70℃ |
|
|
Storage Humidity |
10~90%@30℃,Non-condensing |
|
|
IP Level |
Front IP65 |
|
|
Vibration resistance |
5~500 Hz,1Grms (operating, random) |
|
