19" embedded mounting VGA HDMI industrial touchscreen high brightness panel mount monitor for kiosk HMI machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Aluminum, SGCC | Outline Dimensions | 440.0 X 364.0 X 45.0 Mm |
|---|---|---|---|
| Power Input | 12V/3A | Brightness | 250 Cd/m2 (350~1500cd/m2 Optional) |
| Touch Panel | 5-wire Resistive, Pcap Touch | Operating Temperature Range | -20℃~70℃ |
| IP Level | Front IP65 | Resolution | 1280*1024 |
Product Description

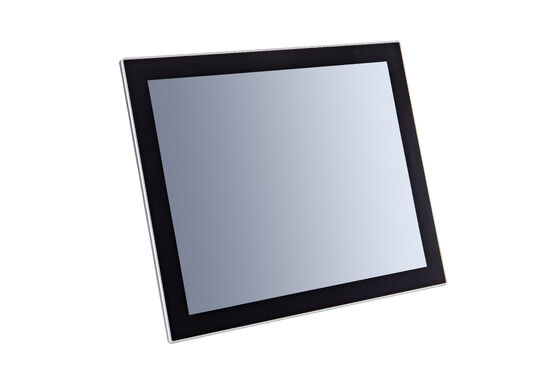

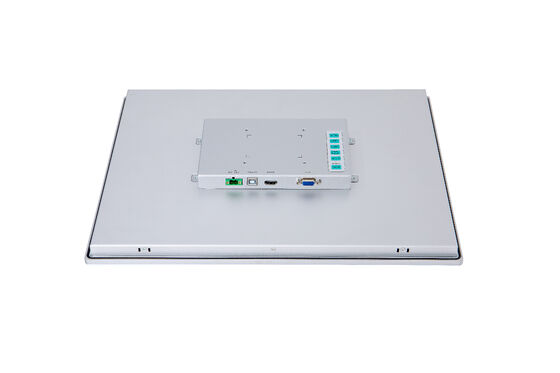

19" embedded mounting VGA HDMI industrial touchscreen high brightness panel mount monitor for kiosk HMI machine
Features of 19" embedded mounting
◼Front panel compliant with IP65 protection rating, offering stability and durability
◼ Supports VGA and HDMI interfaces
◼ Optional resistive or capacitive touch screen
◼ Optional 12V or 9~28V power input
◼ Supports panel mount, wall mount, desktop mount, or VESA arm mount
Specifications of 19" embedding mounting monitor
|
Inputs |
VGA,HDMI |
|
|
Housing Material |
Aluminum, SGCC |
|
|
Outline Dimensions |
440.0 x 364.0 x 45.0mmmm |
|
|
Weight |
TBD |
|
|
Power Input |
12V/3A |
|
|
OS Supported |
Windows®7/8/10/11,WES 7,Linux |
|
|
OSD Menu |
Brightness and contrast adjustable; supports one-touch auto adjustment for optimal display. |
|
|
Mounting Method |
Panel mount, wall mount, desktop mount, or VESA arm mount |
|
|
LCD Panel |
||
|
LCD Type |
TFT-LCD |
|
|
Resolution |
1280 x 1024 |
|
|
Colors |
16.2M |
|
|
Brightness |
250 cd/m2 (350~1500cd/m2 optional) |
|
|
Viewing Angles(CR>=10) |
-89°～89°(H),-89°~89° (V) |
|
|
Backlight |
LED 30,000h |
|
|
Contrast Ratio |
1000:1 |
|
|
Touch Panel |
||
|
Type |
5-wire Resistive |
Projected Capacitive Touch |
|
Interface |
USB2.0 |
USB2.0 |
|
Transparency |
85% |
﹥85% |
|
Lifecycle |
10 million touches at 250g activation force |
≥50 millions per click |
|
Environmental Condition |
||
|
Operating Temperature Range |
-20℃~70℃ |
|
|
Storage Temperature Range |
-20℃～70℃ |
|
|
Storage Humidity |
10~90%@30℃,Non-condensing |
|
|
IP Level |
Front IP65 |
|
|
Vibration resistance |
5~500 Hz,1Grms (operating, random) |
|
