All-Aluminum Fanless Box PC LED Touch Monitor Industrial Box PC Embedded Box Computers

  • All-Aluminum Fanless Box PC LED Touch Monitor Industrial Box PC Embedded Box Computers
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS Compliance
Model Number IBC7-CFL-8400H
Minimum Order Quantity 1PCS
Price TBA
Payment Terms T/T, PayPal(173515844@qq.com)

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Processor Intel Core I5/i7 8/9/10th Ger H Series CPU System Memory DDR4 SODIMM X2, Up To 32GB
Storage Temperature -30℃ To +70℃ Operating Temperature -20℃ To +60℃
Power Supply 9-36V
Leave a Message
Product Description

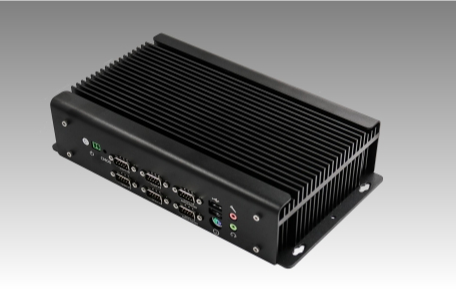

All-Aluminum Fanless Box PC LED Touch Monitor Industrial Box PC Embedded Box Computers 0

INTRODUCTION:



All-Aluminum Industrial Fanless Box PC, Supporting Soldered Onboard Intel i5/i78/9/10th Ger H Series CPU



FEATURES

■ Intel Core i5/i7 8/9/10th Ger H Series CPU

■ DDR4 SODIMM x2,Up to 32GB

■ 6 x RS-232 COM(2 x RS485/RS442)

■ 2 x Intel i225V LAN

■ Watchdog, one-key restore, diskless startup Fanless Operation



Specification

system
Processor Intel Core i5/i7 8/9/10th Ger H Series CPU
System memory DDR4 SODIMM x2, Up to 32GB
Ethernet 2 x 2.5GbE RJ45 Intel i225V
I/O Port

4 x USB3.0,

2 x USB2.0 6 x DB9 COM(2 x RS485/RS422)

3 x HDMI

1 x PS2(Keyboard & Mouse two in one)

14 x GPIO(7x input, 7x output)

1 x Power Button, 1 x Reset Button,1 x Clear CMOS Button

1 x 3pin wire, DC 9-36V input

1 x audio,1 x Min-in

1 x AT/ATX 2 x Antenna interface for WIFI/3G/4G
Storge Disk Driver

1x MSATA

1x M.2 NVME 2280

1x HDD/SSD
Expansion Slot

Mini-PCIe x 1 half size for WIFI

Mini-PCIe x 1 full size with SIM Card for 3G/4G, WIFI, Bluetooth
OS support Windows® 10,WES 10,LINUX
Others ▪Watchdog, one-key restore, diskless startup
Power
DC input DC input
Mechanical
Construction Aluminum
Mounting Desktop/ wall mounted
Dimension 240 x 150 x 65 mm
Net Weight 2 Kg
