19" Industrial Embedded Touch Display PCAP 10-Point Touch | VESA/Panel Mount | IP65 front Built for Harsh Industrial Environments
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD17PMT5HBX31 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 5-7 Business Days |
| Payment Terms | T/T,PayPal(173515844@qq.com) |
| Supply Ability | 10000PCS/Month |
Product Details
| Inch | 19 | Resolution | 1280*1024 |
|---|---|---|---|
| Backlight | LED | Operating Temperature | -10~60℃ |
| Mount Interface | VESA 75×75/100×100mm/Panel Mounting Via Clamps | Input Signal Connectors | VGA, HDMI |
| Power Input | External Power Supply With Universal/Auto-Sensing | Brightness | 250nits, (1000~1500 Nits Optional) |
| Highlight | 19 inch industrial touch display PCAP,IP65 front industrial panel monitor,VESA mount industrial touch screen |
||
Product Description
19" Industrial Embedded Touch Display PCAP 10-Point Touch | VESA/Panel Mount | IP65 front Built for Harsh Industrial Environments
ITD industrial panel mount LCD monitors are purpose-built for continuous, dependable performance in harsh industrial environments where reliability is critical. Featuring a heavy-duty steel enclosure paired with a precision-machined aluminum front bezel, these monitors deliver exceptional resistance to shock, vibration, and mechanical stress commonly found in factories, production lines, and processing plants. The front-facing IP65 / NEMA 4 protection, reinforced by high-durability tempered glass, effectively shields the display from dust, moisture, splashes, and industrial pollutants, helping ensure stable operation even in challenging conditions. The flat, flush-front mechanical design supports both resistive and projected capacitive (PCAP) touch options, making the surface easy to clean and well suited for applications requiring frequent interaction or compliance with hygiene standards. With their rugged construction, flexible configuration, and industrial-grade reliability, these monitors are ideal for industrial automation, HMI terminals, machine control systems, self-service kiosks, food and beverage processing equipment, transportation and vehicle-mounted systems, as well as marine and offshore applications—delivering consistent performance where downtime is not an option.
Specifications:
| Panel Mount Touch Screen Monitor |
|
| Model Name | ITD19PMT5X1_V2 |
| IP Rating | IP65 Front Panel |
LCD Panel |
|
| Screen Diagonal (Inch) | 19” |
| Display Active Screen Size (mm) | 374.784(W)×299.827(H) |
| Aspect Ratio | 5:4 |
| Physical Resolution | 1280×1024 |
| Pixel Pitch(mm) | 0.2928×0.2928 |
| Colors | 16.7M |
| Response Time | 8/8ms |
| Brightness (cd/m2) | 250 (450~1500 optional) |
| Contrast Ratio | 1000:1 |
| View Angels | 89/89/89/89 |
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'Lifetime |
Touch Panel |
|
| Touch Options | PCAP, Resistive |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
Input / Output |
|
| Video Input | 1 × VGA |
| 1 × DVI-I, 1 × Display Port(optional) | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × Phoenix Connector |
Operation |
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
Power |
|
| Power Indicator | Green LED |
| Power Input | DC9~28V input |
| Power Consumption | 18W |
Order Information |
|
| 19”Panel Mount LCD Monitor with Resistive Touch | ITD19PMT1X1_V2 |
| 19”Panel Mount LCD Monitor with PCAP Touch | ITD19PMT5X1_V2 |
| 19”Panel Mount LCD Monitor with Tempered Glass | ITD19PMG1X1_V2 |
| 19”1000nits Panel Mount LCD Monitor with Resistive Touch | ITD19PMT1HBX2_V2 |
| 19”1000nits Panel Mount LCD Monitor with PCAP Touch | ITD19PMT5HBX2_V2 |
| 19”1000nits Panel Mount LCD Monitor with Tempered Glass | ITD19PMG1HBX2_V2 |
| 19”1500nits Panel Mount LCD Monitor with Resistive Touch | ITD19PMT1HBX1_V2 |
| 19”1500nits Panel Mount LCD Monitor with PCAP Touch | ITD19PMT5HBX1_V2 |
| 19”1500nits Panel Mount LCD Monitor with Tempered Glass | ITD19PMG1HBX1_V2 |

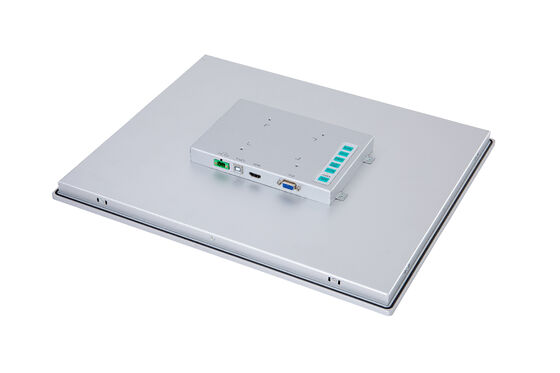

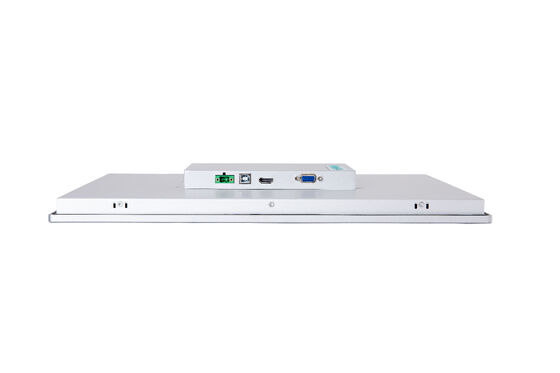

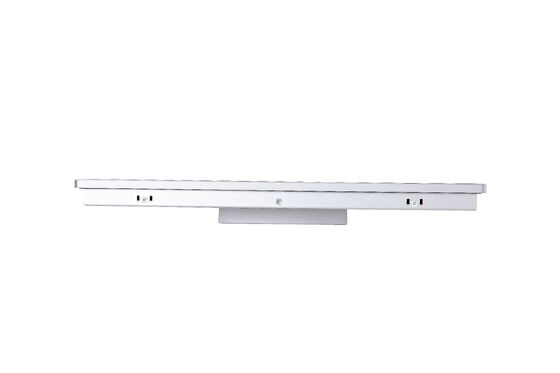

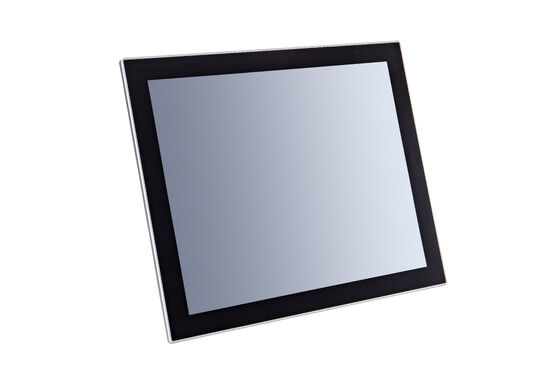

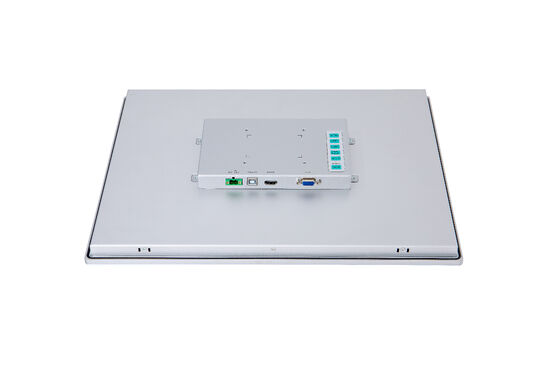

Product Image
