Rugged Waterproof Box Computer IP67 industrial Android mini box PC

  • Rugged Waterproof Box Computer IP67 industrial Android mini box PC
  • Rugged Waterproof Box Computer IP67 industrial Android mini box PC
  • Rugged Waterproof Box Computer IP67 industrial Android mini box PC
  • Rugged Waterproof Box Computer IP67 industrial Android mini box PC
  • Rugged Waterproof Box Computer IP67 industrial Android mini box PC
  • Rugged Waterproof Box Computer IP67 industrial Android mini box PC
Place of Origin China
Brand Name ITD/OEM
Certification CE/ROHS/FCC
Model Number TD-MNPC-IPAN-3568
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,wooden case,pallet
Payment Terms T/T,PayPal(173515844@qq.com)
Supply Ability 10000 units per month
Product Details
Box Structure Aluminum Alloy CPU Intel J1900//J4125/J6412/i3,i5,i7/Android
Default Waterproof I/O 2×USB, 1×RJ45, 1×DC12V, 1×COM More USB/COM Ports, HDMI Output, Audio, Etc. Optional LAN 1 × 10/100/1000Mbps Ethernet
OS Win 7/10/11, Linux,Android Input Voltage DC12V
Operating Temperature -10~60℃
Leave a Message
Product Description

Rugged Waterproof Box Computer IP67 industrial mini box PC


The ITD rugged waterproof box computer is designed to withstand harsh environmental conditions such as exposure to water, dust, and extreme temperatures. It is rugged and reliable computing solution that can be used in a wide range of applications, including industrial automation, outdoor surveillance, and marine environments. IP65/IP66/IP67 rating indicates that the box computer is completely protected against dust and can withstand immersion in water up to a certain depth for a specified amount of time. Rugged IP65/IP66/IP67 waterproof box computer is a robust and durable computing solution that is designed to withstand harsh environments and extreme conditions. It is often used in industrial, and outdoor applications where reliability and durability are crucial.


Specifications:


Rugged Full IP67 ARM Based Box Computer
Model Name ITD-MNPC-IPAN-3568
IP Rating N/A

PC Systems
CPU ARM Quad Core RK3568, Cortex-A55
GPU Mali-G52-2EE High Performance
RAM DDR3 2GB, max. 4GB
ROM 8GB max. 32GB
Decoding Resolution Support 1080P/H.265(4K2K)
OS Support Android 11/Linux

Default Waterproof M12 I/O
Serial Ports 1 × COM
USB Ports 2 × USB 2.0
LAN 1 × RJ45
Video Output 1 × HDMI Output
Power 1 × DC9~36V input

Network
Bluetooth Bluetooth 4.1
LAN 1 × RJ45 (10M/100M Ethernet)
WiFi 2.4GHz, 802.11b/g/n/AC, Dual Band optional
4G/5G Optional

File Support
Video H.264, MKV, WMV9, MPEG 1/2/4, HD Divx, Xvid, RM/RMVB;
Image BMP/PNG/GIF/JPEG
Audio MP3,WMA,WAV,EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text txt

Others
Power Switch 1 × Power Switch
Breathing Valve 1 × Breathing Valve

On-Screen Display Languages
English, French, German, Italian, Polish, Russian, Simplified Chinese, Spanish, Turkish, Arabic, Japanese, Traditional Chinese etc.

Power
Power Indicator N/A
Power Input DC 9~36V
Power Consumption 3W

Mechanical Structure
Box Material and Surface Aluminum Alloy, Full CNC Treated, Anodizing and Anti-scratch Treatment
Color Black or Silver
Mounting Method VESA Mounting 75 ×75mm
Cooling System Passive Cooling

Operation
Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 0%~95%(Non-Condensation)
Box Material and Surface Die-Casting Aluminum Chassis
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm Peak to Peak
Shock 10 G/Peak (11 ms)

Order Information
Rugged Full IP67 ARM Based Box Computer ITD-MNPC-IPAN-RK3568



Product image:

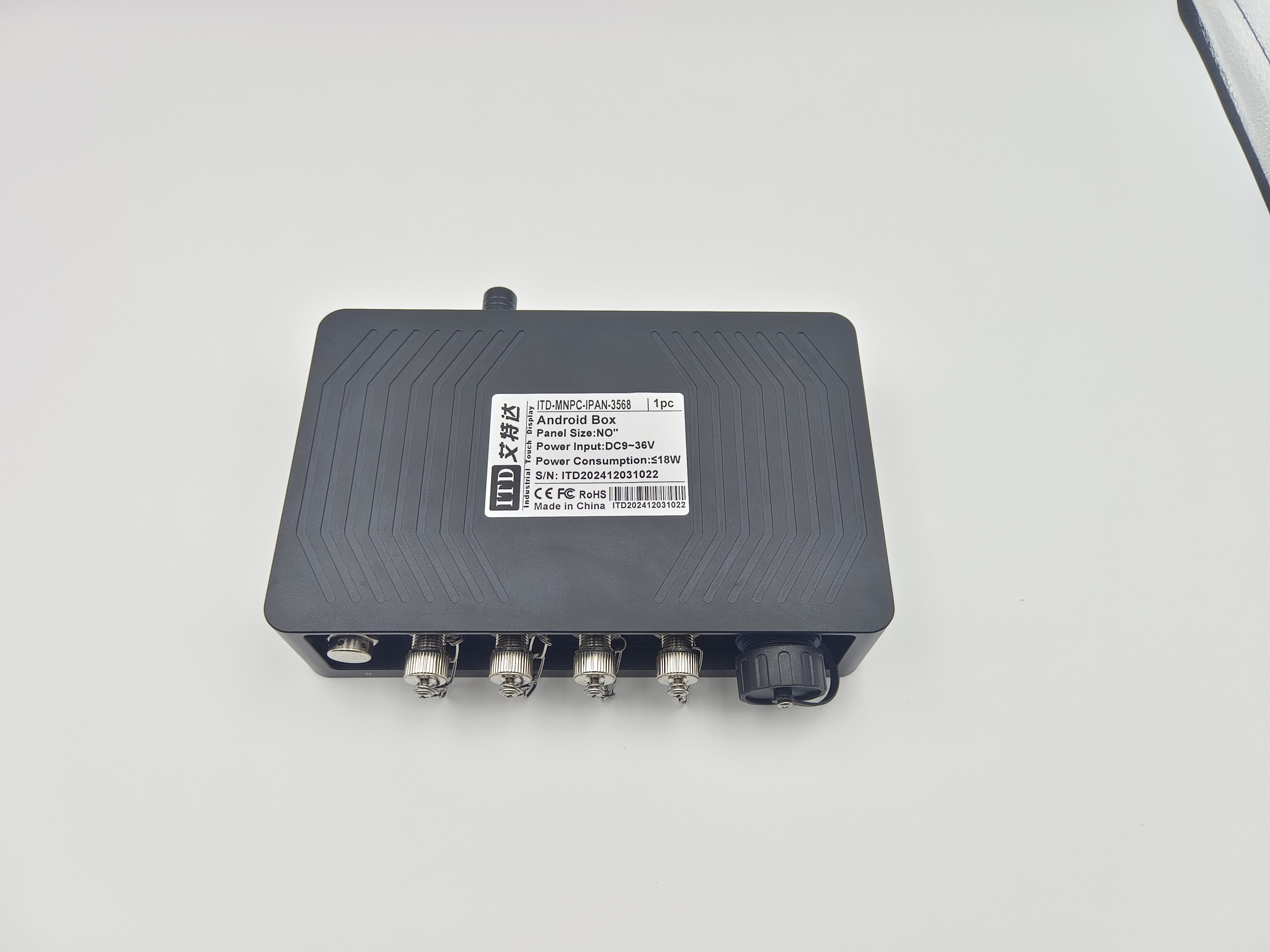

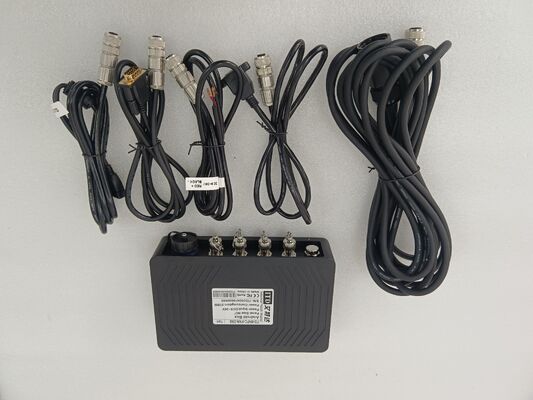

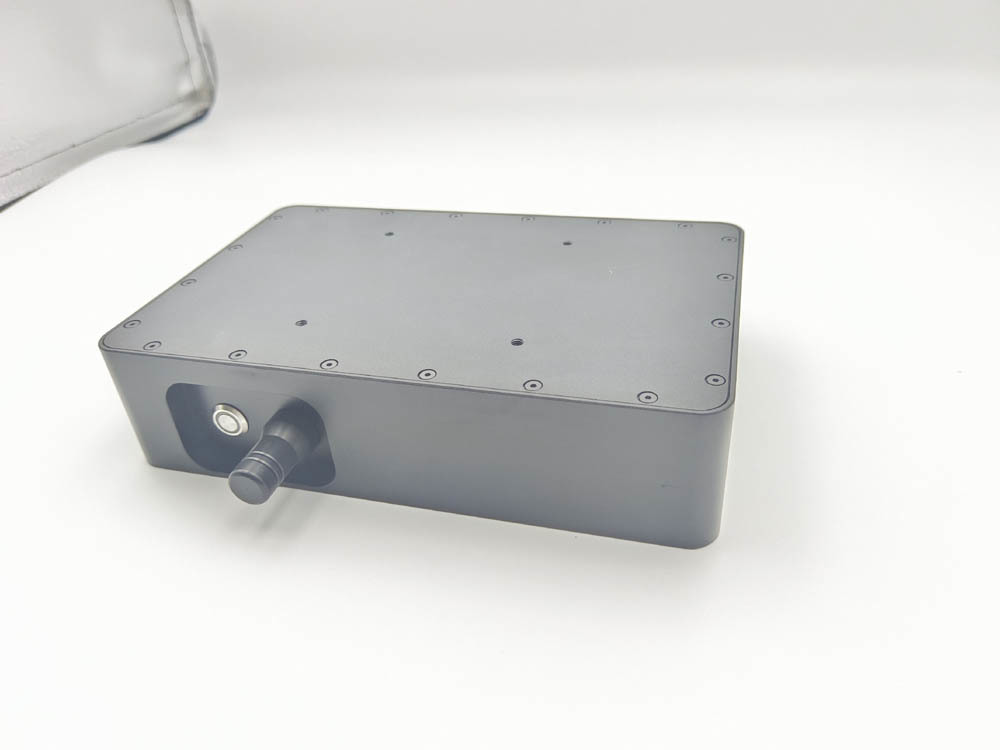

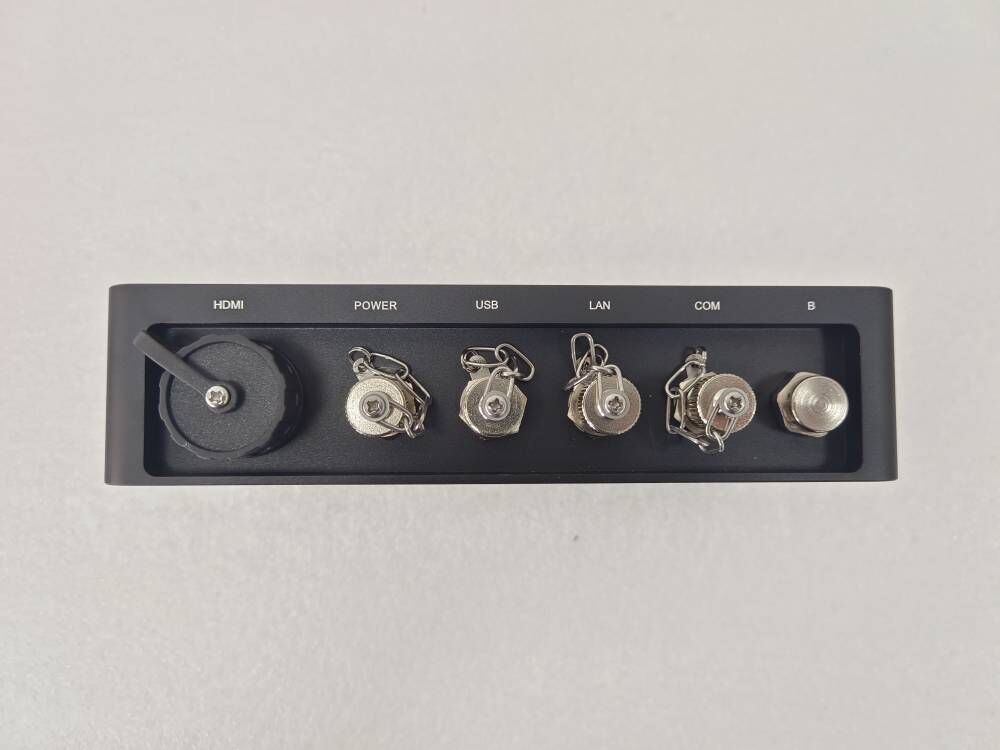

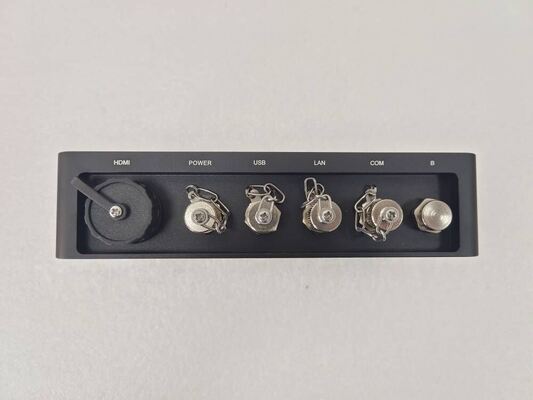

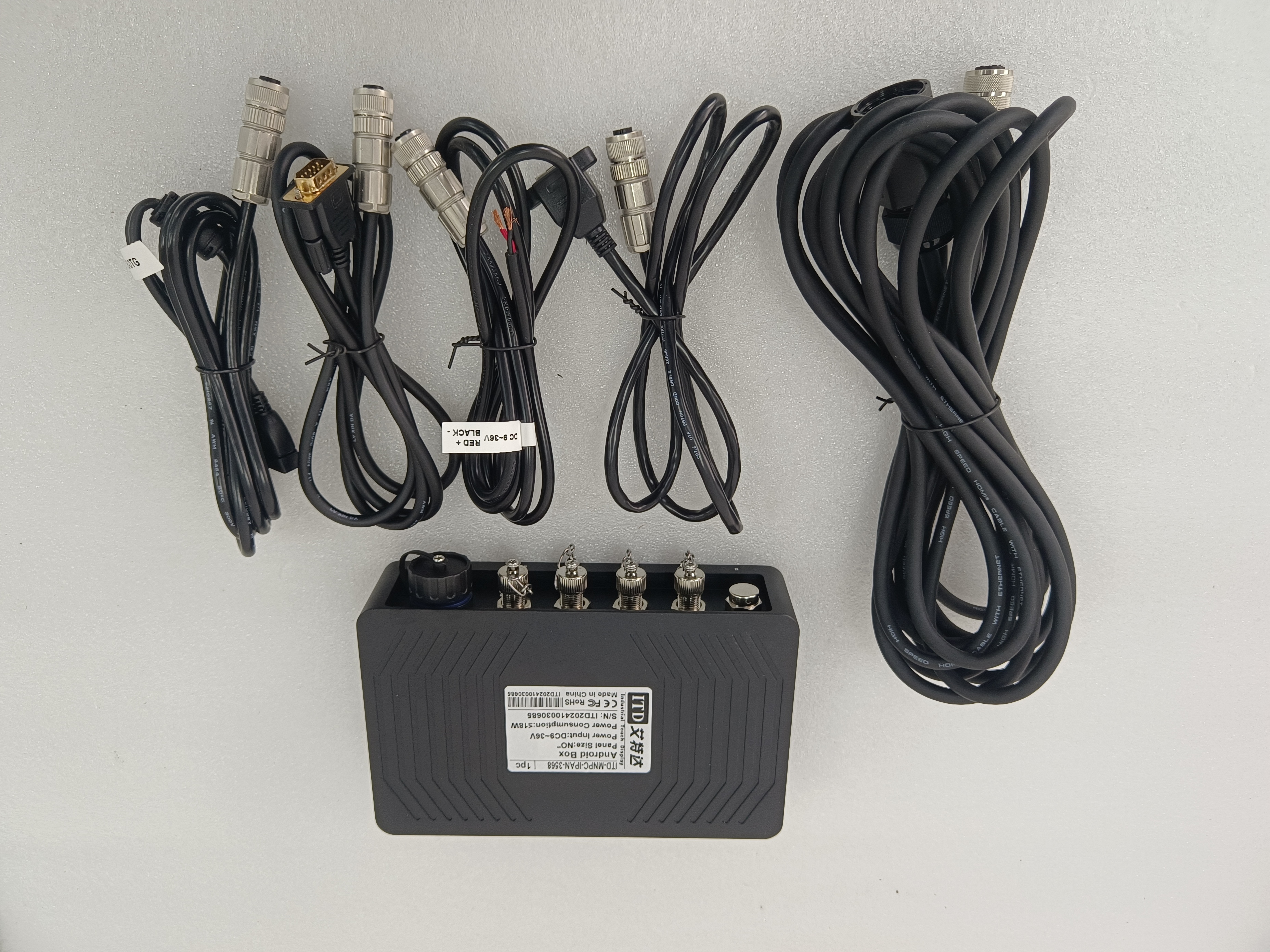

Rugged Waterproof Box Computer IP67 industrial Android mini box PC 0



Rugged Waterproof Box Computer IP67 industrial Android mini box PC 1



Rugged Waterproof Box Computer IP67 industrial Android mini box PC 2

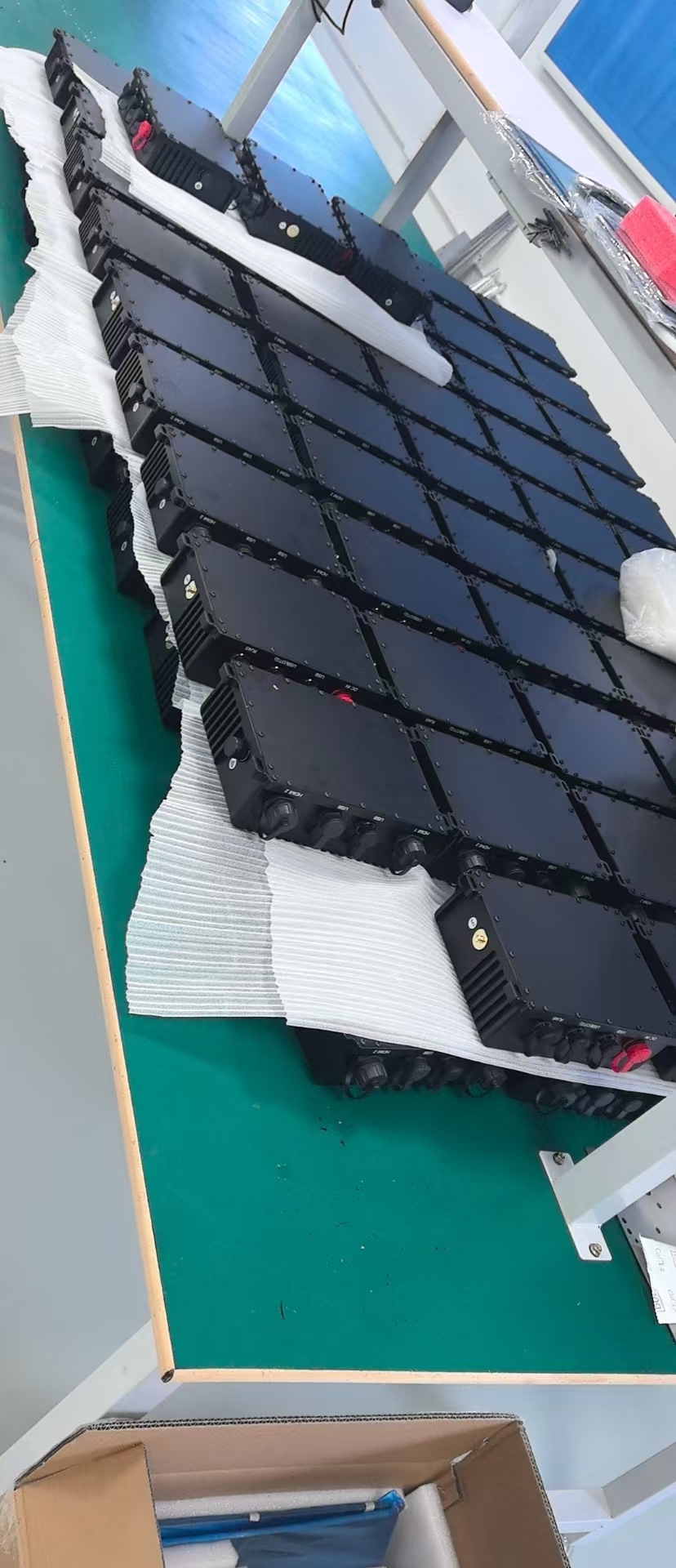

Factory:


Rugged Waterproof Box Computer IP67 industrial Android mini box PC 3


Rugged Waterproof Box Computer IP67 industrial Android mini box PC 4



Rugged Waterproof Box Computer IP67 industrial Android mini box PC 5
