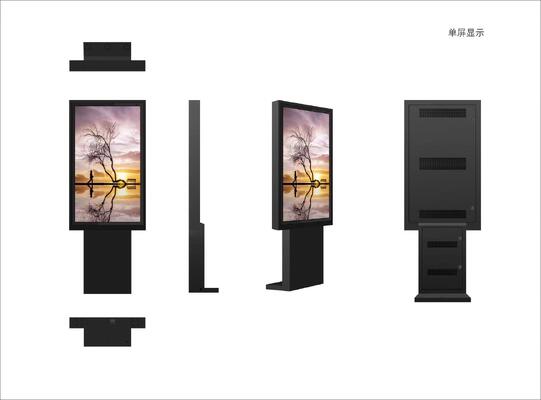

Industrial Grade Outdoor LCD Touchscreen Monitor 55 inches Display High Brightness With Optical Bonding, Floor standing
Product Details
| Input Port | HDMI×1, USB×2, RJ45×1, WIFI×1; Other I/O Optional. | LCD Panel | 55'' LCD Panel |
|---|---|---|---|
| Power Connector | 110-240V, 50/60Hz | ||
| Highlight | Industrial outdoor LCD touchscreen monitor,55 inch high brightness display,Optical bonding floor standing monitor |
||
Product Description
· INTRODUCTION:
55'' High Brightness Outdoor LCD Display
BENEFITS:
· High Brightness LCD Screen with Optical Bonding
LCD backlight brightness 2000-5000nits. Meets the best viewing requirements under direct sunlight. Optical bonding improves display readability, durability, and touch accuracy by eliminating the air gap between the screen layers.
· Intelligent Brightness Control
Automatically adjust the LCD screen brightness according to the ambient light brightness to save energy to the maximum extent.
· Industrial Grade Panel
The LCD panel uses wide temperature LCD. It does not blacken under direct sunlight.
· Polarized Sunglasses Visible
LCD panel uses QWP technology to improve visibility. Wearing polarized sunglasses does not affect vision.
· IP65 Waterproof Fan
Full lamination process is used on the front of the screen. Integrated backlight behind the screen Protection grade IP65
· Industrial Design Ultra-Thin Body
Narrow border ultra-thin design supports horizontal and vertical screens.Fully sealed design supports various interface expansions. The surface meets outdoor protection requirements.
Specification
| Model | ITD55CMODIPW | |
| Panel | Size | 55" |
| Panel Technology | IPS | |
| Aspect Ratio | 16:9 | |
| Resolution | 1920×1080 | |
| Brightness | 2000~5000nits | |
| Contrast Ratio | 1200:1 | |
| Viewing Angle | 178/178 | |
| Surface Treatment | Haze 3% | |
| Lifetime | 50000Hrs | |
| Display Mode | Horizontal/Vertical | |
| Physical Appearance | Color | Black |
| Material | Aluminum,Galvanized Steel Sheet | |
| Surface Treatment | Outdoor Powder Spraying | |
| Outline Dimension | 1282×753× 95.5mm | |
| N.W. | 49kg | |
| Package Dimension | 1400×880× 220mm | |
| G.W. | 59kg | |
| Mounting Hole | VESA1200× 400mm | |
| Operation Environment | Operating Temperature | -20--55℃ |
| Operating Humidity | 10%--90% | |
| IP level | IP65 | |
| Protective Glass | 5mm Tempered Glass (Touchscreen, AG, AR, Anti-UV optional) | |
| Power | Input | AC 110-240V, 50/60Hz |
| Max. Power Consumption | Max. 350W | |
| Mainboard | Processor | ARM Based RK3288/RK3568/RK3576/RK3588, x86 Based Intel Celeron J1900/J6412 or Intel Core i3/i5/i7 optional |
| Interface | HDMI×1, USB×2, RJ45×1, WIFI×1; Other I/O optional. | |
| Optional | 75”, 86” optional(3840×2160, 2000~4000nits, 1200:1, 178/178, etc.) | |
