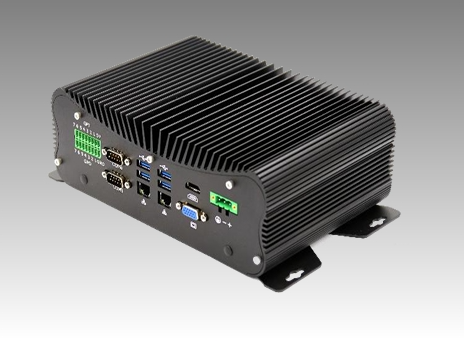

All-Aluminum Industrial Compact Embedded Computer Supports Intel® J6412,N97 & 4th ~ 12th Gen U-Series CoreTM i3/i5/i7 Processors Flexible CPU Options
Product Details
| Processor | Intel 4th–13th Gen. Core I3/i5/i7 CPU | System Memory | The Memory Type Is Determined By The CPU Model. |
|---|---|---|---|
| Storage Temperature | -30℃~70℃ | Operating Temperature | -20℃ To +60℃ |
| Power Supply | DC 9~36V 2-pin PhoenixConnector | ||
| Highlight | All-Aluminum Industrial Embedded Computer,Compact Embedded PC Intel J6412,Industrial PC 4th-12th Gen Processors |
||
Product Description
INTRODUCTION:
Industrial Compact Embedded Computer
FEATURES
■ Supports Intel 4th–13th Gen. Core i3/i5/i7 CPU
■4/5th-DDR3L SODIMM ×1;6-11th-DDR4 SODIMM ×2 ;12/13th-DDR5 SODIMM × 2
■ 6 × COM ports (4 of which support RS-485/RS-442)
■ 2 × Intel i210/i211/i219 Gigabit Ethernet ports (4th 10th Gen), 2 × Intel i225V/i226V 2.5GbE ports (11th 13th Gen)
■ One-key system recovery, watchdog timer, and diskless boot support
■Low-power, fanless design
Specification
| system | Windows® 7/10/11,WES 7/10,LINUX | |
| Processor | Supports Intel 4th–13th Generation Core i3/i5/i7 processors | |
| System RAM |
4th/5th Gen — 1 × DDR3L SODIMM, up to 8GB RAM 6th–11th Gen — 2 × DDR4 SODIMM, up to 32GB RAM (6th–10th Gen); up to 64GB11th Gen) 12th/13th Gen — 2 × DDR5 SODIMM, up to 64GB RAM |
|
| Ethernet | 2 ×1GbE RJ45 Intel i210/i211/i219 (4-10th),2 × 2.5GbE RJ45 Intel i225v/i226v (11-13th) | |
| I/O |
2 × USB 3.0, 4 × USB 2.0 (4th/5th Gen) 4 × USB 3.0, 2 × USB 2.0 (6th–13th Gen) 6 × DB9 COM ports (4 support RS-485/RS-422) 1 × HDMI, 1 × VGA, 1 × PS/2 (keyboard and mouse combo) 14 × GPIO (7 inputs, 7 outputs) 1 × Power Button, 1 × Reset Button, 1 × Clear CMOS Button 1 × 3-pin Phoenix terminal power connector, supporting 9–36V DC input 1 × Headphone jack, 1 × Microphone jack 1 × DIP switch, supporting ATX/AT power-on mode selection 2 × Antenna connectors for Wi-Fi/3G/4G |
|
| Storge | 1 × mSATA, 1 × HDD/SSD bay 1 × M.2 2280 (6th–10th Gen supports SATA/NVMe protocols; 11th–13th Gen supports NVMe only) | |
| Expansions | 1 × Mini-PCIe half-size slot (4th–11th Gen); 1 × M.2 2230 slot (12th/13th Gen), supporting WiFi/Bluetooth 1 × Mini-PCIe full-size slot with SIM card slot, supporting 3G/4G modules | |
| Power | DC 9~36V 2-pin PhoenixConnector | |
| Mechanical | ||
| Construction | Die-Casting Aluminum Chassis | |
| Mounting | Supports Desktop, Wall-mounting, Embedded-mounting | |
| Dimension | 249 × 150 × 86 mm | |
| Net Weight | 2.2 Kg | |
| Working Environment | ||
| Storage Temp. Range |
-30℃ to +70℃ | |
| Working Temp. Range | -20℃ to +60℃ | |
| Storage Humidity | 10%~90% @30℃(Non-condensing) |
