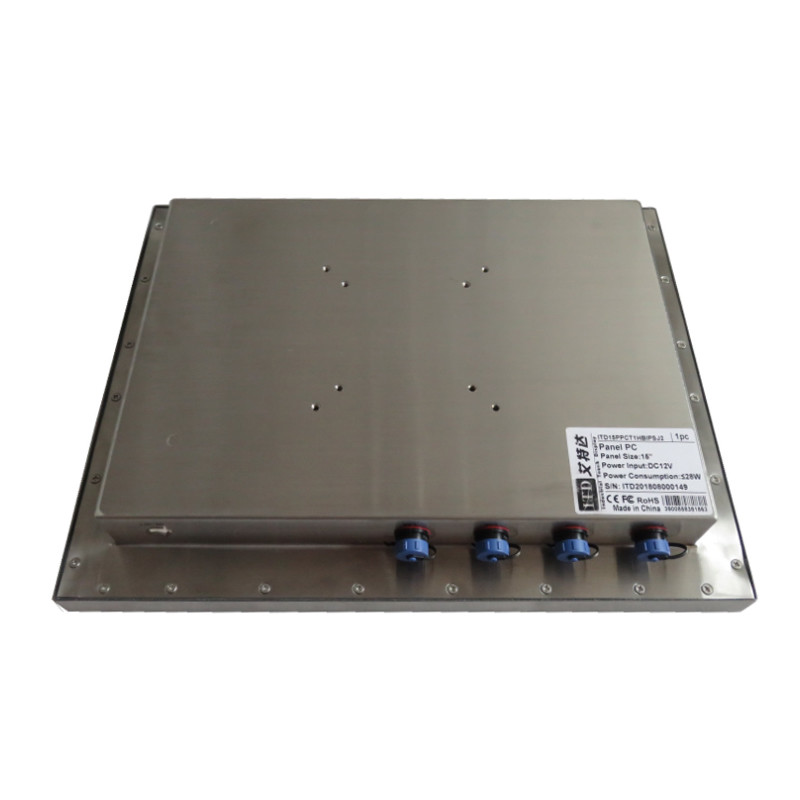

Marine Grade Rugged Panel PC 15'' Full IP65 Waterproof Outdoor Sunlight Readable

Place of Origin China
Brand Name ITD
Certification CE, FCC, RoHS
Model Number ITD**PPCT1IPSJ1
Minimum Order Quantity 1pcs
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month
Product Details
TFT Panel 15 Inch 1024*768 1000nits Or 1500nits Waterproof Cables USB Cables, RJ45 Cable, Power Cable
Housing Type VESA Mount/Panel Mount Defaul Waterproof Connectors 2*USB, 1*DC, 1*RJ45 COM Port Optional
Operating Temperature -10~60℃(-20~70℃ Optional) Brightness Control 0~100% Optional
MTBF 50000H Failure Rate 0.3%
Warranty 1 Year For TFT Panel And 2 Years For Others
High Light

rugged industrial computers

,

rugged industrial pc

Leave a Message
Product Description

15 inch Marine Grade Full IP65 Waterproof Outdoor Sunlight Readable Touch Panel PC

The ITD Full IP65/IP66 high brightness panel PCs series is an Intel® Celeron™ Quad Core Processor J1900 2.0 GHz based that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, biotechnology process manufacturing and outdoor application. This waterproof PCs series has a wide range of sizes option, with complete stainless steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.maceutical applications in harsh environment.



ITD15PPCG1HBIPSJ2

15” (4:3)

211.2(W) x 158.4(H)

700:1

1024 x 768

1000nits

80/80/60/80

LED





SystemCPUIntel® Bay Trail Celeron Quad Core J1900 2.0GHz Processor
BIOSAward BIOS 4/8Mbit SPI Flash ROM
ChipsetIntel® Bay Trail SOC CPU Integrated
Memory1 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
Graphic ChipsetCPU integrated graphics HD and support 1080p
Storage64GB SSD or 500GB HDD
I/OSerial Ports1x COM (Optional)
USB Ports1 x USB 2.0(Waterproof Connector and Cable)
Power Port1 x 12V DC Jack(Waterproof Connector and Cable)
LAN1 x 10/100/1000Mbps Ethernet(Waterproof Connector and Cable)
WIFIBuilt-in, 802.11a/b/g/h (optional)
Touch ScreenTypeProjected Capacitive Touch Screen with 10 independent touch points
Response Time≤5ms
InterfaceUSB or COM, default to USB
Transparency≥85%
Lifetime≥50,000,000 times/click
OS SupportWindows CE/XP/7/8/10, Linux, Mac, Android
Mounting75 x 75/100 x 100mm VESA Mount
Operation/Power SavingTBA
Operating Temperature-10~60℃ (-20~70℃ Optional)
Storage Temperature-20~70℃
Operation Humidity10%~90%(No Condensation)
OS SupportWindows 7/ Windows XP/ Windows 8/ Linux
Order Information1000nits Stainless Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1HBIPSJ2
1000nits Stainless Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1HBIPSJ2
1000nits Stainless Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5HBIPSJ2
1000nits Stainless Steel Full IP67 Panel PC J1900 with Tempered Glass: ITD**PPCG1HBIPSJ7
1000nits Stainless Steel Full IP67 Panel PC J1900 with Resistive Touch: ITD**PPCT1HBIPSJ7
1000nits Stainless Steel Full IP67 Panel PC J1900 with PCAP Touch: ITD**PPCT5HBIPSJ7
1000nits Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1HBIPAJ2
1000nits Aluminum Alloy Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1HBIPAJ12
1000nits Aluminum Alloy Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5HBIPAJ2
1000nits Steel Full IP65/IP66 Panel PC J1900 with Tempered Glass: ITD**PPCG1HBIPXJ2
1000nits Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1HBIPXJ2
1000nits Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5HBIPXJ2
1500nits Stainless Steel Full IP65/IP66 Panel PC J1900 with Resistive Touch: ITD**PPCT1HBIPSJ1
1500nits Stainless Steel Full IP65/IP66 Panel PC J1900 with PCAP Touch: ITD**PPCT5HBIPSJ1

FEATURES
▪ Brushed stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
▪ Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
▪ Rugged Stainless steel enclosure design with high EMC and IP65/IP66 NEMA 4/4X protection
▪ Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA
▪ Provides improved power efficiency and reduced consumption
▪ CE, FCC, RoHS Compliance

OPTIONALS
•SDD 64GB,128GB up to 526GB
•HDD 500GB up to 1TB
•High brightness, sunlight readable
•Resistive touch screen, PCAP touch screen
•Customization for other inches
•Aluminum alloy housing, Steel housing
•Full IP67
