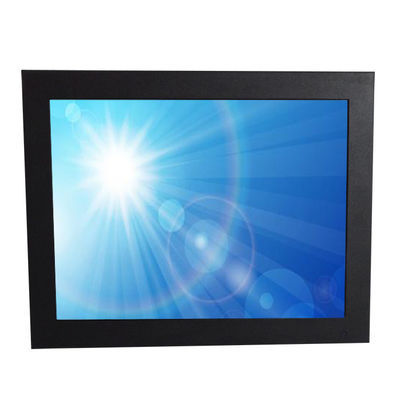

15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xHousing Material | Steel Chassis | Color | Black Or Silver |
---|---|---|---|
Housing Type | Chassis Mount, VESA Mount | MTBF | 50000Hours |
Operating Temperature | -10~60℃(-20~70℃ Optional) | Operating Humidity | 10%-90% (Non Condensing) |
24/7/365 Use | Supported | ||
Highlight | sunlight readable display,sun readable lcd display |
15" high brightness sunlight readable touchscreen chassis panel PC 1000nits LED backlight
ITD industrial chassis sunlight readable panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD high brightness chassis panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI for indoor, semi-outdoor or outdoor applications.
BENEFITES
- Exceptional quality and highly engineered sunlight readable industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- All steel construction designed for harsh & industrial environments
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like resistive, IR, SAW, PCAP
- High brightness from 1000nits to 1500nits optional
- Long lasting product cycle for continuity thru all phases of project
Chassis High Brightness Panel PC | |||
Model Name | ITD15PPCG1HBL** | ||
IP Rating | IP65 Front Panel Optional | ||
PC Systems Options | |||
ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based | |
CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 | |
Chipset: N/A | Chipset: Intel® NM10 Express | Chipset: Intel® HD Graphics, Support 1080p | |
Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) | |
HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G | |
1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI | |
1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 | |
1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) | |
1×LAN | 1×LAN | 1×LAN | |
1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In | |
Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe | |
LCD Panel | |||
Screen Diagonal (Inch) | 15” | ||
Display Active Screen Size (cm) | 304.13(H)×228.10(V) | ||
Aspect Ratio | 4:3 | ||
Physical Resolution | 1024×768 | ||
Maximum Resolution Supported | 1920×1080 | ||
Colors | 16.2M | ||
Brightness (cd/m²) | 1000(1500 Optional) | ||
Contrast Ratio | 700:1 | ||
View Angels | 70/70/60/60 | ||
Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime | ||
Touch Panel | |||
Touch Options | Resistive, IR, PCAP, SAW, | ||
Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | ||
Operation
|
|||
Operating Temperature Range | -10~60°C (-20~70°C Optional) | ||
Humidity Range (RH) | 10-90% | ||
24/7/365 Use | Supported | ||
Power | |||
Power Indicator | Green LED | ||
Power Input | DC 12V | ||
Power Consumption | 30W | ||
Order Information | |||
15”1000nits Chassis Panel PC with Resistive Touch, J1900 | ITD15PPCT1HBLJ1 | ||
15”1000nits Chassis Panel PC with PCAP Touch, J1900 | ITD15PPCT5HBLJ1 | ||
15”1000nits Chassis Panel PC with IR Touch, J1900 | ITD15PPCT2HBLJ1 | ||
15”1000nits Chassis Panel PC with Tempered Glass, J1900 | ITD15PPCG1HBLJ1 | ||
15”1000nits Chassis Panel PC with Resistive Touch, i5 | ITD15PPCT1HBLI5 | ||
15”1000nits Chassis Panel PC with PCAP Touch, i5 | ITD15PPCT5HBLI5 | ||
15”1000nits Chassis Panel PC with IR Touch, i5 | ITD15PPCT2HBLJ1 | ||
15”1000nits Chassis Panel PC with Tempered Glass, i5 | ITD15PPCG1HBLI5 |
APPLICATION
