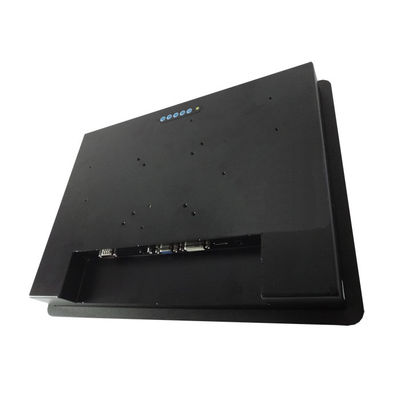

15" Rugged Industrial Grade Lcd Monitors , Panel Mount Touch Screen Monitor
15" Rugged Industrial Grade Lcd Monitors , Panel Mount Touch Screen Monitor
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: ITD
Certification: CE, FCC, RoHS
Model Number: ITD15PMT101
High Light:

panel mount lcd monitor


industrial touch monitor

Payment & Shipping Terms
Packaging Details: 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time: 5-15 Business Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000PCS/Month
Housing Material: Steel Chassis, Aluminum Front Bezel
Name: Industrial Lcd Panel
Housing Type: Panel/Embedded Mount, VESA Mounting
MTBF: 50000Hours
Operating Temperature: -10~60℃(-20~70℃ Optional)
Operating Humidity: 10%-90% (Non Condensing)
Product Description

15" rugged panel mount touchscreen LCD monitor display IP65 front, embedded mount, vandal proof


ITD industrial panel mount LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 6mm thickness and highly-durable glass front surface provide the durability needed for demanding industrial environments. Industrial panel mount monitors come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, industrial analog and digital driver board, low power consumption, and scratch-resistant capabilities are ideal for system integrators, kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine applications.




- Exceptional quality and highly engineered industrial monitors

- Optional touchscreens like resistive, IR, SAW, PCAP

- All steel construction designed for harsh and industrial environments

- Easy-to-install embedded/panel mounting with clamps

- Robust design with aluminum NEMA 4/ IP65 front panel

- Accuracy in high-use applications

- Long lasting product cycle for continuity thru all phases of project



Panel Mount LCD Monitor


Model Name ITD15PMN101
IP Rating N/A

LCD Panel


Screen Diagonal (Inch) 15”
Display Active Screen Size (cm) 304.13(H)×228.10(V)
Aspect Ratio 4:3
Physical Resolution 1024×768
Maximum Resolution Supported 1920×1080
Colors 16.2M
Brightness (cd/m²) 250
Contrast Ratio 700:1
View Angels 80/80/60/80
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel


Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Input / Output


Video Input 1 × VGA
1 × DVI-I
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB
Power Connector 1 × DC2.0



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported



Power Indicator Green LED
Power Input DC 12V
Power Consumption 20W

Order Information


15”Panel Mount LCD Monitor with Resistive Touch ITD15PMT101
15”Panel Mount LCD Monitor with IR Touch ITD15PMT201
15”Panel Mount LCD Monitor with SAW Touch ITD15PMT301
15”Panel Mount LCD Monitor with PCAP Touch ITD15PMT501
15”Panel Mount LCD Monitor with Tempered Glass ITD15PMG101
