Open frame monitor 19" high brightness sunlight readable LCD monitor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brightness | 1000 Cd/m2 | Physical Resolution | 1280X1024 |
|---|---|---|---|
| MTBF | 50000Hours | Operating Temperature | -10~60℃(-20~70℃ Optional) |
| Operating Humidity | 10%-90% (Non Condensing) | 24/7/365 Use | Supported |
| Touch Options | Resistive, IR, PCAP, SAW | ||
| High Light | sunlight readable display,sun readable lcd display |
||
Product Description

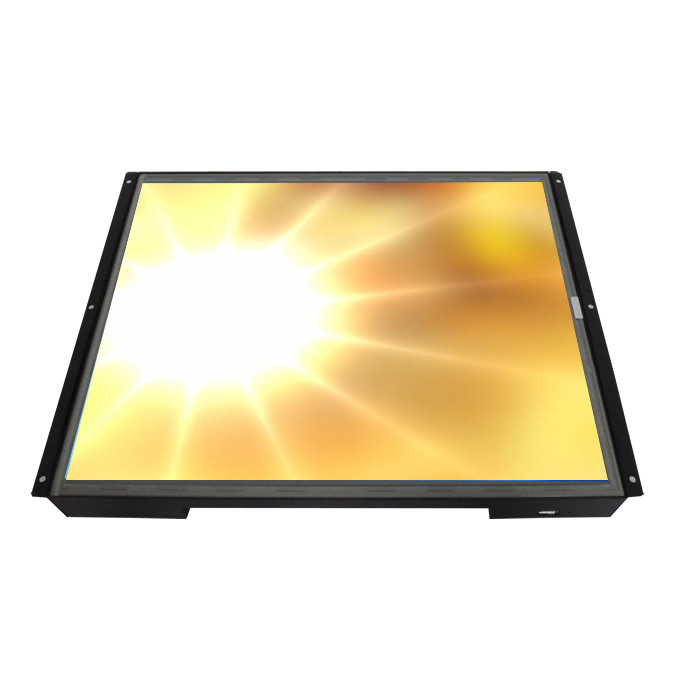

Open frame monitor 19" high brightness sunlight readable LCD monitor
ITD industrial open frame sunlight readable LCD displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application. ITD open frame LCD monitors are packaged in a steel enclosure and durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder for indoor, semi-outdoor and outdoor applications.
Specifications:
|
Open Frame High Brightness LCD Monitor
|
|
| Model Name | ITD19OFN1HB02 |
| IP Rating | N/A |
|
LCD Panel
|
|
| Screen Diagonal (Inch/cm) | 19” |
| Display Active Screen Size (mm) | 376.3(H) ×301.1(V) |
| Aspect Ratio | 4:3 |
| Physical Resolution | 1280×1024 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 1000 cd/m² |
| Contrast Ratio | 800:1 |
| View Angels | 85/85/80/80 |
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime |
|
Touch Panel
|
|
| Touch Options | Resistive, IR, PCAP, SAW |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
|
Input / Output
|
|
| Video Input | 1 × VGA |
| 1 × DVI-I | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| Touch Connector | 1 × USB |
| Power Connector | 1 × DC2.0 |
|
Operation
|
|
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
|
Power
|
|
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 33W |
|
Order Information
|
|
| 19”1000nits Open Frame LCD Monitor with Resistive Touch | ITD19OFT1HB02 |
| 19”1000nits Open Frame LCD Monitor with IR Touch | ITD19OFT2HB02 |
| 19”1000nits Open Frame LCD Monitor with SAW Touch | ITD19OFT3HB02 |
| 19”1000nits Open Frame LCD Monitor with PCAP Touch | ITD19OFT5HB02 |
| 19”1000nits Open Frame LCD Monitor with Tempered Glass | ITD19OFG1HB02 |
| 19”1500nits Open Frame LCD Monitor with Resistive Touch | ITD19OFT1HB01 |
| 19”1500nits Open Frame LCD Monitor with IR Touch | ITD19OFT2HB01 |
| 19”1500nits Open Frame LCD Monitor with SAW Touch | ITD19OFT3HB01 |
| 19”1500nits Open Frame LCD Monitor with PCAP Touch | ITD19OFT5HB01 |
| 19”1500nits Open Frame LCD Monitor with Tempered Glass | ITD19OFG1HB01 |
