Rugged Steel Sunlight Readable LCD Monitor For Harsh Environments , AC100-240V

Place of Origin China
Brand Name ITD/OEM
Certification CE,ROHS,FCC
Model Number ITD55OFN1HB01
Minimum Order Quantity 1PCS
Price TBA
Packaging Details Foam,gift box,master carton,woonden case,pallet
Delivery Time 10-12 work days
Payment Terms T/T,Western Union,Paypal
Supply Ability 10000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screen Diagonal 55 Inch Physical Resolution 1920X1080
Brightness 1500 Cd/m² View Angels 89/89/89/89
Operating Temperature Range -10~60°C (-20~70°C Optional) Video Input VGA/DVI/HDMI
Touch Options Resistive, IR, PCAP, SAW, Touch Foil Touch Interface USB(RS232 Optional)
Power Input AC100-240V
High Light

sun readable lcd display

,

daylight readable lcd monitor

Leave a Message
Product Description

rugged steel industrial monitor 55" sunlight readable lcd for harsh environments



Specifications:



Open Frame High Brightness LCD Monitor



Model Name ITD55OFN1HB02
IP Rating N/A

LCD Panel



Screen Diagonal (Inch/cm) 55”
Display Active Screen Size (mm) 1209.6(H) ×680.4(V)
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 1500 cd/m²
Contrast Ratio 4000:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime

Touch Panel



Touch Options Resistive, IR, PCAP, SAW, Touch Foil
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Input / Output



Video Input 1 × VGA
1 × DVI-I
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB

Operation



Operating Temperature Range 0~50°C
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power



Power Indicator Green LED
Power Input Internal Power Supply, AC100V~240V
Power Consumption 290W

Order Information



55”1500nits Open Frame LCD Monitor with Resistive Touch ITD55OFT1HB01
55”1500nits Open Frame LCD Monitor with IR Touch ITD55OFT2HB01
55”1500nits Open Frame LCD Monitor with Touch Foil ITD55OFT7HB01
55”1500nits Open Frame LCD Monitor with PCAP Touch ITD55OFT5HHB01
55”1500nits Open Frame LCD Monitor with Tempered Glass ITD55OFG1HB01
55”2000nits Open Frame LCD Monitor with Resistive Touch ITD55OFT1HB03
55”2000nits Open Frame LCD Monitor with IR Touch ITD55OFT2HB03
55”2000nits Open Frame LCD Monitor with Touch Foil ITD55OFT7HB03
55”2000nits Open Frame LCD Monitor with PCAP Touch ITD55OFT5HB03
55”2000nits Open Frame LCD Monitor with Tempered Glass ITD55OFG1HB03







ITD sunlight readable LCD monitors and displays are used in locations where direct and indirect (reflected) sunlight or high ambient light conditions are present. Brightness levels range from 700 to 3000 nits (depending on LCD panel) which provides the clarity and brilliance your application requires without screen washout or glare.



FEATURES

  • Exceptional quality and highly engineered industrial monitors
  • Optional touchscreens like resistive, IR, SAW, PCAP
  • All steel construction designed for harsh and industrial environments
  • Easy-to-install cabinet and open frame rear-mount display
  • Multiple mounting options (75/100mm VESA mount and side brackets)
  • High brightness from 1000nits to 1500nits optional
  • Long lasting product cycle for continuity thru all phases of project



Product Display:

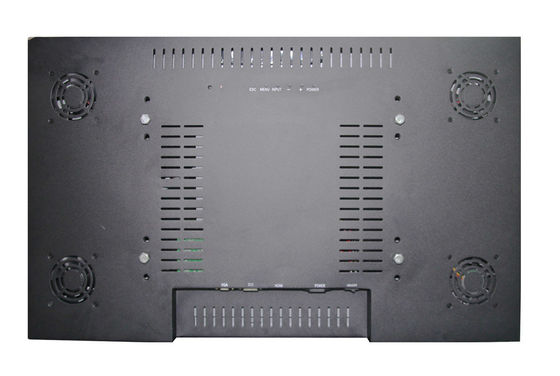

Rugged Steel Sunlight Readable LCD Monitor For Harsh Environments , AC100-240V 0Rugged Steel Sunlight Readable LCD Monitor For Harsh Environments , AC100-240V 1





Application:





Rugged Steel Sunlight Readable LCD Monitor For Harsh Environments , AC100-240V 2
