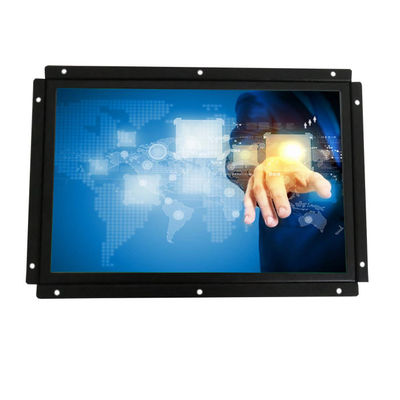

10.1 Inch Industrial LCD Panel 1920×1080 With Capacitive/ Resistive Touch

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD101OFN1M1
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Steel Chassis Color Black Or Silver
Housing Type Open Frame Mount, VESA Mounting MTBF 50000Hours
Operating Temperature -10~60℃(-20~70℃ Optional) Operating Humidity 10%-90% (Non Condensing)
24/7/365 Use Supported Resolution 1280*800
Brightness 250nits Aspect Ratio 16:10
View Angels 160/160
High Light

industrial open frame monitor

,

open frame touch screen monitor

Leave a Message
Product Description

10.1 inch wide screen open frame LCD touchscreen monitor displays with capacitive touch, resistive touch optional



ITD can customize an open frame LCD monitors to almost any specification. Whether it is a minor modification to an existing design, or by utilizing our extensive experience in the industry, we can almost always build what you need. We will always choose a long lasting product cycle-enclosure that allows future generation panels to be phased-in without external changes..



FEATURES

- Compliant with major safety regulations

- Perfect for kiosk, cabinets, equipment and instrument drop-in designs

- Superior viewing angles, contrast ratio and brightness

- Robust CNC milled open frame enclosure

- 24/7/365 Constant Running Supported

- Unique design accounts for heat ventilation

- Durable Touchscreen options

- DVI, Composite and BNC video input options



Open Frame LCD Monitor



Model Name ITD101OFN1M1
IP Rating N/A

LCD Panel



Screen Diagonal (Inch/cm) 10.1”
Display Active Screen Size (mm) 211.2(H) ×140.5(V)
Aspect Ratio 16:10
Physical Resolution 1280×800
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 250nits
Contrast Ratio 500:1
View Angels 80/80/80/80
Backlight/Backlight Lifetime LED Backlight with 50000 Hours’ Lifetime

Touch Panel



Touch Options Resistive, IR, SAW, PCAP
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Input / Output



Video Input 1 × VGA
1 × DVI-I
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB
Power Connector 1 × DC2.0

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power



Power Indicator Green LED
Power Input DC 12V
Power Consumption 10W

Order Information



10.1”Open Frame LCD Monitor with Resistive Touch ITD101OFT1M1
