High Resolution Multi Touch Panel PC , Industrial All In One PC 12.1” 33.9W Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CPU | Intel J1900/i3/i5/i7/Android | Active Are | 246.0(H)×184.5(V)mm |
|---|---|---|---|
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Operating Humidity | 10%-90% (Non Condensing) |
| 24/7/365 Use | Supported | Resolution | 800x600 |
| View Angels | 80/80/70/70 | Brightness | 300 Nits |
| High Light | touch display pc,touch monitor pc |
||
Product Description

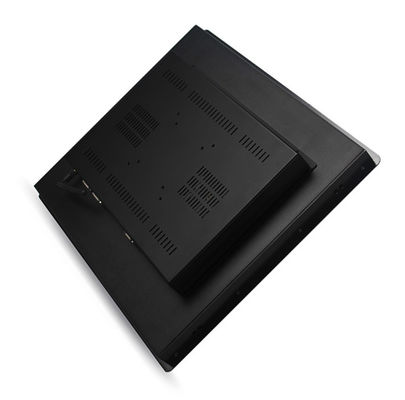

12.1" panel mounted touchscreen industrial PC flat aluminum bezel
Specifications:
|
Flat Bezel Industrial Panel PC
|
|||
| Model Name | ITD12PPCG1X** | ||
| IP Rating | IP65 Front Panel | ||
|
PC Systems Options
|
|||
| ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based | |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 | |
| Chipset: N/A | Chipset: Intel® HD Graphics, Support 1080p | Chipset: Intel® HD Graphics, Support 1080p | |
| Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) | |
| HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G | |
| 1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI | |
| 1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 | |
| 1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) | |
| 1×LAN | 1×LAN | 1×LAN | |
| 1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In | |
| Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe | |
|
LCD Panel
|
|||
| Screen Diagonal (Inch) | 12.1” | ||
| Display Active Screen Size (cm) | 246.0(H)×184.5(V) | ||
| Aspect Ratio | 4:3 | ||
| Physical Resolution | 800×600 | ||
| Maximum Resolution Supported | 1920×768 | ||
| Colors | 16.7M | ||
| Brightness (cd/m²) | 300 | ||
| Contrast Ratio | 600:1 | ||
| View Angels | 80/80/70/70 | ||
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'LifetimeV | ||
|
Touch Panel
|
|||
| Touch Options | Resistive, IR, PCAP, SAW | ||
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | ||
|
Operation
|
|||
| Operating Temperature Range | -10~60°C (-20~70°C Optional) | ||
| Humidity Range (RH) | 10-90% | ||
| 24/7/365 Use | Supported | ||
|
Power
|
|||
| Power Indicator | Green LED | ||
| Power Input | DC 12V | ||
| Power Consumption | 33.9W | ||
|
Order Information
|
|||
| 12.1”Panel Mount Panel PC with Resistive Touch, J1900 | ITD12PPCT1XJ1 | ||
| 12.1”Panel Mount Panel PC with PCAP Touch, J1900 | ITD12PPCT5XJ1 | ||
| 12.1”Panel Mount Panel PC with Tempered Glass, J1900 | ITD12PPCG1XJ1 | ||
| 12.1”Panel Mount Panel PC with Resistive Touch, i5 | ITD12PPCT1XI5 | ||
| 12.1”Panel Mount Panel PC with PCAP Touch, i5 | ITD12PPCT5XI5 | ||
| 12.1”Panel Mount Panel PC with Tempered Glass, i5 | ITD12PPCG1XI5 | ||
ITD industrial panel mount panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Industrial panel mount panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Edge to edge design with true flat surface, easy to clean
- Optional touchscreens like resistive, PCAP
- All steel construction designed for harsh and industrial environments
- Easy-to-install embedded/panel mounting with clamps
- Robust design with aluminum NEMA 4/ IP65 front panel
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
Product Display:
