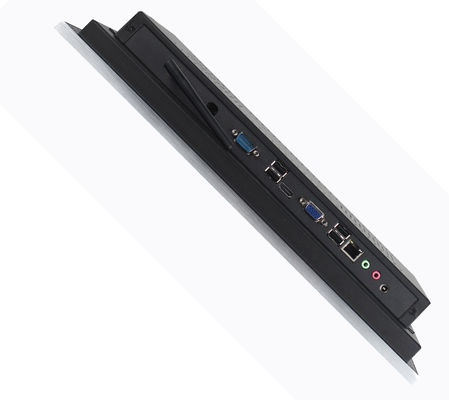

1920×1080 Industrial Touch Screen Computer Flat Bezel 300 Nits Brightness

Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD173PPCG1X**
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Active Are 344.232(H)×193.536(V) Mm Touchscreen Resistive, PCAP
Power Input DC 12V Resolution 1920×1080
View Angels 80/80/80/80 Brightness 300 Nits
High Light

touch display pc

,

touch panel computer

Leave a Message
Product Description

format 16:9 industrial PC 17.3" flat bezel touch panel PC



Specifications:



Flat Bezel Industrial Panel PC



Model Name ITD156PPCG1X**
IP Rating IP65 Front Panel

PC Systems Options



ARM Android Based RK3288(RK3368 optional) X86 Windows Based X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel® Celeron J1900 CPU: Intel Core i3/i5/i7
Chipset: N/A Chipset: Intel® HD Graphics, Support 1080p Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G Memory: 2GB(Max. 8GB) Memory: 2GB(Max. 8GB)
HDD/SSD: 8G HDD/SSD:500G/64G HDD/SSD:500G/64G
1×HDMI 1×VGA, 1×HDMI 1×VGA, 1×HDMI
1×USB 2.0 2×USB 2.0, 2×USB3.0 2×USB 2.0, 2×USB3.0
1×mini-SD slot 1×COM(RS232/422/485) 1×COM(RS232/422/485)
1×LAN 1×LAN 1×LAN
1×Audio Out 1×Audio Out, 1×MIC In 1×Audio Out, 1×MIC In
Expansion: SSD Expansion: USB, COM, Mini-PCIe Expansion: USB, COM, Mini-PCIe

LCD Panel



Screen Diagonal (Inch) 15.6”
Display Active Screen Size (cm) 344.232(H)×193.536(V)
Aspect Ratio 16:9
Physical Resolution 1920×1080
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 300
Contrast Ratio 500:1
View Angels 80/80/80/80
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel



Touch Options Resistive, IR, PCAP, SAW
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Operation



Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power



Power Indicator Green LED
Power Input DC 12V
Power Consumption 20.25W

Order Information



17.3”Panel Mount Panel PC with Resistive Touch, J1900 ITD173PPCT1XJ1
17.3”Panel Mount Panel PC with PCAP Touch, J1900 ITD173PPCT5XJ1
17.3”Panel Mount Panel PC with Tempered Glass, J1900 ITD173PPCG1XJ1
17.3”Panel Mount Panel PC with Resistive Touch, i5 ITD173PPCT1XI5
17.3”Panel Mount Panel PC with PCAP Touch, i5 ITD173PPCT5XI5
17.3”Panel Mount Panel PC with Tempered Glass, i5 ITD173PPCG1XI5





The ITD all-in-one Embedded Panel PCs with x86 open platform and preinstalled Windows Embedded operating systems enable fast and economical deployment of improved HMI systems for operator control and monitoring applications. The Celeron J1900 processor was produced by Intel as a high-powered chip that would work in a wide range of thermal conditions, making it a highly desirable solution for industrial control applications.



FEATURES

- Supports Intel Celeron CPU up to 2.0 GHz

- Low power consumption and economical solution

- Compact size and high performance

- High speed Giga LAN

- On-board IDE interface

- High precision touchscreen

- Industry level of durability against dust and powerful jetting IP65 / NEMA 4

















APPLICATION



1920×1080 Industrial Touch Screen Computer Flat Bezel 300 Nits Brightness 0
